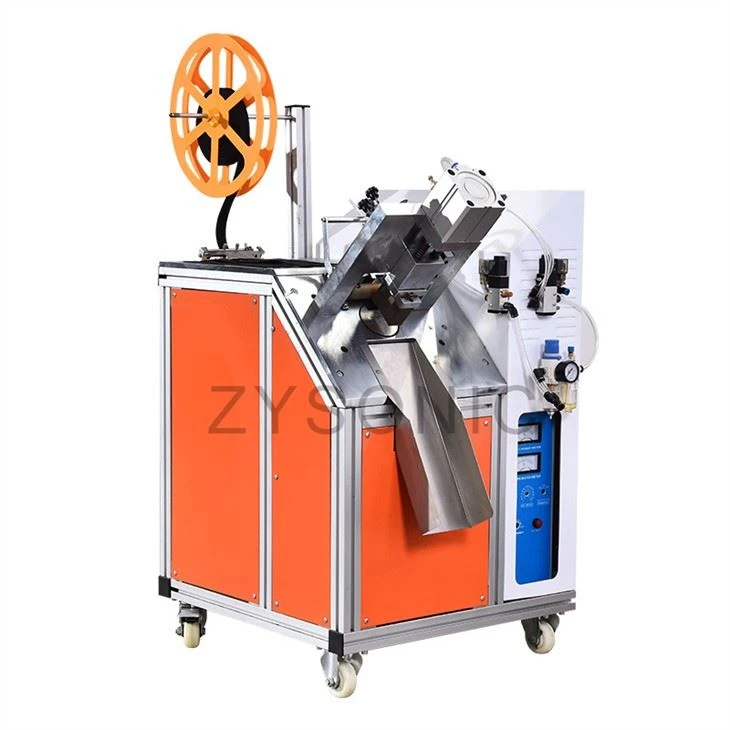

Working principle of ultrasonic belt cutting machine

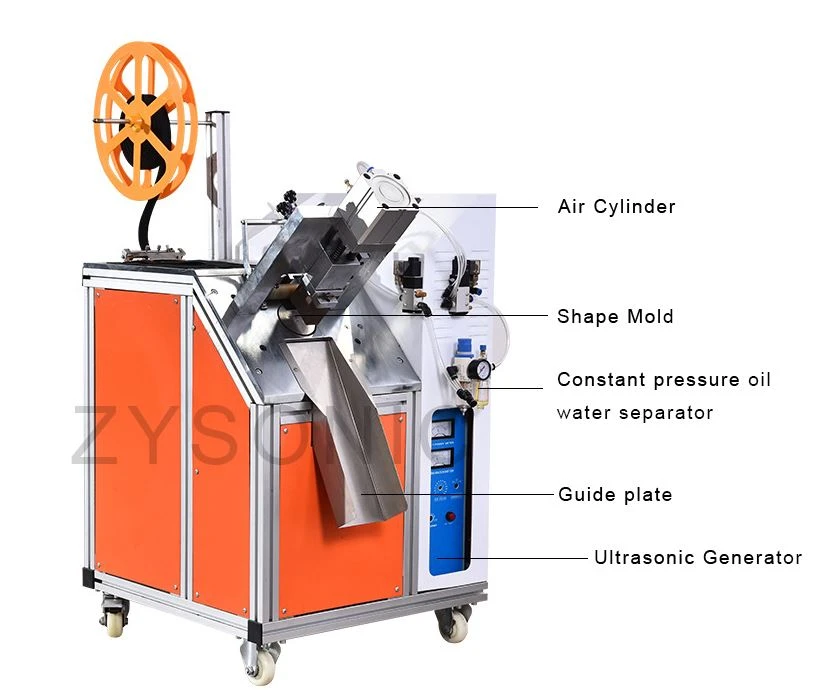

Ultrasonic shearing machine (ultrasonic belt cutting machine) is a combination of ultrasonic fusion technology and traditional shearing. When the ultrasonic generator works, the ultrasonic energy is transmitted to the welding head through the ultrasonic transducer, and violent vibration friction is generated with the cutter die, so as to achieve the effect of shearing. The shearing product has the advantages of more beautiful, more firm, more efficient and fast production efficiency.
Technical parameters of ultrasonic belt cutter
Model: rt-80
Power supply: ac220v-240v / 50-60Hz
Power: 2200W
Frequency: 18khz
Pressure: 0.6-0.8mps
Type: ultrasonic shear
Weight: 158kg
Size: 980 mm × 800mm × 1250mm l × w × h
Characteristics of ultrasonic double knife belt cutting machine
1) The function of ultrasonic double knife belt cutting machine is powerful: 6 sets of programs can be switched at will, 6 sets of programs are --- 1, single cutting fixed length function; 2. Single cut color code sensing function; 3. Double knife cutting length function; 4. Double knife color code sensing function; 5. The length of the first knife is fixed, and the color code sensing function of the second knife. 6. Color code induction of the first knife and length setting function of the second knife. The main advantages of ultrasonic double knife belt cutting machine: it can cut several shapes at the same time, and realize cutting trapezoid without waste.
2) Using ultrasonic cutting, the incision is complete and beautiful, the cutting edge is neat and smooth, no rough edge, no loose edge, and the cutting effect is excellent.
3) RT series transducer, Swedish high carbon steel mold, German generator, strong power, good stability
4) The head is vertical, the pressure is balanced and stable, and the shear stability is improved.

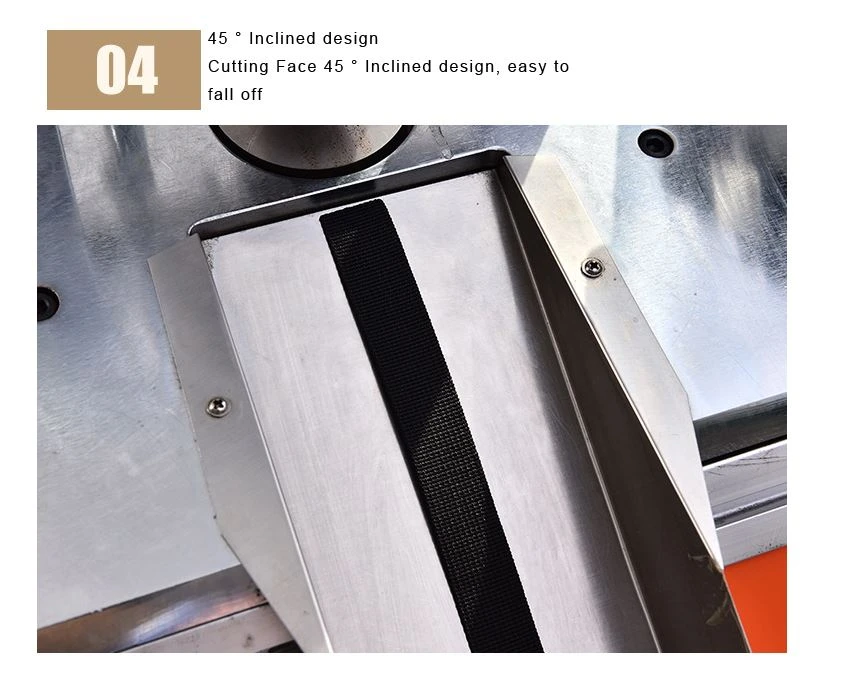

5) The cutting face is 45 degree inclined, which is convenient for the product to fall off.

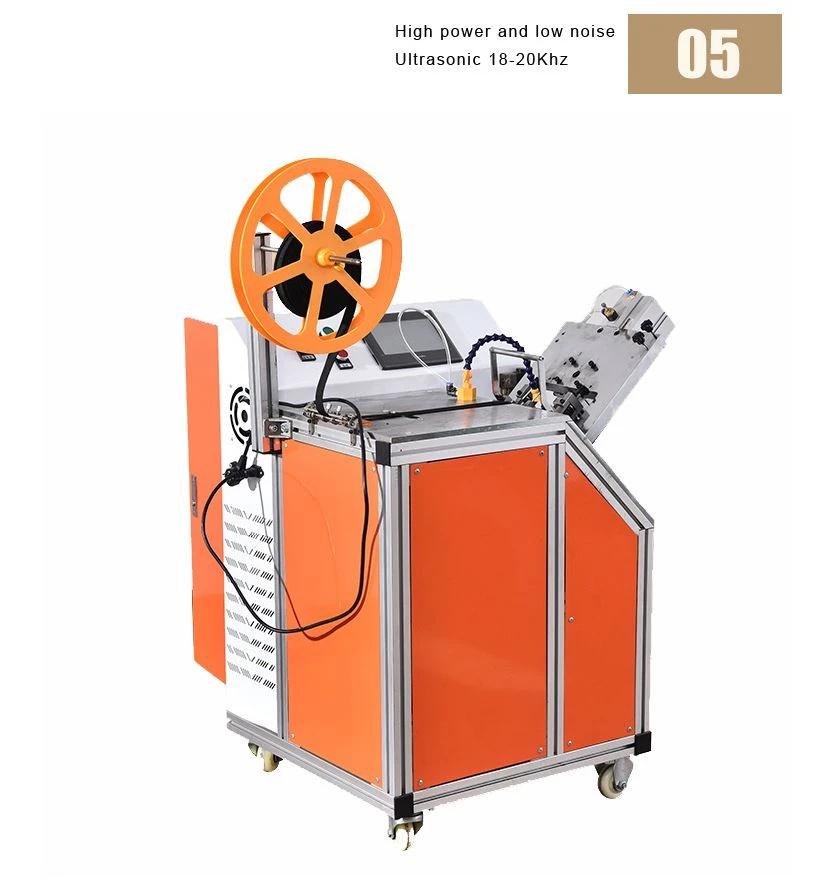

6) The ultrasonic frequency is 18khz, with high power and low noise.
7) The length and speed can be adjusted arbitrarily.

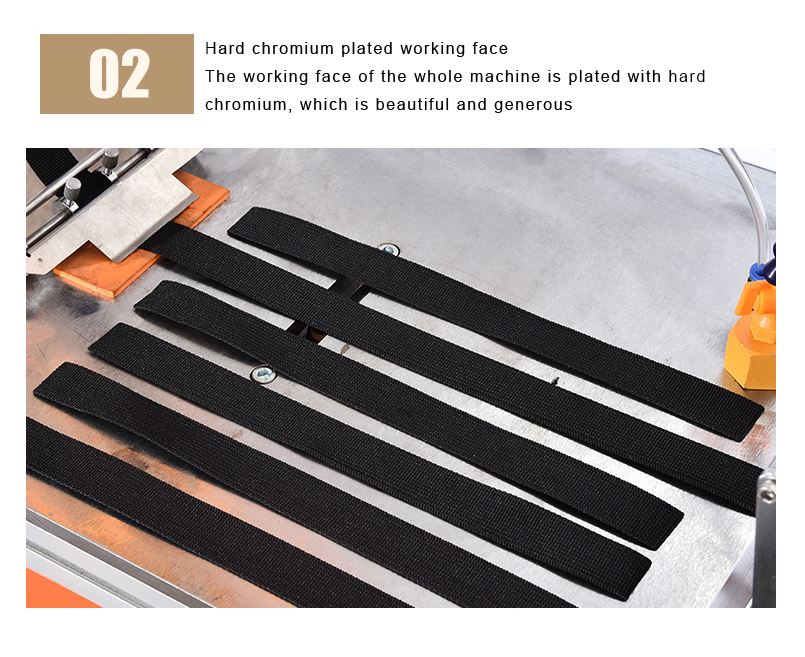

8) The working face of the whole machine is plated with hard chromium, beautiful and generous!
9) The turret is designed to rotate, and the cutter angle can be adjusted at will.

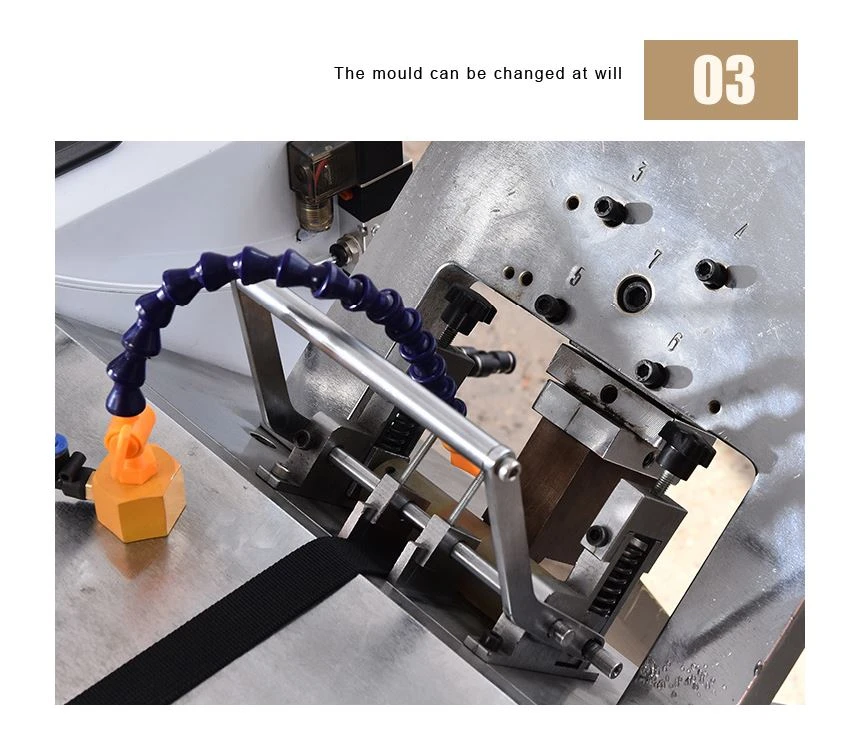

10) The mould can be changed at will, and the mould installation is simple and convenient.
11) The whole machine has exquisite structure, reasonable design and beautiful appearance.
12) It is mainly used for cutting ribbon, ribbon, thread belt, strip belt, safety belt, straight knife, oblique knife, swallow tail and other shapes;
Working characteristics of ultrasonic cutting machine
Fast - up to 150 times per minute.
Intuitive - PLC touch screen display.
Quality: automatic edge sealing, no scorch, no blackening, no flash.
Economy: low energy consumption, automatic cutting, labor saving, one person can operate multiple machines.
work environment
1. The power supply must be AC220 -- 240V and safely grounded
2. Suitable for working in minus 20 ℃ to 40 ℃.
2. The machine should be placed in a dry, ventilated and well lit place
3. There is no corrosion at the place where the machine is placed
