Change the 220v/110v to high frequency, High voltage electricity, that makes the converter creating the high frequency vibration.



What is Ultrasonic Generator





Ultrasonic generator is a kind of equipment that converts the mains power into the corresponding high-frequency AC power of the transducer, to drive the transducer to work. It is an important part of high-power ultrasonic system.



Features of Ultrasonic Generator


Frequency Fine-Tuning

The frequency is adjusted so that the ultrasonic transducer always works at its optimum state, and the efficiency is maximized, and the adjustment range is 2%.

Automatic Follow-Up

Once the device has been initially set up, it can be operated continuously without the need to adjust the generator.

Amplitude Control

When the load changes during the operation of the transducer, the drive characteristics can be automatically adjusted to ensure a stable amplitude of the tool head.

System Protection

When the system works in an unsuitable operating environment, the generator will stop working and display an alarm to protect the device from damage.



Parts of Ultrasonic Generator

Power Supply
Provides the necessary electrical energy to drive the system. It converts AC mains electricity into the DC voltage required by the electronic circuits.



Driver Circuit (Amplifier)
Amplifies the low-power electrical signal from the control unit to a level that can drive the transducer. The driver circuit matches the impedance of the transducer to optimize energy transfer.



Control Unit
Manages the operation of the ultrasonic generator. It adjusts the frequency, amplitude, and waveform of the output signal based on the requirements of the application.



Matching Network
Ensures efficient power transfer from the driver circuit to the transducer by tuning the impedance between them. It often consists of a transformer, capacitors, or inductors.



Transducer
Converts the electrical energy into ultrasonic waves. It typically consists of a piezoelectric material that expands and contracts when an electric field is applied, generating ultrasonic vibrations.



Housing
Protects the internal components of the generator from damage and environmental factors. It may also provide cooling for the electronics.



Cooling System
Dissipates heat generated by the electronic components during operation. This can be passive (e.g., heat sink) or active (e.g., fan or liquid cooling).



Acoustic Assembly
Directs the ultrasonic waves from the transducer into the medium where they are to be applied (e.g., water in an ultrasonic cleaner or tissue in a medical scanner).



User Interface
Allows the operator to control the generator's functions, including power, frequency, and time settings. This can include buttons, knobs, displays, and sometimes remote control capabilities.



Protection Circuits
Safeguard the generator against damage from overcurrent, overvoltage, and other faults. They may include fuses, surge protectors, and thermal cutoffs.

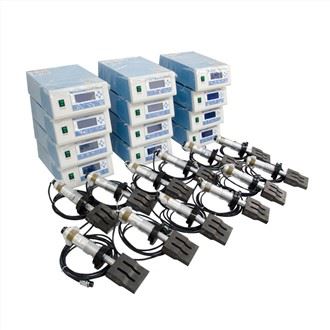

High Power Digital Ultrasonic Generator



Working Principle Of Ultrasonic Generator

An ultrasonic generator uses 60 Hz electrical utility power to create frequencies ranging from about 20 kHz to the 1 MHz range. Some models can generate only a single or a few frequencies while others can produce a wide range. Different levels of power are also available. For multiple-frequency models, operators can select the frequency that is most appropriate for their cleaning application. In addition to producing the high-frequency signal, ultrasonic generators control the signal to maximize cleaning performance. Generators may automatically adjust the signal to compensate for heavy or light loading of the cleaning tank and they may “sweep” the signal, varying the frequency slightly to eliminate resonance or standing waves in the cleaning tank.



How to Choose Ultrasonic Generator


Power and Frequency

The power of the generator is determined by the size of the parts to be cleaned. The parts have to fit into the cleaning tank and be submerged in the cleaning solution. For smaller parts, a basket to hold them off the tank bottom and away from the sides may be needed. The tank size has to be large enough so the largest parts or the basket will fit. The tank size, in turn, determines how much power is required to fill the tank evenly with ultrasonic waves. The generator frequency determines the intensity of the ultrasonic cleaning action. Low frequencies create comparatively large cavitation bubbles that deliver robust scrubbing and cleaning. High frequencies create smaller bubbles that clean gently. Depending on the cleaning application, the generator should be able to produce the corresponding frequency, multiple frequencies or a frequency range.

Control, Operation and Performance

An ultrasonic cleaning system is controlled from the ultrasonic generator. If remote operation is required, the generator has to be able to communicate with a remote control system. The controls may also vary the operating frequency slightly in a “sweep mode.” Normally, the generator controls operate the generator at exactly the selected frequency. In some applications, this mode of operation results in uneven distribution of the ultrasonic waves in the cleaning tank. Such “hot” and “dead” spots can be caused by standing waves due to the tank and transducer configuration or by patterns induced from the shape of the parts to be cleaned. Continuously varying the frequency above and below the operating frequency by 2 to 3 kHz often breaks up such standing waves and patterns, resulting in a more even distribution of the sound waves and the resulting cavitation bubbles.



How to Maintain Ultrasonic Generator


Regular Inspections
Inspect the generator and its associated equipment (sensors, connectors, etc.) for signs of wear, damage, or corrosion. Check for any discoloration, cracks, or loose connections.



Cleaning
Keep the ultrasonic generator and sensor clean. Wipe with a soft cloth and use an appropriate cleaning agent if necessary. Avoid harsh chemicals that may damage the surface or components.



Cooling System Maintenance
Ensure that the cooling system is functioning properly. For passive cooling, check the radiator for dust accumulation and clean it as needed. For active cooling systems, check the fan, pump, and hoses for blockages or leaks, and change filters regularly.



Proper Storage
When not in use, store the ultrasonic generator in a clean, dry place away from direct sunlight and sources of heat or moisture. Keep the cover on to prevent dust accumulation.



Calibration
Calibrate the ultrasonic generator regularly to ensure that it is producing the correct frequency and amplitude. This is especially important in applications where accuracy is critical.



Applicatons of Ultrasonic Generator

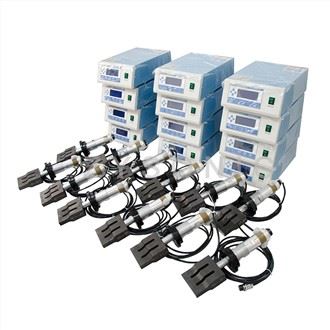

20Khz超声波数字发生电源
数字超声波发生器

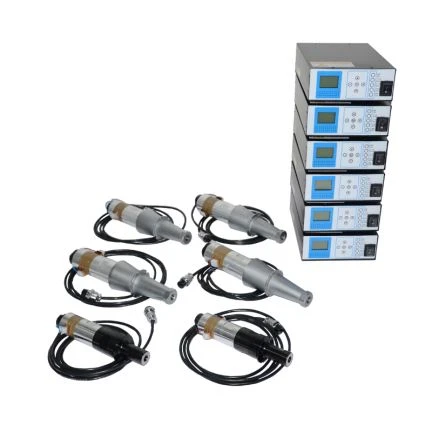

自动频率跟踪超声波数字发生器
焊接用超声波发生器

Medical Imaging
Ultrasonic generators are integral to medical ultrasound scanners, which use high-frequency sound waves to create images of the interior of the body. This technology is commonly used for diagnostic purposes, such as checking fetal development during pregnancy, diagnosing heart conditions, and visualizing organs and soft tissues.



Industrial Cleaning
In industrial settings, ultrasonic generators are used to power ultrasonic cleaners. These devices use ultrasonic waves to agitate liquids, creating microscopic bubbles that implode and generate powerful forces capable of removing dirt, contaminants, and debris from various materials, including metals, plastics, and glass.



Sonochemistry
Ultrasonic generators are employed in sonochemistry, where ultrasonic waves are used to induce chemical reactions. This technique, known as sono-chemistry, can enhance reaction rates, yield, and selectivity. It is particularly useful in the synthesis of nanoparticles, emulsions, and polymerizations.



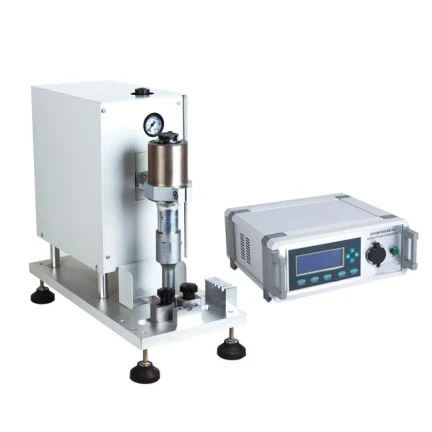

Materials Processing
Ultrasonic generators are used in processes such as welding, drilling, cutting, and dispensing adhesives. The high-frequency vibrations help in breaking the surface tension of materials, allowing for more precise and efficient processing.



Non-Destructive Testing (NDT)
Ultrasonic generators are used in NDT to detect flaws within materials. By analyzing the reflection and attenuation of ultrasonic waves, technicians can locate cracks, voids, and other imperfections in metals, composites, and concrete structures.



Biomedical Research
Ultrasonic generators are utilized in biomedical research for cell disruption, DNA extraction, and sonoporation. Sonication helps in breaking down cell walls and membranes, facilitating the study and manipulation of biological samples.



Food Processing
Ultrasonic generators are applied in food processing for tasks such as homogenization, deagglomeration, and extraction. They can improve the texture and consistency of food products while enhancing the extraction of flavors and nutrients.




Frequently Asked Questions



Q: What is an ultrasonic generator, and how does it work?

A: An ultrasonic generator is a device designed to produce ultrasonic waves, which are sound waves with frequencies above the human audible range (20 kHz). It converts electrical energy into mechanical vibrations through a transducer. The transducer typically consists of a piezoelectric crystal that expands and contracts when an alternating current passes through it. This mechanical movement generates ultrasonic vibrations that propagate through a medium, such as air or liquid.

Q: How are ultrasonic generators classified based on their application?

A: Ultrasonic generators can be classified based on their application into several categories, such as medical imaging, industrial cleaning, sonochemistry, non-destructive testing (NDT), and material processing. Each type of application requires specific frequency ranges, power levels, and waveform characteristics to achieve the desired outcome.

Q: What factors affect the performance of an ultrasonic generator?

A: The performance of an ultrasonic generator is influenced by several factors, including the frequency of the generated ultrasonic waves, the power output, the efficiency of the transducer, the properties of the medium through which the waves propagate, and the presence of any external noise or interference. Additionally, the design and construction of the generator itself, including the choice of materials and manufacturing techniques, can impact its overall performance.

Q: Can ultrasonic generators be used for medical imaging? If so, how do they work in this context?

A: Yes, ultrasonic generators are widely used in medical imaging, particularly in diagnostic ultrasound scanners. In this application, the generator produces high-frequency ultrasonic waves that are directed towards the patient's body. When these waves encounter different tissues and organs, they are reflected back to the transducer as echoes. The time delay between the transmission of the ultrasonic waves and the reception of the echoes allows the calculation of distances and the construction of cross-sectional images of the internal structures.

Q: How are ultrasonic generators used in industrial cleaning?

A: Ultrasonic generators are used in industrial cleaning applications to remove dirt, contaminants, and debris from various materials, including metals, plastics, and glass. The generator produces ultrasonic waves that create microscopic bubbles in the cleaning solution. These bubbles implode, generating powerful forces that dislodge and remove the contaminants from the surface of the material being cleaned.

Q: What is the role of ultrasonic generators in sonochemistry?

A: In sonochemistry, ultrasonic generators are used to induce chemical reactions using high-frequency sound waves. The ultrasonic waves create regions of high and low pressure in the reaction mixture, leading to the formation of microbubbles. When these bubbles collapse, they generate localized hotspots and high pressures that can initiate or accelerate chemical reactions. This technique is particularly useful for reactions that are difficult to carry out using conventional methods.

Q: How are ultrasonic generators integrated into non-destructive testing (NDT) procedures?

A: Ultrasonic generators play a crucial role in non-destructive testing (NDT) procedures, where they are used to detect flaws within materials such as metals, composites, and concrete structures. The generator produces ultrasonic waves that are directed towards the material being tested. When these waves encounter a flaw, such as a crack or void, they are reflected back to the transducer as echoes. By analyzing the amplitude, frequency, and arrival time of these echoes, technicians can locate and characterize the flaw.

Q: What materials are commonly used in the construction of ultrasonic generators?

A: Ultrasonic generators are typically constructed from a combination of metal alloys, ceramics, and polymers. Metallic components, such as the housing and mounting brackets, provide structural support and rigidity. Ceramic materials, such as piezoelectric crystals, are used in the transducer to convert electrical energy into mechanical vibrations. Polymers, such as silicone rubber or epoxy resin, are often used as insulators or to encapsulate sensitive electronic components.

Q: Can ultrasonic generators be used for material processing? If so, what applications are they suitable for?

A: Yes, ultrasonic generators are commonly used for material processing applications, such as welding, drilling, cutting, and dispensing adhesives. The high-frequency vibrations produced by the generator can help to break the surface tension of materials, allowing for more precise and efficient processing. Additionally, ultrasonic generators can be used to enhance the bonding between materials or to promote the flow of viscous fluids.

Q: What challenges are associated with the use of ultrasonic generators in high-power applications?

A: High-power ultrasonic generators are subject to several challenges, including the generation of excessive heat, the risk of mechanical failure due to high stresses, and the potential for nonlinear effects that can distort the waveform. To overcome these challenges, high-power ultrasonic generators typically require robust cooling systems, advanced materials, and sophisticated control algorithms to ensure stable and reliable operation.

Q: How do environmental factors affect the performance of ultrasonic generators?

A: Environmental factors, such as temperature, humidity, and atmospheric pressure, can significantly impact the performance of ultrasonic generators. For example, high temperatures can cause electronic components to overheat and fail, while humid conditions can introduce corrosion and reduce the lifespan of metal parts. Atmospheric pressure variations can also affect the resonant frequency of the transducer, leading to changes in the amplitude and frequency of the generated ultrasonic waves.

Q: What safety precautions should be taken when using ultrasonic generators?

A: When using ultrasonic generators, it is essential to follow strict safety precautions to protect both the user and the equipment. This includes wearing appropriate personal protective equipment (PPE), such as ear protection to prevent hearing damage from high-intensity ultrasonic waves, and eye protection to guard against flying debris. Additionally, users should avoid direct contact with the transducer or any other part of the generator that may generate high temperatures or intense vibrations.

Q: Can ultrasonic generators be used in combination with other technologies?

A: Yes, ultrasonic generators can be combined with other technologies to achieve enhanced performance or additional functionality. For example, ultrasonic generators are often used in conjunction with lasers or electromagnetic fields to create hybrid processing techniques that combine the benefits of different energy sources. Additionally, ultrasonic generators can be integrated into automated systems or robotic platforms to enable remote operation and improve process control.

Q: What is the future outlook for ultrasonic generator technology?

A: The future outlook for ultrasonic generator technology is promising, with continued advancements in materials science, electronics, and signal processing expected to drive further improvements in performance, efficiency, and versatility. Emerging applications, such as high-resolution medical imaging, advanced materials processing, and environmental monitoring, are likely to fuel increased demand for innovative ultrasonic solutions.

Q: How are ultrasonic generators maintained and serviced?

A: To ensure optimal performance and extend the lifespan of ultrasonic generators, regular maintenance and servicing are essential. This typically involves cleaning and inspecting the transducer and other components for signs of wear or damage, replacing worn-out parts, updating software or firmware, and calibrating the system to ensure accurate operation. Additionally, manufacturers may provide recommended maintenance schedules and guidelines to help users perform routine checks and maintenance tasks.

Q: What are the potential environmental impacts of using ultrasonic generators?

A: The environmental impacts of using ultrasonic generators vary depending on the specific application and the type of material being processed. In general, ultrasonic generators have a relatively small environmental footprint compared to other technologies. However, there are some potential environmental concerns associated with their use, such as the generation of waste heat and the potential for noise pollution. To minimize these impacts, users should implement energy-efficient designs and adopt sustainable practices, such as recycling or reusing waste materials.

Q: Are there any limitations or challenges associated with the use of ultrasonic generators in specific applications?

A: While ultrasonic generators offer many advantages in terms of versatility and performance, there are some limitations and challenges associated with their use in specific applications. For example, in medical imaging applications, the resolution of the resulting images may be limited by the frequency and wavelength of the ultrasonic waves used. In industrial cleaning applications, the effectiveness of the cleaning process may depend on the type and concentration of the contaminants being removed.
