Seamlessly sewing, more beautiful and more powerful.



What is Ultrasonic Sewing Machine





An ultrasonic sewing machine is a cutting-edge technology in textile manufacturing. Unlike traditional sewing machines that use needles and thread, ultrasonic sewing machines employ high-frequency vibrations to combine fabrics seamlessly. These machines utilize ultrasonic waves to create heat, melting and fusing synthetic fibers without stitching.



Features of Ultrasonic Sewing Machine

Increased Efficiency and Productivity
A Ultrasonic Sewing Machine can greatly increase the efficiency and productivity of your business. Traditional sewing machines require time-consuming processes such as threading needles, changing bobbins, and adjusting tension. With an ultrasonic lace machine, there are no needles or thread involved, making the process much faster and more efficient. The high-frequency vibrations bond the fabrics together instantly, allowing for quicker production times and higher productivity levels.



Cost Savings
Ultrasonic Sewing Machine can also help save costs in the long run. Traditional sewing machines require needles, thread, and bobbins, which can add up over time.



Enhanced Product Quality
Using this machine can greatly enhance the quality of your products. The high-frequency vibrations create a strong and durable bond between fabrics, resulting in a more secure hold that can withstand wear and tear. Additionally, this type of bonding does not create puncture holes in the fabric, as traditional sewing methods do.



Versatility
It can be used to bond a wide range of fabrics, including synthetic materials, plastics, and even metals. This versatility allows businesses to create a variety of products and expand their offerings. Additionally, ultrasonic bonding can be used to create intricate designs and patterns, adding a unique and personalized touch to your products.



Types of Ultrasonic Sewing Machine

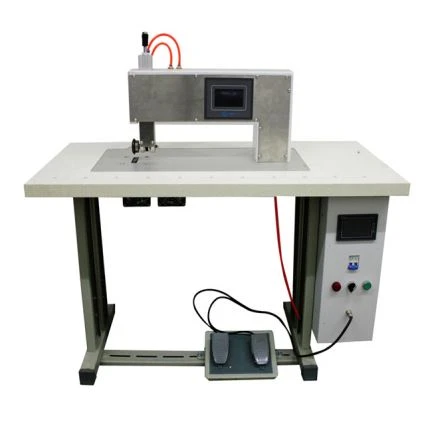

Rotary Horn Ultrasonic Sewing Machines

These machines feature a rotating horn (sonotrode) that oscillates at ultrasonic frequencies. They are suitable for sealing light to medium weight fabrics and are often used for tasks like laminating, cutting, and sealing.

Belt Welding Ultrasonic Machines

Designed for continuous production lines, belt welding machines have a moving belt that feeds the material through the welding zone, ensuring consistent and rapid sealing of the material as it passes.

Circular Welding Ultrasonic Machines

Suitable for circular items or components, these machines feature a circular anvil and a rotating sonotrode that work together to weld the material uniformly around its circumference.

Strip Welding Ultrasonic Machines

Specialized for welding strips of material together, these machines are equipped with a flat or shaped sonotrode that applies ultrasonic vibrations along the length of the strip.

Buttonhole Ultrasonic Machines

Specifically engineered for creating buttonholes without the need for thread, these machines use ultrasonic welding to cut and seal the fabric around the hole.

Leaf Blanket Ultrasonic Machines

Designed for welding leaf blankets or similar materials, these machines typically have large welding areas and powerful ultrasonic generators to handle the thickness and density of the materials.

Swing Wedge Ultrasonic Machines

Utilizing a swinging wedge-shaped sonotrode, this type of machine is ideal for heavy-duty applications where deep penetration and robust welds are required.

Edge Welding Ultrasonic Machines

These machines are used for welding the edges of materials, providing a secure and clean finish. They often include features for trimming and sealing simultaneously.

Micro Ultrasonic Sewing Machines

Smaller and more precise, micro ultrasonic sewing machines are used for intricate applications that require fine detail and small welds, such as in the medical device industry.




How Does an Ultrasonic Sewing Machine Work?

01/

Generator and Transducer
The ultrasonic generator is at the heart of an ultrasonic sewing machine, which serves as the power source. This generator produces electrical energy, typically from 20 to 40 kHz. This electrical energy is then channeled to the transducer, a critical component that converts the electrical energy into high-frequency mechanical vibrations. The transducer functions akin to a speaker, transforming the electrical input into oscillations that will be used to create ultrasonic waves.

02/

Vibration and Heat Generation
As the ultrasonic waves encounter the fabric, they induce rapid vibrations at the molecular level. These vibrations create friction within the fabric, generating localized heat. The heat results from the intense molecular movement, causing the synthetic fibers in the fabric to reach their melting point. This controlled and localized heating process is fundamental to the success of ultrasonic welding.

03/

Converter and Horn
The transducer is connected to a converter, an element that further amplifies the mechanical vibrations generated. The amplified vibrations are then directed towards the ultrasonic horn, a sonotrode. The horn is crucial in concentrating and transmitting the vibrational energy to the fabric.It is often designed to match the processed materials’ specific requirements, ensuring optimal energy transmission efficiency.

04/

Fabric Placement
In fabric welding, the joint layers are strategically placed between the ultrasonic horn and an opposing tool, commonly an anvil or a countertop. The fabric is carefully positioned, ensuring proper alignment and contact with the ultrasonic horn. This configuration forms a sandwich-like structure, allowing the ultrasonic waves to pass through the material efficiently.

05/

Bonding and Sealing
Applying heat from the ultrasonic waves causes the synthetic fibers in the fabric to melt. As a result, the adjacent fabric layers fuse, creating a robust and durable bond. This bonding process is particularly effective for synthetic fabrics, where the melted fibers solidify upon cooling. The outcome is a seamless, stitch-free seam or bond with strength and aesthetic appeal.

06/

Cutting
For added efficiency, some ultrasonic sewing machines are equipped with cutting blades. These blades are positioned near the ultrasonic horn and can trim excess fabric during welding. This simultaneous cutting and sealing capability streamlines production processes, saving time and enhancing precision. It is especially beneficial for applications where precise cutting is integral to the final product, offering a seamless integration of fabric joining and trimming in a single step.





How to Choose Ultrasonic Sewing Machine
20khz 2000W超声波无缝花边缝纫机

Application

Determine the specific application for which you need the ultrasonic sewing machine. Different machines are designed for various materials and purposes, such as cutting, sealing, or embossing.



20kHz 2000w超声波无缝封口机

Frequency

Ultrasonic sewing machines operate at different frequencies. Higher frequencies are suitable for delicate fabrics, while lower frequencies are better for thicker materials. Choose a frequency that matches the materials you will be working with.

无纺布手动超声波花边缝纫和切割机

Power

Consider the power output of the machine. Higher-power machines are suitable for heavy-duty applications and thicker materials, while lower-power machines are better for lighter fabrics.

滚筒花边图案超声波缝纫机

Speed

Check the sewing speed of the machine. Choose a machine that offers the right balance between speed and precision for your specific needs.





Applications of Ultrasonic Sewing Machine



Apparel Industry
In fashion and apparel manufacturing, ultrasonic sewing machines offer a cutting-edge alternative to traditional stitching methods. They excel in seamlessly joining fabric layers, creating a sleek and modern aesthetic without the need for visible stitches. This technology is particularly advantageous for delicate and lightweight fabrics like chiffon, silk, and other synthetics, where traditional sewing might cause damage or distortion. The precision of ultrasonic welding ensures that garments maintain their structural integrity while achieving a clean and professional finish, meeting the high standards of the fashion industry.



Automotive Upholstery
Ultrasonic sewing machines play a crucial role in the automotive sector, specifically in assembling and binding materials for vehicle interiors.These machines provide a seamless and durable solution, from seat covers and door panels to headliners. The technology ensures that the fabrics used in automotive upholstery are securely bonded, enhancing the interior components’ aesthetic appeal and longevity. The efficiency and precision of ultrasonic welding contribute to producing high-quality automotive textiles, meeting the industry’s stringent requirements.



Medical Textiles
In medical textiles, the unparalleled precision and cleanliness of ultrasonic welding make it an indispensable technology. It is extensively used to manufacture surgical gowns, masks, and various disposable medical supplies. The stitch-free, sealed seams created by ultrasonic sewing machines contribute to the sterility and durability of these critical medical products, meeting the stringent standards of hygiene and safety required in healthcare settings.



Home Textiles
Ultrasonic sewing machines offer a transformative approach for bedding, curtains, and other home textile products. The seamless, stitch-free finish enhances the visual appeal of these products and contributes to their functionality. Home textiles benefit from the durability and strength of ultrasonically welded seams, ensuring that products withstand regular use and washing while maintaining their original quality and appearance.



Technical Textiles
Industries involved in technical textiles, such as geotextiles, filtration, and industrial fabrics, leverage ultrasonic sewing to create robust and reliable seams in specialized materials. Whether it’s reinforcing materials for construction, filtration systems, or industrial components, the precision of ultrasonic welding ensures that these textiles meet the rigorous demands of their respective applications.



Non-Woven Products
Ultrasonic technology is preferred in producing non-woven products like disposable diapers, hygiene items, and filters. The strength and integrity of the bonds created by ultrasonic sewing machines are crucial for ensuring the reliability and performance of these products. The stitch-free nature of the seams adds to the comfort and functionality of disposable items while maintaining the structural integrity of non-woven materials. This makes ultrasonic technology a key player in producing various everyday essentials.




Frequently Asked Questions



Q: What is an ultrasonic sewing machine, and how does it differ from a conventional sewing machine?

A: An ultrasonic sewing machine uses high-frequency vibrations to bond materials together rather than using thread. It differs from traditional machines in that it can join a variety of materials, including those that are difficult to sew with conventional methods, and it creates a seam that is both strong and aesthetically pleasing without the need for adhesives or stitches.

Q: What types of materials can be sewn using an ultrasonic sewing machine?

A: Ultrasonic sewing machines are capable of joining a wide range of materials, including various types of plastics, films, foams, non-woven fabrics, and even certain metals. This makes them highly versatile for use in industries such as automotive, apparel, packaging, and medical devices.

Q: How does the bonding process work in an ultrasonic sewing machine?

A: The bonding process in an ultrasonic sewing machine involves the conversion of electrical energy into mechanical energy. The machine generates high-frequency vibrations, which are transferred to the materials being joined through a specialized tool called a sonotrode or horn. These vibrations create heat due to molecular friction, causing the materials to soften and fuse together at the point of contact.

Q: What are the advantages of using an ultrasonic sewing machine over traditional sewing methods?

A: There are several advantages to using an ultrasonic sewing machine, including faster production speeds, improved strength and durability of the seams, reduced material waste, lower maintenance requirements, and energy efficiency. Additionally, ultrasonic sewing machines can produce cleaner finishes and are able to join a wider range of materials than traditional sewing methods.

Q: Are there any limitations to the types of seams that can be created with an ultrasonic sewing machine?

A: While ultrasonic sewing machines are highly versatile, there are some limitations to the types of seams that can be created. For example, they are not well-suited for joining very thick or bulky materials, and they may not be able to create complex stitch patterns or designs. Additionally, the bond created by ultrasonic sewing machines is generally not reversible, so it is important to ensure that the materials are correctly aligned before the sewing process begins.

Q: How do I choose the right ultrasonic sewing machine for my needs?

A: When choosing an ultrasonic sewing machine, it is important to consider factors such as the type and thickness of materials you will be working with, the desired production volume and speed, the specific applications you need the machine to perform (such as welding, cutting, or sealing), and your budget. Additionally, it is helpful to research the reputation and after-sales support of potential manufacturers and suppliers.

Q: What maintenance is required for an ultrasonic sewing machine?

A: To ensure optimal performance and longevity, ultrasonic sewing machines require regular maintenance. This typically involves cleaning the machine after each use to remove any debris or residue from the bonding process, lubricating moving parts to reduce wear and tear, and replacing worn or damaged components (such as sonotrodes or filters) as needed. Additionally, it is important to follow the manufacturer's recommendations for proper operation and maintenance procedures.

Q: Can ultrasonic sewing machines be integrated with existing production lines?

A: Yes, ultrasonic sewing machines can often be integrated with existing production lines to streamline workflow and increase efficiency. Many manufacturers offer custom solutions and technical support to ensure a smooth integration process. It is important to consult with a knowledgeable supplier or engineer to determine the best configuration for your specific needs.

Q: Are there any safety precautions I should take when using an ultrasonic sewing machine?

A: As with any industrial machinery, there are safety precautions that should be taken when using an ultrasonic sewing machine. These include wearing appropriate personal protective equipment (such as gloves and eye protection), ensuring that the work area is clear of obstacles and hazards, following the manufacturer's recommended operating procedures, and keeping children and unauthorized personnel away from the machine. Additionally, it is important to regularly inspect the machine for any signs of damage or wear and to address any issues promptly.

Q: What is the cost of an ultrasonic sewing machine, and is it worth the investment?

A: The cost of an ultrasonic sewing machine can vary depending on the size, features, and capabilities of the machine, as well as the brand and supplier. While initial costs may be higher than those associated with traditional sewing machines, the long-term benefits of increased productivity, reduced material waste, and lower maintenance requirements can make them a worthwhile investment for many businesses. It is important to carefully evaluate your specific needs and budget when considering the purchase of an ultrasonic sewing machine.

Q: Where can I find training and support for using an ultrasonic sewing machine?

A: Many manufacturers of ultrasonic sewing machines offer training and support to help users get started with their new equipment. This may include on-site demonstrations, written manuals or guides, online tutorials or videos, and technical support hotlines or email services. Additionally, local distributors or suppliers may offer training courses or workshops for a fee. It is important to take advantage of these resources to ensure that you are fully trained and comfortable using your ultrasonic sewing machine.

Q: How do I troubleshoot common issues with an ultrasonic sewing machine?

A: Common issues with ultrasonic sewing machines may include poor bond quality, machine malfunctions or errors, and difficulties with material alignment or feeding. To troubleshoot these issues, it is important to refer to the machine's user manual or contact technical support for guidance. Additionally, regular maintenance and inspection of the machine can help prevent many common problems.

Q: Can I use an ultrasonic sewing machine for bonding dissimilar materials?

A: Yes, ultrasonic sewing machines can often be used for bonding dissimilar materials together. However, it is important to ensure that the materials are compatible and that the bonding process is optimized for the specific combination of materials being used. Some materials may require special treatment or additional processing steps to achieve a satisfactory bond. It is helpful to consult with a knowledgeable supplier or engineer when planning to bond dissimilar materials using an ultrasonic sewing machine.

Q: What is the future of ultrasonic sewing technology?

A: As technology continues to evolve, we can expect to see further advancements in ultrasonic sewing technology. Future developments may include improvements in machine efficiency and speed, enhanced capabilities for bonding a wider range of materials, and increased integration with automation and robotics technologies. Additionally, there may be innovations in the design and functionality of sonotrodes and other components to improve the overall performance and versatility of ultrasonic sewing machines.

Q: How can I stay up-to-date with the latest developments in ultrasonic sewing technology?

A: To stay up-to-date with the latest developments in ultrasonic sewing technology, it is helpful to follow industry news sources and trade publications, attend relevant conferences and exhibitions, and establish relationships with suppliers and manufacturers who specialize in this field. Additionally, many manufacturers offer subscription services or newsletters that provide information on new products, technologies, and industry trends. By staying informed and engaged with the latest developments in ultrasonic sewing technology, you can ensure that your business remains competitive and innovative in its use of this cutting-edge technology.
