Working Power: 220V 50/60Hz 6A
Input Power: 1500-2500W( adjustable)
Frequency: 20Khz
Working Speed: 0-20 m/min
Roller Size: Width 0-60mm, Dia φ50-φ60mm
Dimension: 1200*600-1200mm
New Weight: 90Kg
Gross Weight: 110Kg
Working Temp: 25

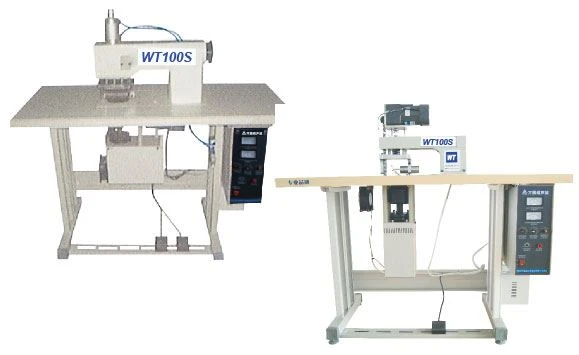

Basic Components
1. New type PC intellectual ultrasonic generator;
2. 20Khz ultrasonic transducer (PZT8)
3. Bottom mold fixed suspension structure
4. Double motor speed adjustment system
5. Manual or pneumatic roller lifting system
6. Double-barreled framework and heavy support board
Characteristics
1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safety
2. Strong ultrasonic power with three adjustable gears(maximum, medium and minimum), meets the welding requirements of different materials and thicknesses
3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology

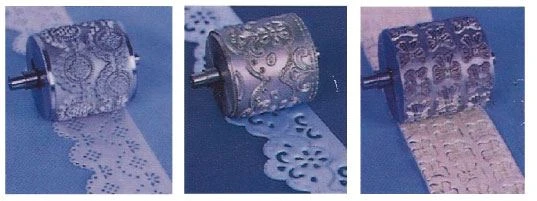

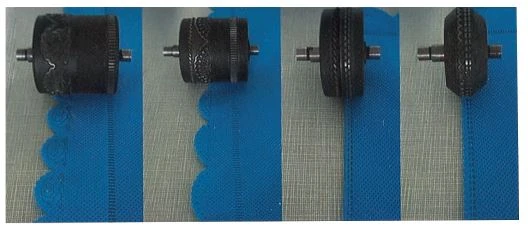

4. Variety of roller patterns, other roller designs available according to customer requirements
5. Four time faster than sewing machines, minimal operator training required.
Functions
1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting, so smooth, no rough edges;
2. Sealing: two or more layers of fabric stitched together without thread replacing the sewing needles, better welding strength;
3. Hole making: cut out the various patterns of holes, and treatment of side melting;
4. Slitting: single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: simultaneous cutting, sealing and embossing to make production in one time
Suitable Material
All kinds of artificial leather and fabric, nonwoven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece, etc.
Applications
Lace clothing, ribbon, decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric cloth and so on.
