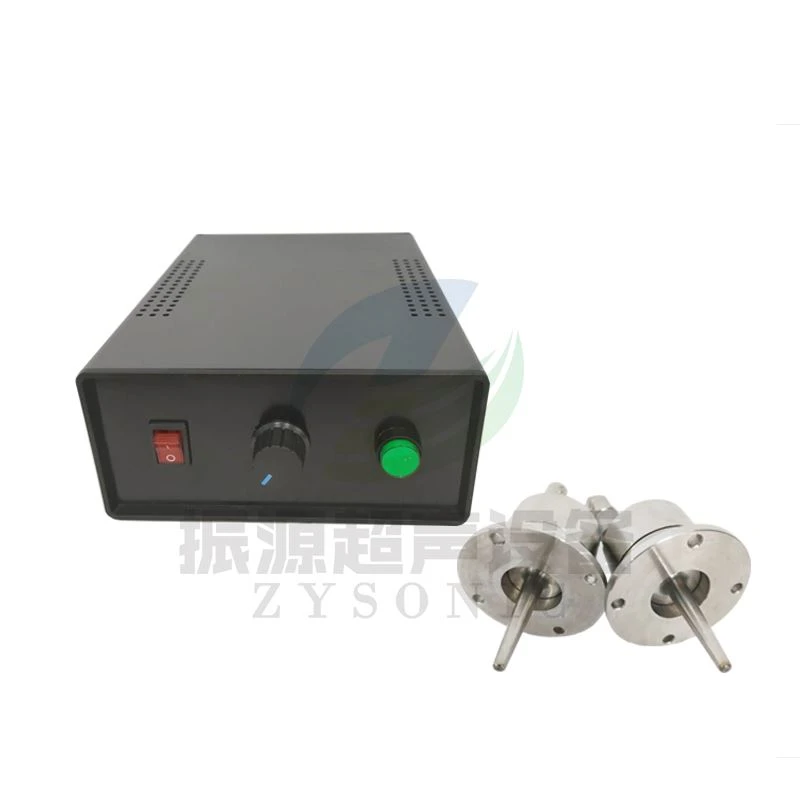

50Khz Ultrasonic Spray Atomizer

50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying

Principle:

The Ultrasonic power supply converts 50/60 Hz to frequency electrical energy. This electrical energy is transmitted to the piezoelectric transducer within the converter, where it is changed to mechanical vibrations. The ultrasonic vibrations are intensified by the probe and focused at the tip where the atomization takes place. The liquid travels through the probe, and spreads out as a thin film on the atomizing surface. The oscillating tip disintegrates the liquid into micro-droplets, and ejects them to form a gentle, low velocity spray.

Parameters：

SUMMARY OF FEATURES OF 50Khz Ultrasonic Spray Atomizer

· From micro-litres to litres – continuous or intermittent

· Dispenses material with virtually no over spray

· Pressure-less atomization – low velocity mist

· Low cost atomization probe replacement

· Minimal atmospheric contamination

· Virtually unclog gable

· Programmable operation

· Multiple probe operation

· No heating / No temperature rise

Warranty:

 One year.

Equipment features of 50Khz Ultrasonic Spray Atomizer

1. Low frequency and high power;

2. The atomization efficiency is high, and the atomization amount of a single transducer is large, and the atomization amount of one unit can reach 1000ml / h;

3. There is no requirement for water quality, and sometimes the sewage containing some impurities can also be atomized;

4. No pressure, no noise, no nozzle wear and blockage.

5. The atomization amount can be adjusted at will, which is suitable for industrial application. Through the combination, the atomization amount can meet the requirements of users.
