Ultrasonic Milling Machining is an easy-to-use technology that allows a mold manufacturer to machine very hard or brittle materials with flexibility and accuracy. Ultrasonic machining centers can perform both conventional and ultrasonic machining operations. By combining these technologies in one machine, the user has the capability to machine across the entire material spectrum.

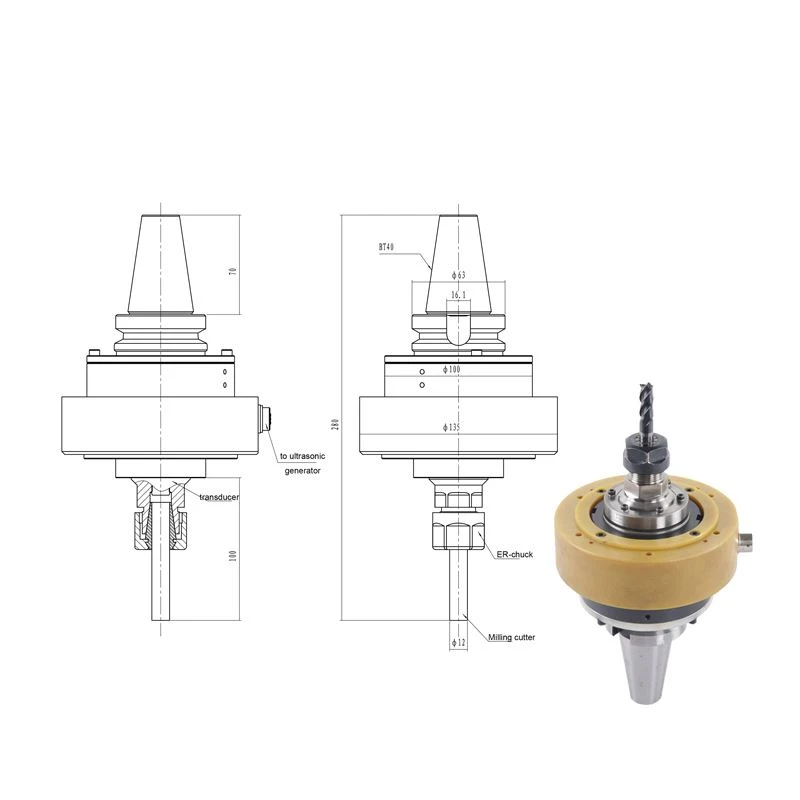

Ultrasonic oscillator is the energy-gathered part to change and amplify the electric energy output by generator to mechanical energy, then pass to work piece. Ultrasonic oscillator can be designed as the structure which can clamp a certain range on the basis of requirement of practical application occasion.

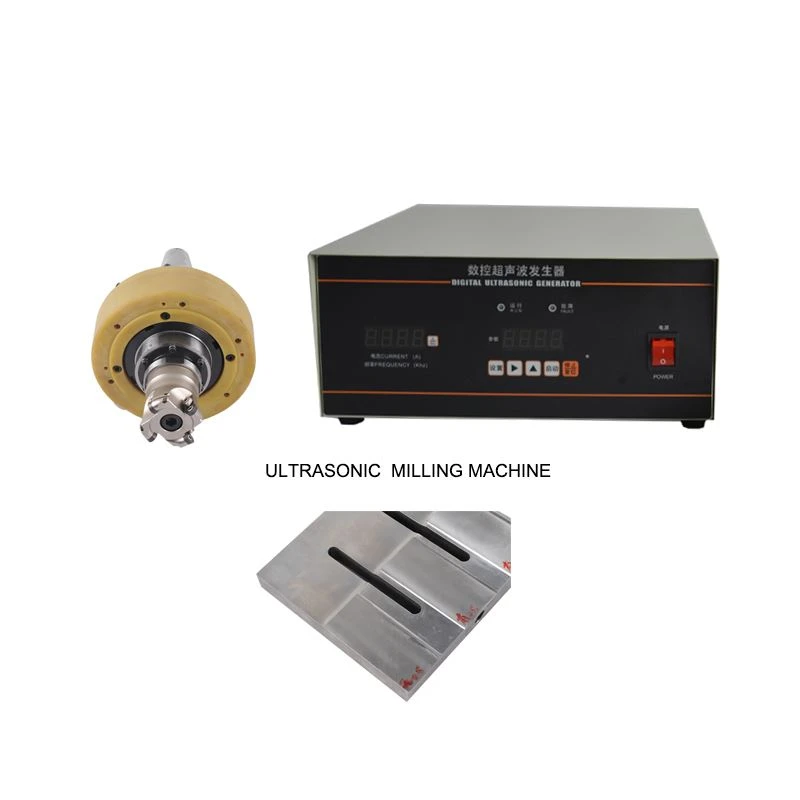

Ultrasonic Drilling Machine 20Khz 1000W
Model | LX20-10 | |
Power | 1000W | |
Frequency | 15-21Khz | |
Amplitude adjust | 50-100% | |
Switch | handle or foot switch | |
Working time control | 24 hours | |
Applications:
1. Various kinds of materials especially fragile rigid material.
2. Processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.
3. Application area: machining industry, machine tool equipment manufacturing.
4. Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry.
Work environment:
The environment: use it indoor;
Moisture: ≤85%RH;
Peripheral environment temperature: 0 ℃ - 40℃
The generator size: 450mm×300mm×135mm;
The space for use: the distance of the other objects to the power case should not be less than 150mm; to the heat dissipation port should not be less than 200mm.
