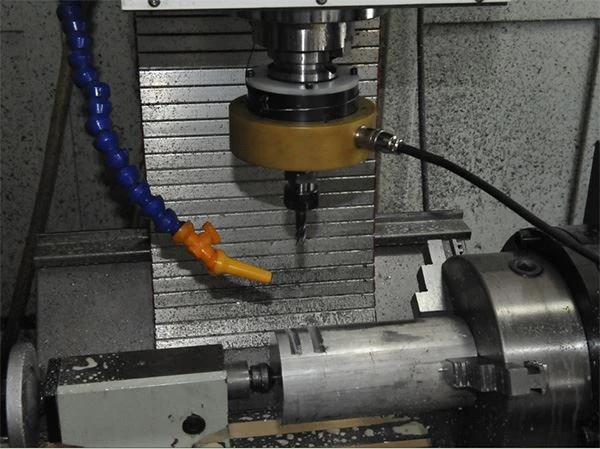

CNC Machining Center Ultrasonic Assisted Machining

Principle:

Ultrasonic Assisted Machining (RUM) is a mechanical type of nontraditional hybrid machining process that has been utilized potentially to machine a wide range of latest and difficult-to-machine materials, including ductile, hard and brittle, ceramics, composites, etc.

Consumable part and working time

Ultrasonic Assisted Machining consumable part and working time

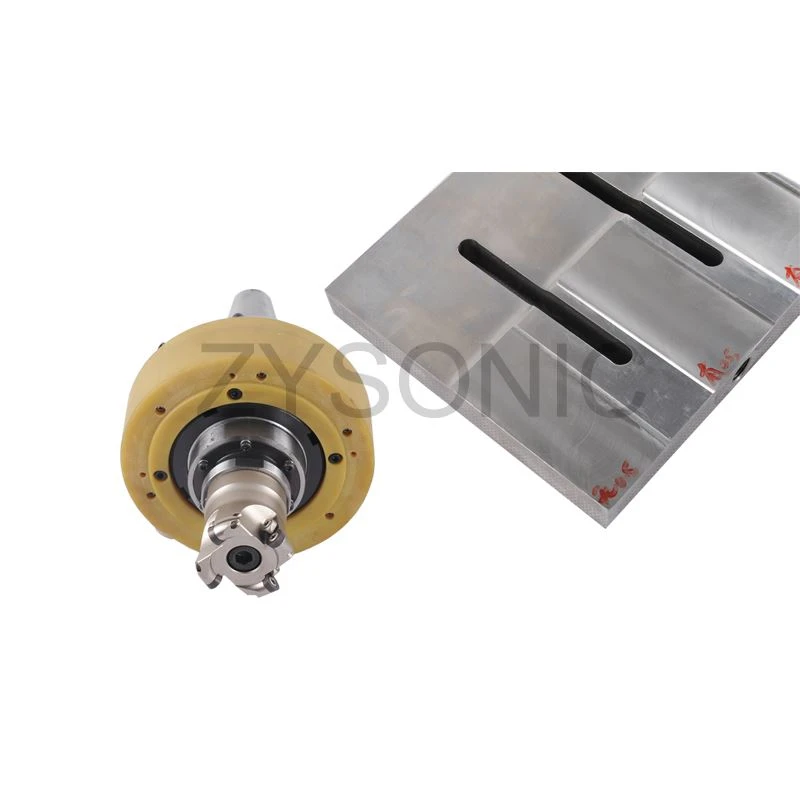

BT40 vertical milling		BT40 disk milling
consumable part	working time	consumable part	working time
milling cutters	100h(8h/d)	milling cutters	150h(8h/d)
carbon brush	6000h(8h/d)	carbon brush	8000h(8h/d)

Model	LX20-10
Power	1000W
Frequency	15-21Khz
Amplitude adjust	20-100%
Switch	handle or foot switch
Working time control	24 hours

Work environment:

The environment: use it indoor;
Moisture: ≤85%RH;
Peripheral environment temperature: 0 ℃ - 40℃
The generator size: 450mm×300mm×135mm；
The space for use: the distance of the other objects to the power case should not be less than 150mm; to the heat dissipation port should not be less than 200mm.
