Handheld Ultrasonic Plastic Welding Machine

- With newest digital ultrasonic Generator ,auto. tuning 300W-900W available
- Hand gun and pencile type optional
- Weld time controlled by a digital timer (0.001) or a press of the trigger switch button
- Overload protect
...

Send Inquiry

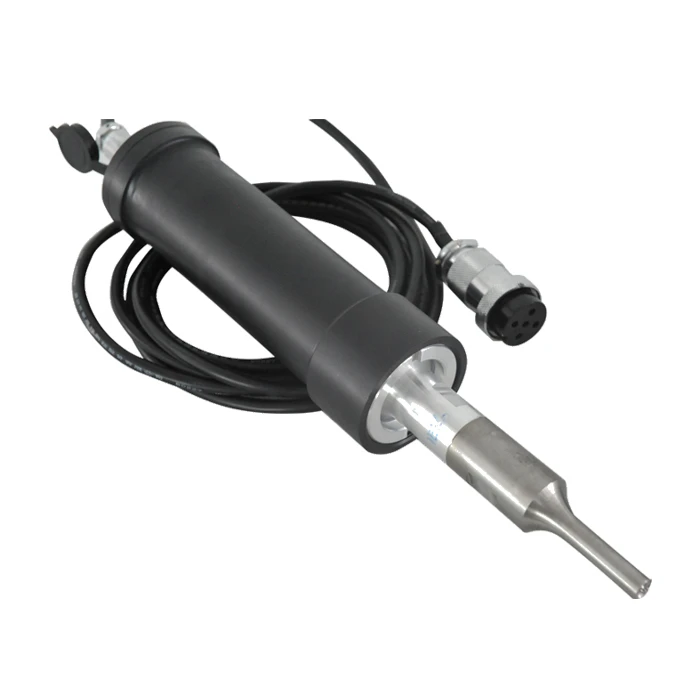

Portable handheld ultrasonic plastic welding machine

FEATURES

- With newest digital ultrasonic Generator ,auto. tuning 300W-900W available

- Hand gun and pencile type optional

- Weld time controlled by a digital timer (0.001) or a press of the trigger switch button

- Overload protect

- Easy operation , small volume and portable design

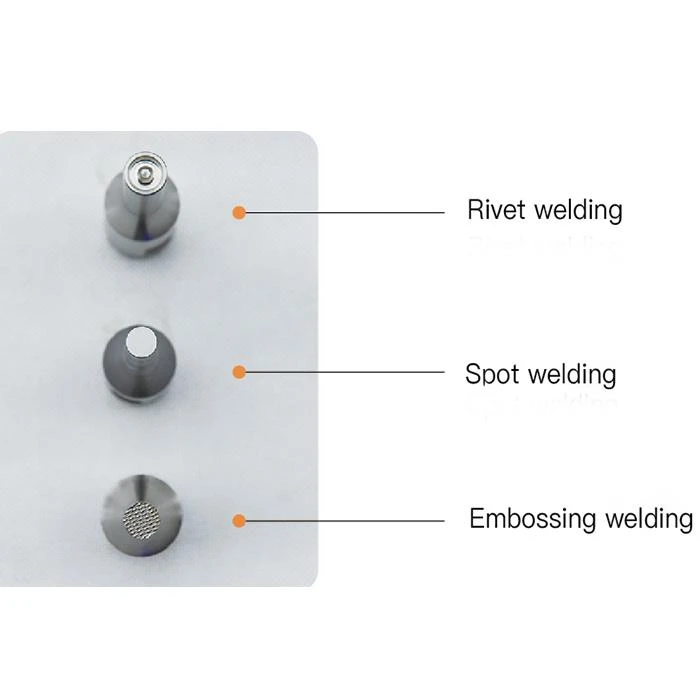

- Specifically suitable for spot welding, screw insert and riveting

- High amplitude; it is adjustable for 50-100%

- The welding unit could be installed on auto. welding lines

SPECIFICATIONS

Item

Handheld ultrasonic plastic welding machine

frequency(KHz)

35

28

28

28

20

Power(W)

500

300

700

800

900

Welding Head

<10mm

<10mm

<10mm

<12mm

<12mm

Dia.Of Shell

51mm

64mm

The handle Size

100mmx45mmx32mm

Weight

0.5kg

0.5kg

0.5kg

1.2kg

1.2kg

Digital generator

-

Analog generator

Application

ABS,HIPS,PMMA,MPPO

PVC,PP,PE

Aldehyde-resin,pc

PC,PSU,PA

Nylon,PE, PBT


APPLICATIONS

-Mainly ultrasonic welding, ultrasonic riveting, ultrasonic punching and ultrasonic cutting

-Thermoplastics

-Small series, manual work stations, repairs and finishing operations

-Can be used in all kinds of sectors
