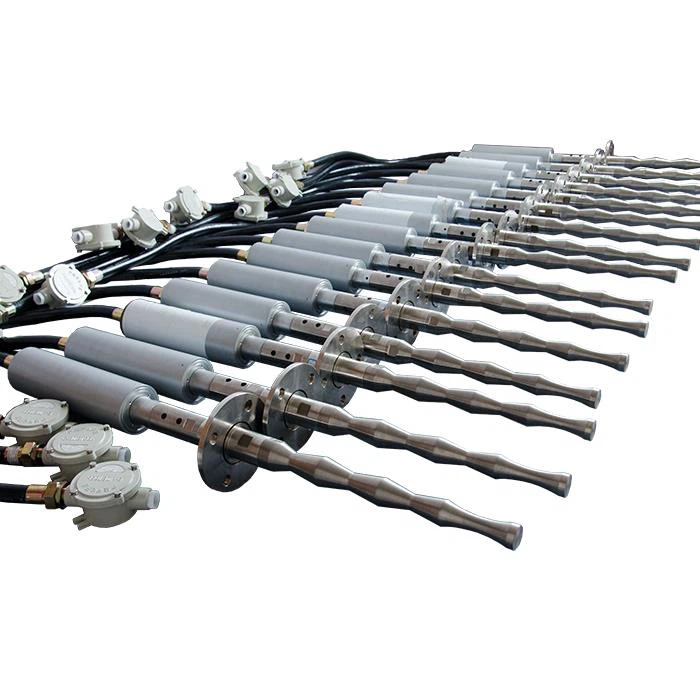

The ultrasonic processor can be used in research and development and industrial production of smaller volumes.
Typical flow rates are between 0.5 and 6.01/min (or 1 to 8m/day).
It is suitable for the sonication of different materials in many process application, such as for nanomaterials, paint and ink, food, cosmetics and biodiesel production.
The ultrasonic industrial processor is commonly used for inline sonication (single pass or loop) in order to obtain better processing quality.
It can also be used for batch sonication.
it allows for running at a wide range of ultrasonic parameter sets.
Users can vary ultrasonic amplitude, liquid pressure and liquid composition, such as: sonotrode amplitudes of up to 70 micron; liquid pressures of up to 10 bar; liquid flow rates of up to 12 litres/min (depending on the process); liquid temperatures of up to 70C (other temperatures on request);
The equipment is said to offer exact reproducibility and linear scalability.
Any sonication setup can be reproduced and can be used at continuous operation or can be scaled up to any larger unit.
ZY Sonic offers a range of accessories, such as sonotrodes, boosters, flow-cell reactors and sound protection boxes.
The PC-Control (optional software interface) allows for the recording of the individual test runs.

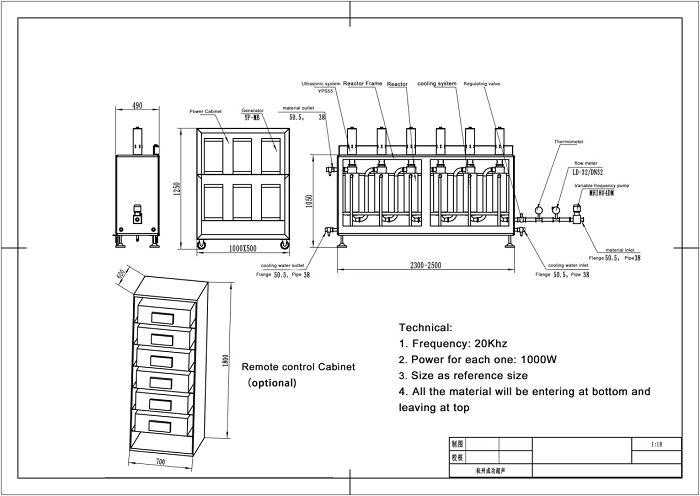

Our sample production lines:
