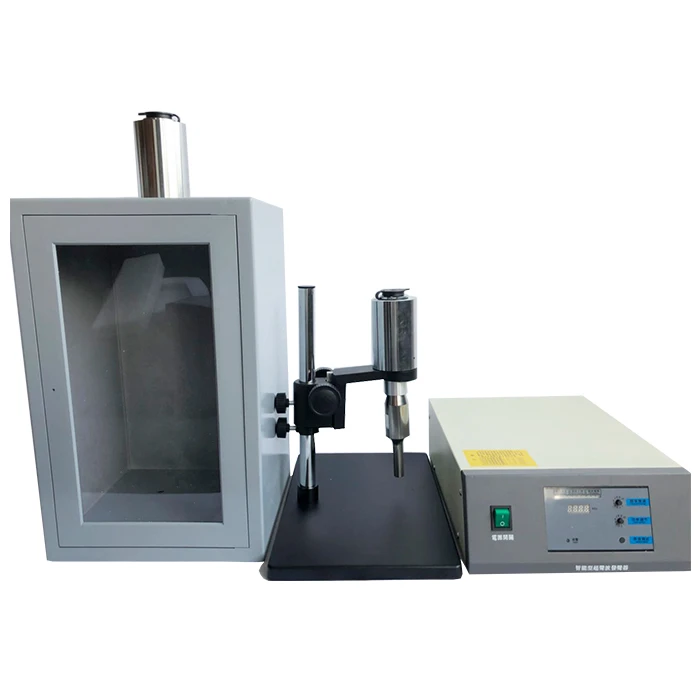

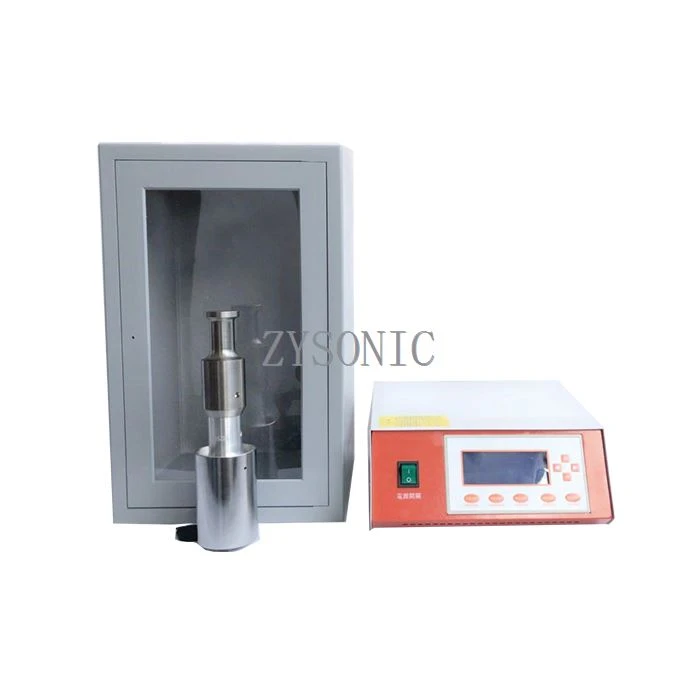

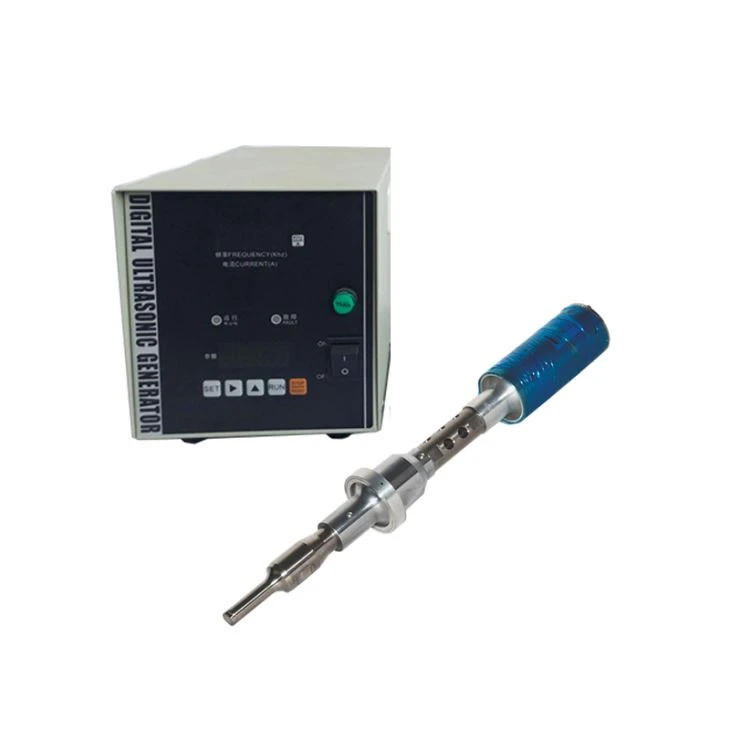

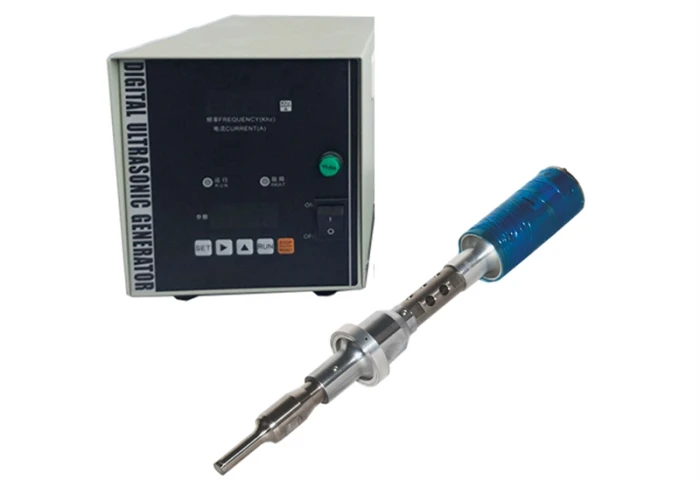

Ultrasonic Processor for Labs

Typical applications of ultrasonic homogenizers include sample preparation, disintegrating and cell lysis, homogenizing, dispersing and disaggregation, particle size reduction and the acceleration of chemical reactions (sonochemistry)....

Send Inquiry

Typical applications of ultrasonic homogenizers include sample preparation, disintegrating and cell lysis, homogenizing, dispersing and disaggregation, particle size reduction and the acceleration of chemical reactions (sonochemistry).


we offer a wide range of ultrasonic homogenizers to be used for these applications in a wide range of volumes from approx. 200mL to 5000mL. The selection of the ultrasonic processor depends on the sample volume to be sonicated. The table below, lists all laboratory devices and the recommended volume respectively.

Power (W)

Frequency. (kHz)

Type Volume (mL)

Amplitude(μm)

1000w

20khz

500-5000

110-120

500w

28khz

200-2000

35-50

300w

40khz

200-500

20-30


(ultrasonic demulsification)


for 20khz and 28khz, there are titanium alloy TIPS at the top of the horn, to prevent the horn of ultrasonic cavitation, so for long time working, you only need to change the TIPS, one pcs cost 20USD,for a complete titanium horn, more than 200USD.


for changing the TIPS, use the wrench, the connection is by screws, easy to remove and install by clients

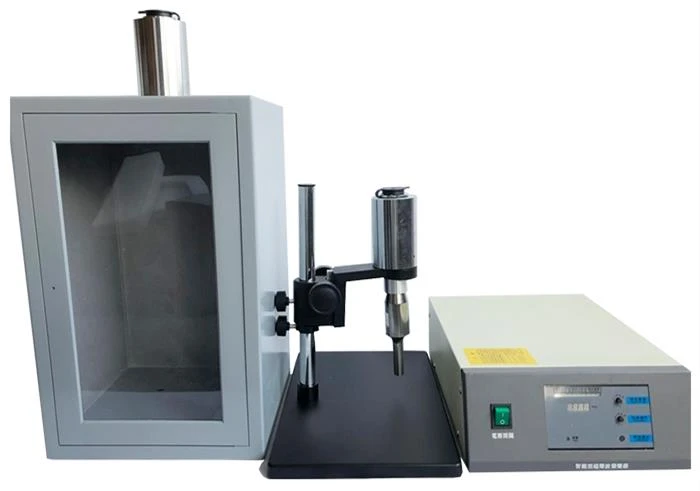

(designed for high temperature liquid material, over 100 degrees)
