Ultrasonic Emulsification Machine

ZY Sonic series of ultrasonic emulsifying material is mainly used in petroleum, chemical process in the oil-water emulsion, or other materials, micro emulsion, can also be used for light industry, nano-materials, food and pharmaceutical sectors such as liquid handling....

Send Inquiry

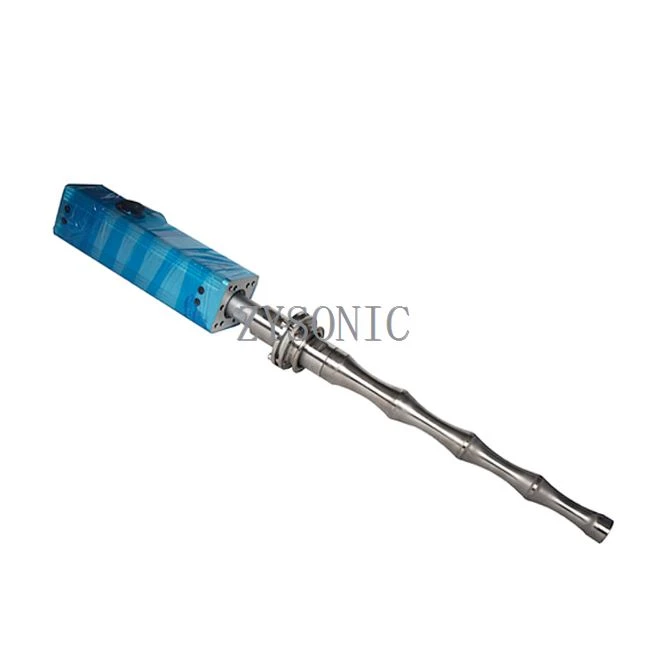

Ultrasonic emulsification machine

Item:ZYS-3000


Details:

ZY Sonic series of ultrasonic emulsifying material is mainly used in petroleum, chemical process in the oil-water emulsion, or other materials, micro emulsion, can also be used for light industry, nano-materials, food and pharmaceutical sectors such as liquid handling.

Main features:

--shaped ultrasonic emulsifying device material is high-power ultrasonic transducer horn immersed directly in the reaction liquid, so that the sound directly into the reaction system, without having to clean the tank through the wall of the reactor is passed. The advantage is the ability to be a lot of energy directly to the reaction medium, effectively converted into electrical energy to mechanical energy, and can be transported to change the magnitude of the transducer to control the size of ultrasonic energy.

-- The product is scalable

(1) optional cooling water, cooling water circulation devices and constitute a special double glass reactor cooling water system, to achieve -5-100 ℃ temperature range of any point of precise temperature control, avoid overheating the sample caused by tissue damage, compared with traditional ice bath cooling more convenient and accurate.

(2) optional magnetic stirrer. Be processed can be increased by mixing the emulsion sample rate, the treatment effect better.

Standards Approval: CE approved


Description

Type

Power

1000W

1500W

2000W

3000W

Frequency

20Khz

Amplitude/power adjustment range

50-100%

20-100%

Temperature

<100℃

Volume of reactor

5-100L

Standard Spec

Ultrasonic device + Digital Generator

Optional configuration

Stainless steel reactor, Remote  communication interface, flow meter
