Ultrasonic Extraction Machine

Ultrasonic Extraction Machine

The disintegration of cell structures (lysis) by means of ultrasound is used for the extraction of intra-cellular compounds or for the microbial inactivation....

Send Inquiry

The disintegration of cell structures (lysis) by means of ultrasound is used for the extraction of intra-cellular compounds or for the microbial inactivation.

Ultrasound is often used to improve the extraction of lipids and proteins from plant seeds, such as soybeans or other oil seeds. In this case, the destruction of the cell walls facilitates the pressing (cold or hot) and thereby reduces the residual oil or fat in the pressing cake. The influence of continuous ultrasonic extraction to the yield of dispersed protein was demonstrated by Moulton et al.

The sonication increased the recovery of dispersed protein progressively as the flake/solvent ratio changed from 1:10 to 1:30. It showed that ultrasound is capable to peptize soy protein at almost any commercial throughput and that the sonication energy required was the lowest, when thicker slurries were used.

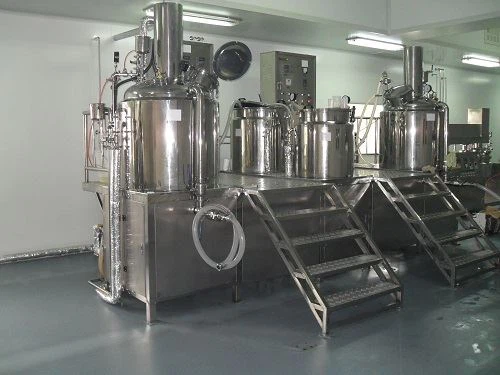

ultrasonic extraction machine (1).jpg


Description

Power

1000W

1500W

2000W

3000W

Frequency

20Khz

Amplitude/power adjustment range

50-100%

20-100%

Temperature

<300℃

Volume  of reactor

5-100L

Standard  Spec

Ultrasonic device + Digital Generator

Optional  configuration

Stainless steel reactor, Remote communication interface, flow meter, pump, mechanical mixer



ultrasonic mixer.jpg

Application of Ultrasonic Sonochemistry:

3000w 20khz ultrasonic mixing machine for sonochemistry

• Cell disruption • Pharmacy sample prep • Homogenization • Emulsification • Nanoparticle dispersion • Atomization • Graphene dispersion • Biodiesel making; • Liquidation, • Crystallization, • Extraction, • Wastewater treatment, • Accelerated reaction, • kill microbes(cell disruption).
