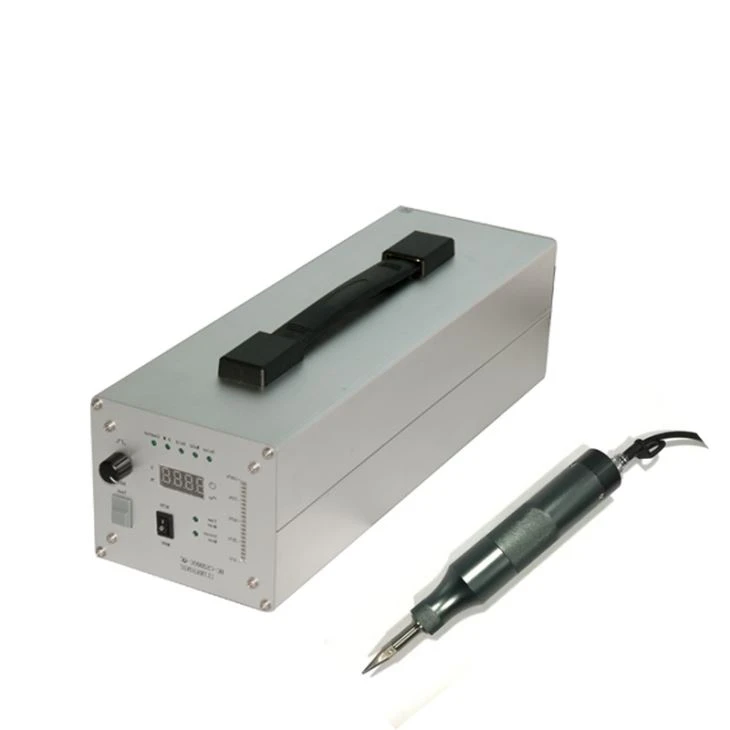

Ultrasonic Plastic Cutting Machine

Ultra-Cutter Ultrasonic Cutting Systems are used for cutting textiles, thermoplastic films, rubber woven and non-woven fabrics. The systems can be used as hand-held units, but they can also be integrated into automated equipment....

Send Inquiry

Ultra-Cutter Ultrasonic Cutting Systems are used for cutting textiles, thermoplastic films, rubber woven and non-woven fabrics. The systems can be used as hand-held units, but they can also be integrated into automated equipment.

A one-piece construction of the horn blade removes breakage and energy loss. The horn replaceable carbide cutting tips for an extended service life.

Ultrasonic cutting advantage and features:

1.The cutting incision is smooth, reliable, accurate trimming,

2.It can sealing the fabric when cutting. It is no deformation, no warped edge,.

3.No burry and no any silk out from the fabric, no wrinkle, no any deckle edge after cutting.

4.The working is stable and cutting speed is fast, non-stick knife, etc

5. Easy to operate, no need professional person, save time and labor force

6.Workers will be not tired after long operate

7.Can be install onto the PLC robotic arm

8.It can handheld working and install onto the hand pushing wheel bracket.

Main configuration:

1*pcs oscillator(transducer,booster,cutting blade),

1*pcs Aluminum alloy for handheld holding,

1*pcs generator (drive power supply)

Type

ZYS-30K

Frequency

30Khz

Power

1000W

Overall dimension

Generator

120×190×380 mm

Cutter

φ46*227 mm

Weight

Generator

3.6 kg

Cutter

0.6 kg

Power Supply

220V 50Hz


Material

Thickness(mm)

Amplitude Percent

Cutting speed m/min

Fabric

1-4

50%

4-10

Rubber

5-15

60-80%

2-5

Plastic

2-5

75%

2-4

Leather

2-5

60%

4-10
