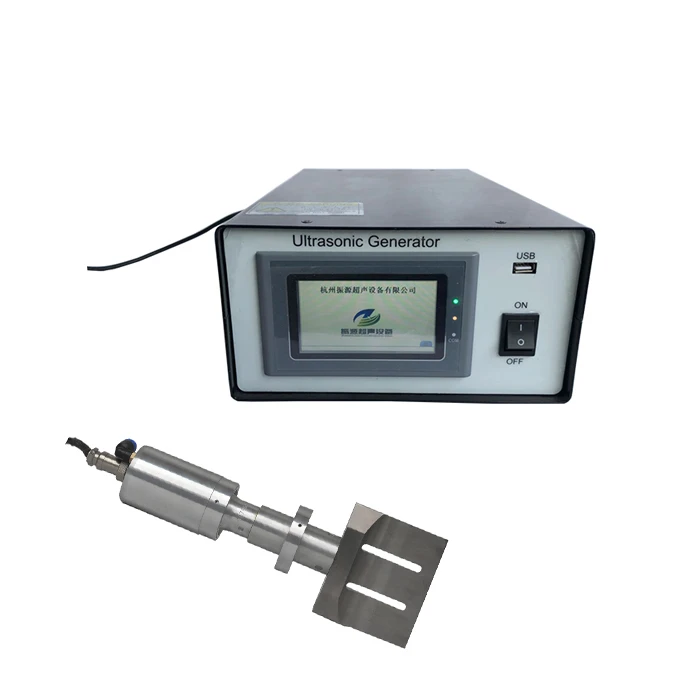

Ultrasonic Rubber Cutting Machine

Our offered range of Ultrasonic Rubber Cutter does not emit noise and smoke. These are compact in designs and do not require large installation areas. Easy to attach to various automated machines, these rubber cutting machines are ideal for tread, nylon, sidewall and apex....

Send Inquiry

Our offered range of Ultrasonic Rubber Cutter does not emit noise and smoke. These are compact in designs and do not require large installation areas. Easy to attach to various automated machines, these rubber cutting machines are ideal for tread, nylon, sidewall and apex. We are the prominent manufacturer in this industry and thus comply with the industry standard while designing this Ultrasonic Rubber Cutter.

Features:

●High speed and efficiency

●Ensures no deformation of the compound

Used in making of:

●Tire

●Cable foreskin materials

●Hoses

●Gaskets

●Chemical-resistant equipment lining

The Ultrasonic Cutting Systems can easily cut to Food ( Cakes, Pies, Fish, Snack, Meat, baked Cokkies, Chees, Vegatables, Candy, Confectionery, Ice Cream) Rubber, Tyre, Resin, Cloths Non-Woven, Film, Ribbon, CD, Foam, Cardboards, Bonded Textile, Craft items, Glass and composite material in which various products.

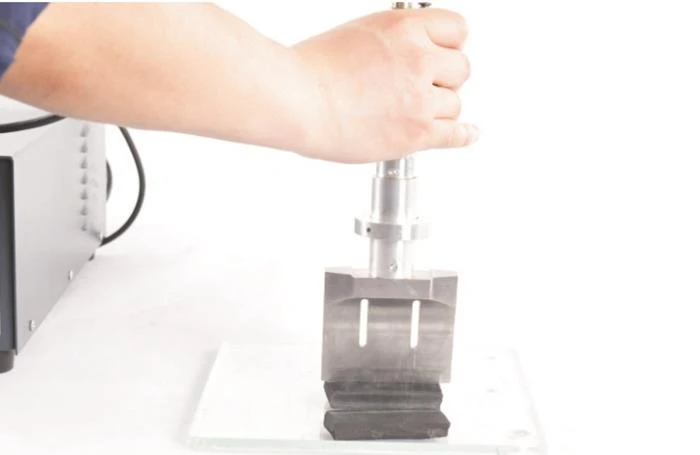

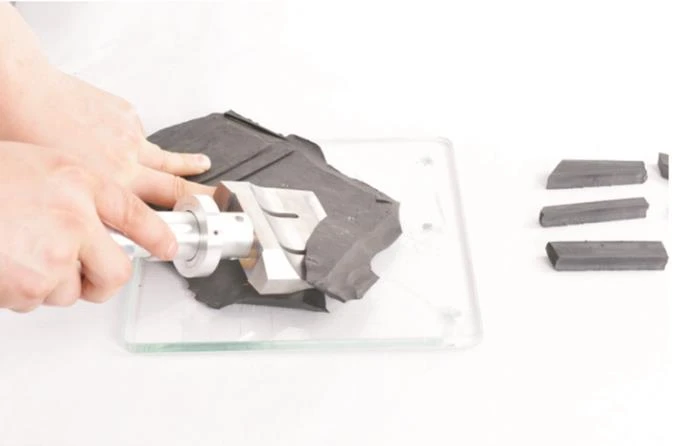

The Ultrasonic cutting horn, which is vibrating at a high frequency, creates a nearly friction-free environment between the horn and the product, its blade vibrate with an amplitude of 10-70 µm in the longitudinal friction. The vibration is microscopic, so it cannot be seen the movement repeats 20,000 or 40,000 times per seconds.

Features

●Hassle Free Working

●High Accuracy & Efficiency

●Noise Free Operation

●Ultrasonic Vibration reduces friction resistance between blade  and material which enable blade to cut smoothly without any deformation.

●Ultrasonic Vibration reduces fouling of material on the blade  which reduces downtime to clean the production system.

Machine

Ultrasonic Cutter

Frequency(KHz)

40KHz

20KHz

Power

200 W

500 W

Cutting Blade / Horn

Titanium

Titanium

Weight

As per Product

As Per Product

Voltage(V)

220V

220V
