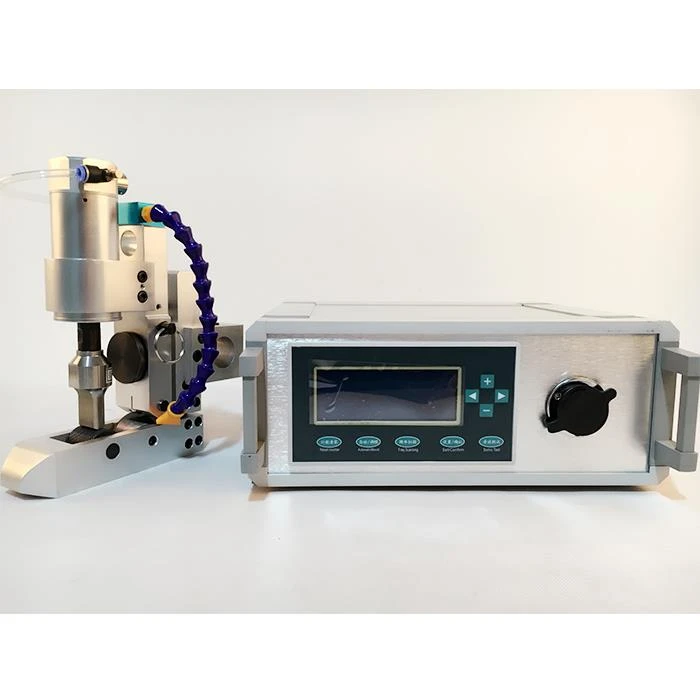

Ultrasonic Fabric Cutting and Sealing Machine

Advantages

compact equipment very easy and fast(2mn) to adjust mechanically and to use;

safety of product slitting by detection of non-slitting and detection of sonotrode rising;

Very easy replacement of the slitting blade, which is very accessible;

Components:

One complete ultrasonic sealing head, steel or titanium alloy, 40Khz transducer, with fan-cooled, ceramic cutting blade, engraved wheel, mechanical slitting device;

One digital generator, adjust the amplitude between 50-100%;

3 cables, supply, ultrasonic, machine and head connection to operate remote controls, overload, amplitude piloting.

Technical Features:

To be installed on machines or lines;

Sealing on engraved wheel, followed by slitting through pentagonal blade;

Stationary sonotrode and rotary engraved wheel pulled by the product;

Widths of standard sealing : 10 mm/ 20 mm;

Speed: up to 8 m/minute, according to products to be cut and customer's specifications.

Tension: 210-230V, 50/ 60Hz, single phase current(entirely electrical equipment).

Power: up to 300W, Frequency 40Khz.
