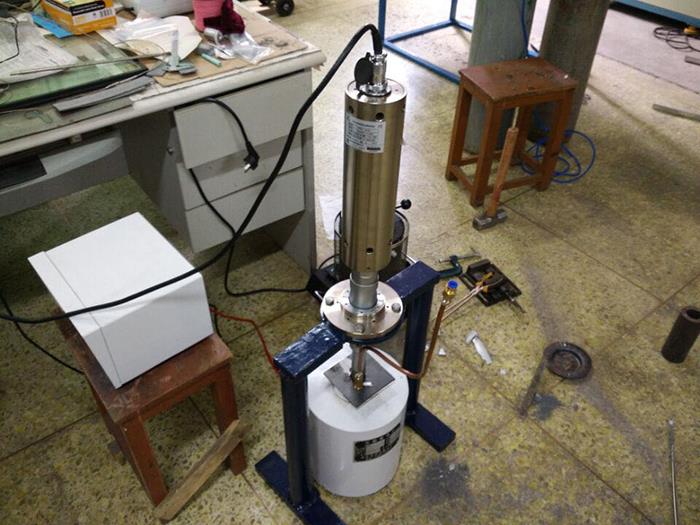

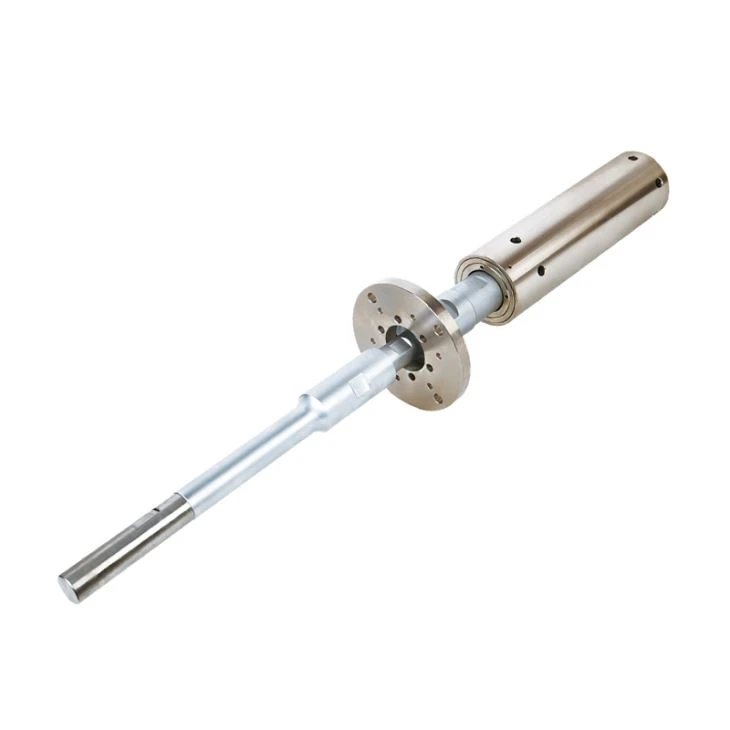

Ultrasonic Metal Melt Processing Equipment

Ultrasonic Metal Melt Processing Equipment

Ultrasound applied in the metal melt processing there are also two special difficulties, namely, high temperature and corrosion....

Send Inquiry

Ultrasound applied in the metal melt processing there are also two special difficulties, namely, high temperature and corrosion.


We all know that the core component of the piezoelectric ultrasonic transducer is the piezoelectric ceramic piece, it is only after a high voltage polarization has a piezoelectric properties. If temperature exceeds 80 ℃, the piezoelectric ceramic is depolarization, piezoelectric performance will decline, and the drop is not reversible.

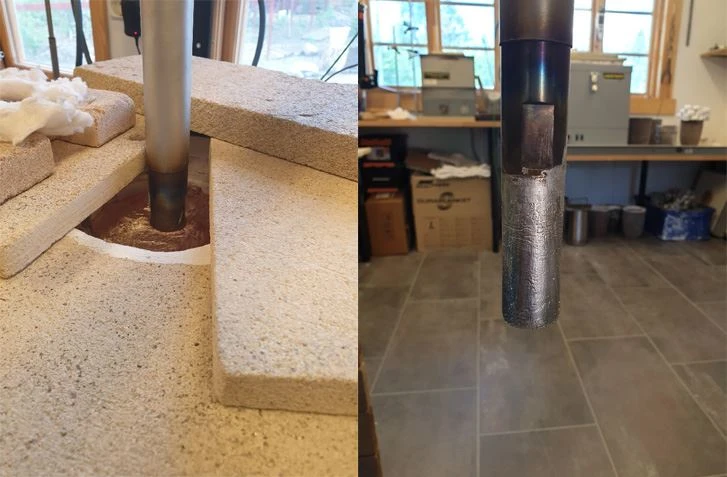

Followed by the metal melt temperature is generally high, the temperature of the black metal even more than one thousand degrees. Launch head to immersed in the melt, but also high power ultrasonic launch, will be affected by the ultrasonic dual role of corrosion and the molten metal liquid corrosion.

This processor is proposed to design and manufacture of ultrasonic metal melt with high requirements. Fortunately, after successful people unremitting efforts, all these problems have been solved. We will according to the present situation and the requirements of users, tailored to meet the requirement of the users to use metallic melts processor.


Industrial Type

Parameters:

Type

ZYM-05

ZYM-10

ZYM-15

ZYM-20

ZYM-30

Power

500W

1000W

1500W

2000W

3000W

Frequency

20Khz

Amplitude/power adjustment range

20-100%

Temperature

<800℃

Electric Power

220V 50Hz

Diameter of Horn

30 mm

50 mm
