Ultrasonic Melt Processing Equipment

High-power ultrasonic metal melt treatment system driven by ultrasonic vibration components and special ultrasonic power of two parts: ultrasonic vibration components mainly including high-power ultrasonic transducer, ultrasonic transformers, tool head (launch), is used to generate ultrasonic......

Send Inquiry

High-power ultrasonic metal melt treatment system driven by ultrasonic vibration components and special ultrasonic power of two parts: ultrasonic vibration components mainly including high-power ultrasonic transducer, ultrasonic transformers, tool head (launch), is used to generate ultrasonic vibration, and vibratory energy to the launch of metallic melts. Transducer the input electrical energy into mechanical energy, the ultrasound. The form is a transducer in longitudinal slip movement back and forth, amplitude generally within a few microns.

So the amplitude of the power density is not enough, can not be used directly. The amplitude according to the need to enlarge the amplitude of design, isolate the metal melt and heat transfer, at the same time also have the effect of fixed the ultrasonic vibration system. Tool head is connected with the amplitude and the amplitude to ultrasonic vibration is passed to the tool head energy, again by the tool head would launch ultrasonic energy into the metallic melts.

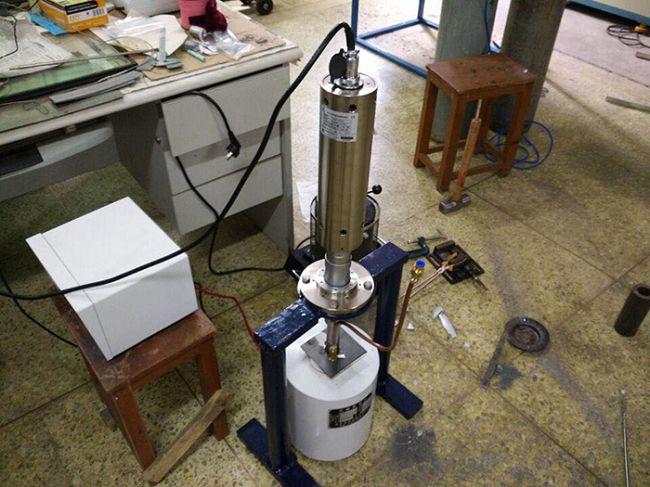

Ultrasonic Melt Processing Equipment(001).jpg

Parameters:

Type

ZYS-05

ZYS-10

ZYS-15

ZYS-20

ZYS-30

Power

500W

1000W

1500W

2000W

3000W

Frequency

20Khz

Amplitude/power adjustment range

20-100%

Temperature

<800℃

Electric Power

220V 50Hz

Diameter of Horn

30 mm

50 mm
