Ultrasonic Mixing Machine

Ultrasonic mixing machine are the new solution for your batch and inline mixing applications such as for the incorporation of solids,...

Send Inquiry

ultrasonic mixing machine


Ultrasonic mixing machine are the new solution for your batch and inline mixing applications such as for the incorporation of solids, the preparation of homogeneous dispersions, the deagglomeration and size reduction of particles, hydration, solubility and rapid blending, instead of mechanical mixing or working together with mechanical mixer. our ultrasonic machines handles sub-micron & nano materials as well as fibers – resulting in reliable processing and output of highest quality. The major advantages of ultrasonic mixing is its easy use with abrasive materials, its simple installation in demanding environments, e.g. under corrosive conditions, as well as the fast and destruction-less cleaning and a significantly lower energy consumption than competitive technologies (e.g. rotor-stator mixers, jet mixers, high shear mixers, Ultrasonic mixing).

Type

ZYS-100

ZYS-150

ZYS-200

ZYS-300

Power

1000W

1500W

2000W

3000W

Frequency

20Khz

Amplitude/power adjustment range

50-100%

20-100%

Temperature

<100℃

Volume of reactor

5-100L

Standard Spec

Ultrasonic device + Digital Generator

Optional configuration

Stainless steel reactor, Remote communication interface, flow meter

for industrial type, such as batch application or inline application, all of the frequency is 20khz, but the power you can choose between 1000W - 3000W, and adjust the amplitude percentage from 50-100% or 20-100%.

for batch application, we can help design and install the ultrasonic sonochemistry into the reaction tank, 50liter, 150 liters or even 300 liters, 500 liters.

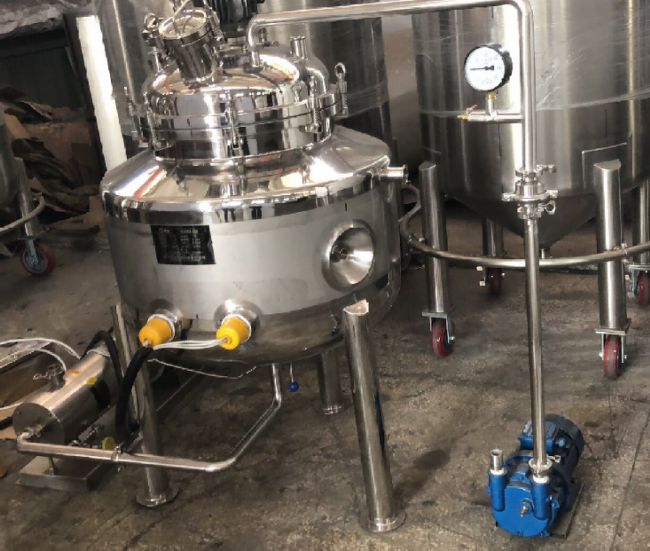

the tank can be vacuum sealed, with heater, mechanical mixer, Visual mirror, temperature, pressure and lever sensor, the client can put the tank into their production line with pump and stainless pipes, like the follow photo here:
