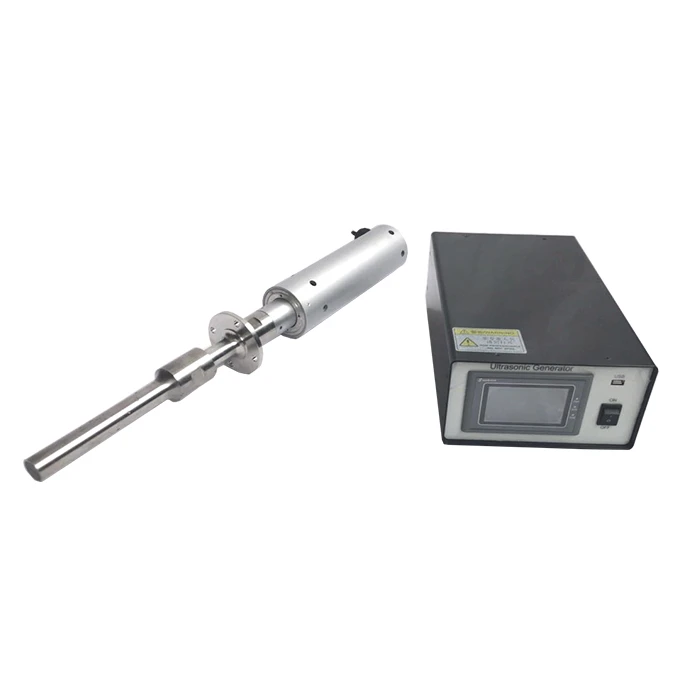

Ultrasonic Liquid Dispersion Machine

The mixing of powders into liquids is a common step in the formulation of various products, such as paint, ink, shampoo, beverages, or polishing media....

Send Inquiry

The mixing of powders into liquids is a common step in the formulation of various products, such as paint, ink, shampoo, beverages, or polishing media. The individual particles are held together by attraction forces of various physical and chemical nature, including Van Der Waals forces and liquid surface tension. This effect is stronger for higher viscosity liquids, such as polymers or resins. The attraction forces must be overcome on order to deagglomerate and disperse the particles into liquid media.

Different technologies are commonly used for the dispersing of powders into liquids. This includes high pressure homogenizers, agitator bead mills, and rotor-stator-mixers. High power ultrasonic dispersion is an interesting alternative to these technologies. When sonicating liquids, the sound waves that propagate into the liquid media result in alternating high-pressure (compression) and low-pressure (rarefaction) cycles. This applies mechanical stress on the attracting electrostatic forces (e.g. van der Waals forces). Ultrasonic cavitation in liquids causes high speed liquid jets of up to 1000km/h (approx. 600mph). Such jets press liquid at high pressure between the particles and separate them from each other. Smaller particles are accelerated with the liquid jets and collide at high speeds. This makes ultrasound an effective method for the dispersing and deagglomeration but also for the milling and fine grinding of micron-size and sub micron-size particles.


Type

ZYS-100

ZYS-150

ZYS-200

ZYS-300

Power

1000W

1500W

2000W

3000W

Frequency

20Khz

Amplitude/power adjustment range

50-100%

20-100%

Temperature

<100℃

Volume of reactor

5-100L

Standard Spec

Ultrasonic device + Digital Generator

Optional configuration

Stainless steel reactor, Remote communication interface, flow meter
