Ultrasonic Chemical Dispersion Machine

Ultrasonic cavitation effect——Acoustic cavitation is refers to under the effect of high frequency sound waves, exists in the tiny air bubbles in the liquid in a series of dynamic process: oscillation, expand, shrink and collapse....

Send Inquiry

Ultrasonic cavitation effect——Acoustic cavitation is refers to under the effect of high frequency sound waves, exists in the tiny air bubbles in the liquid in a series of dynamic process: oscillation, expand, shrink and collapse. In the event of a cavitation, a great difference to local state of liquid, extreme high temperature and high pressure is produced. As in the general conditions difficult or impossible chemical reaction provides a new very special physical and chemical environment

20 KHZ frequency of ultrasonic industry application, already been proved that it is the most efficient, and has large-scale application. Ultrasound in liquid medium, by mechanical action, cavitation effect and heat effect, produce mechanical, thermal, optical, electrical, and chemical and so on a series of effects. Especially high power ultrasonic, can produce strong cavitation, and thus formed in the local instantaneous high temperature, high pressure, vacuum and micro jet.

Advantages of ultrasonic sonochemistry:

1.no need to change customer's existing production equipment and technological process.

2.can be upgraded to a general equipment by using a simple installation .

3. have less investment on a new technology, production and efficiency are improved obviously.

4. no moving parts, no electromagnetic radiation, fixed installation is very simple.

5.suitable for the high pressure high temperature, toxic, explosive dangerous environment application.

6. Low power consumption, adaptation of wide, equipment almost don't have to do any modification.


Type

ZYS-100

ZYS-150

ZYS-200

ZYS-300

Power

1000W

1500W

2000W

3000W

Frequency

20Khz

Amplitude/power adjustment range

50-100%

20-100%

Temperature

<100℃

Volume of reactor

5-100L

Standard Spec

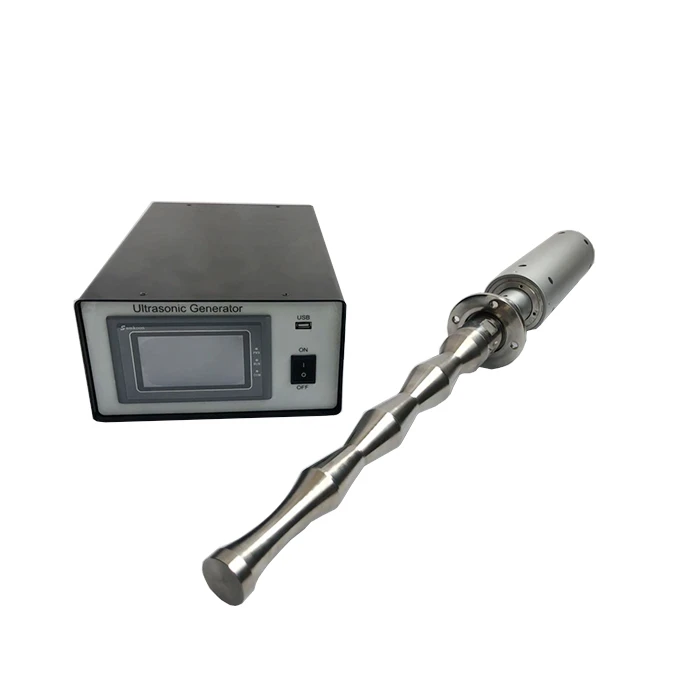

Ultrasonic device + Digital Generator

Optional configuration

Stainless steel reactor, Remote communication interface, flow meter
