Ultrasonic Power Measuring of Sound pressure meter
​Ultrasonic Power Measuring Instrument of Sound pressure meter
Measure the ultrasonic power, frequency of ultrasonic system.
...

Send Inquiry

Ultrasonic Power Measuring of Sound pressure meter

Ultrasonic Power Measuring Instrument of Sound pressure meter

Measure the ultrasonic power, frequency of ultrasonic system.

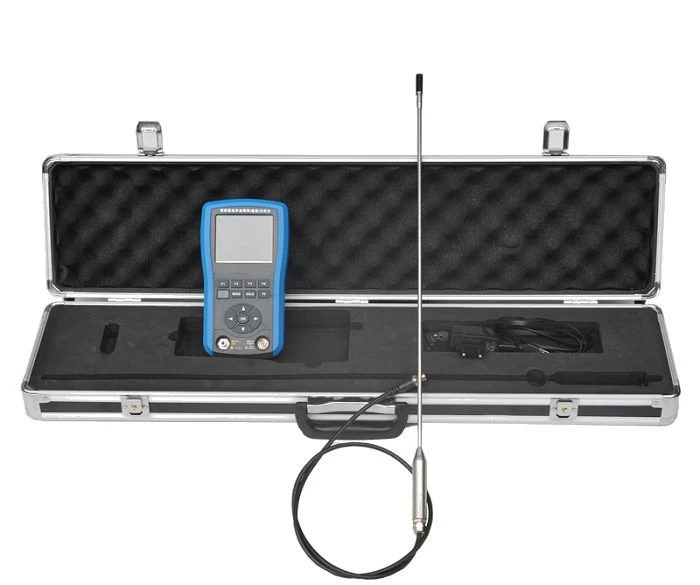

ultrasonic power measuring(001).jpg

Type:ZYS-011 (Frequency display, data upload interface, computer data analysis software)

Measurement Range:0 - 255 w/in2

Measurement Frquency:10 kHz – 200 kHz

Date display: Color screen display, time and energy curve, the maximum, minimum, average, record file number.

Date Storage: Time, instantaneous energy, continuous recording 24 hours, 180 k data (0.5 seconds per point)

Power supply:3.7 V li-ion rechargeable battery

Material of sensor: Stainless Steel

Temperature of Liquid: 0℃- 150℃;

Diameter of sensor:10 mm;

Length of sensor: 1.0m; 0.5 +0.5m cable

Type

ZYS-011

Measuring

Range

0 -255 w/in2

Measuring Frequency

10 kHz – 200 kHz

Data Display

Color display, time and energy curve, maximum value, minimum value, average value, record file number, ultrasonic frequency

Data storage

Time, frequency, instantaneous energy, continuous recording 48 hours,360K point data(0.5”/point)

Electric Source

3.7V Lithium rechargeable battery

Detector Material

Stainless steel sealing pipe

Fluid Temperature

0℃-150℃

Detector Length

1.0 m;   0.5mStainless steel Detector+0.5m cable

Frequency showing

Yes

Data upload

Yes

Computer analysis software

Yes(additional cost)

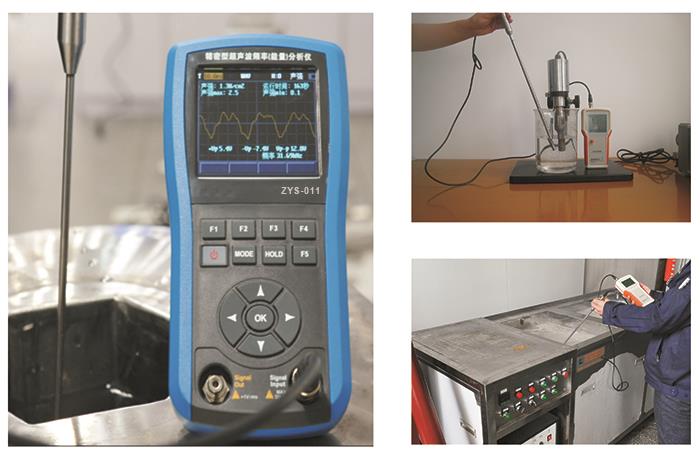

ultrasonic power measuring01.jpg
