Ultrasonic Homogenizing Machine

Ultrasonic Homogenizing Machine

Ultrasonic homogenizing is very efficient for the reduction of soft and hard particles. The homogenization is based on cavitation....

Send Inquiry

Ultrasonic homogenizing is very efficient for the reduction of soft and hard particles. The homogenization is based on cavitation. When liquids are exposed to intense ultrasonication sound waves propagate through the liquid causing alternating high-pressure and low-pressure cycles (approx. 20000 cycles/sec.). During the low-pressure cycle, high-intensity small vacuum bubbles are created in the liquid, as the liquid vapor pressure is attained. When the bubbles reach a certain size, they collapse violently during a high-pressure cycle. During this implosion very high pressures and high speed liquid jets are generated locally. The resulting currents and turbulences disrupt particle agglomerates and lead to violent collisions between individual particles.

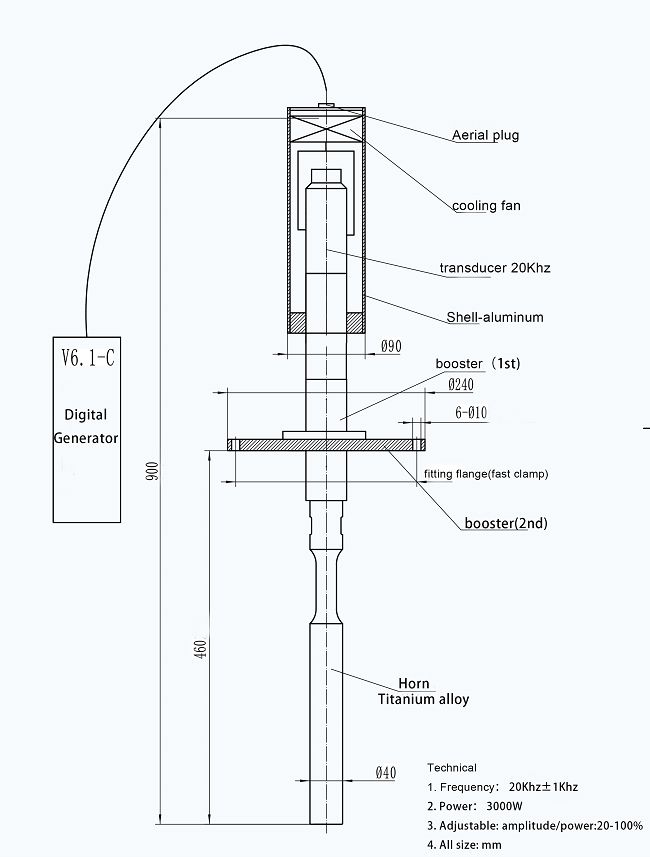

ultrasonic homogenizer machine(001).jpg

Function

1. Ultrasonic vibration source (drive power): The 50-60Hz mains into high-power high-frequency (15kHz-100kHz) power supply to the transducer.

2. Transducer (controller, transducer): The high-frequency electrical energy into mechanical vibration energy.

3 horn: coupling and fixed transducer and tool head, the transducer amplifies the amplitude sent to the tool head.

4. Tool head (into the rod): the mechanical energy and pressure transmitted to the work, but also amplify the function.

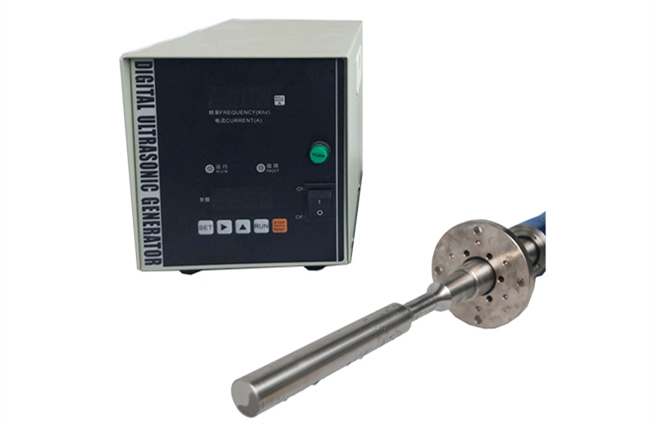

ultrasonic homogenizer machine01_副本.jpg

Type

ZYS-100

ZYS-150

ZYS-200

ZYS-300

Power

1000W

1500W

2000W

3000W

Frequency

20Khz

Amplitude/power adjustment range

50-100%

20-100%

Temperature

<100℃

Volume of reactor

5-100L

Standard Spec

Ultrasonic device + Digital Generator

Optional configuration

Stainless steel reactor, Remote communication interface, flow meter
