Industrial Ultrasonic Homogenizer

Industrial Ultrasonic Homogenizer

Ultrasonic homogenizing is a mechanical process to reduce small particles in a liquid so that they become uniformly small and evenly distributed....

Send Inquiry

Ultrasonic homogenizing is a mechanical process to reduce small particles in a liquid so that they become uniformly small and evenly distributed. Hangzhou Success offers ultrasonic homogenizers for application in lab and production scale.

One main advantage of ultrasonic homogenizers is the low number of wetted and moving parts. This reduces frictional wear and cleaning time. There are only two wetted parts: The sonotrode and the flow cell. Both have simple geometries and no small or hidden orifices. Another advantage is the exact control over the operational parameters influencing the cavitation. ultrasonic processors can be used at oscillation amplitudes from approx. 1 to 80 micron. The liquid pressure can range from 0 to approx. 500psig. As amplitude and pressure are the most influential parameters, the wide operational range of each parameter allows for very gentle to very destructive processing.
industrial ultrasonic homogenizer_副本.jpg

Function

1. Ultrasonic vibration source (drive power): The 50-60Hz mains into high-power high-frequency (15kHz-100kHz) power supply to the transducer.

2. Transducer (controller, transducer): The high-frequency electrical energy into mechanical vibration energy.

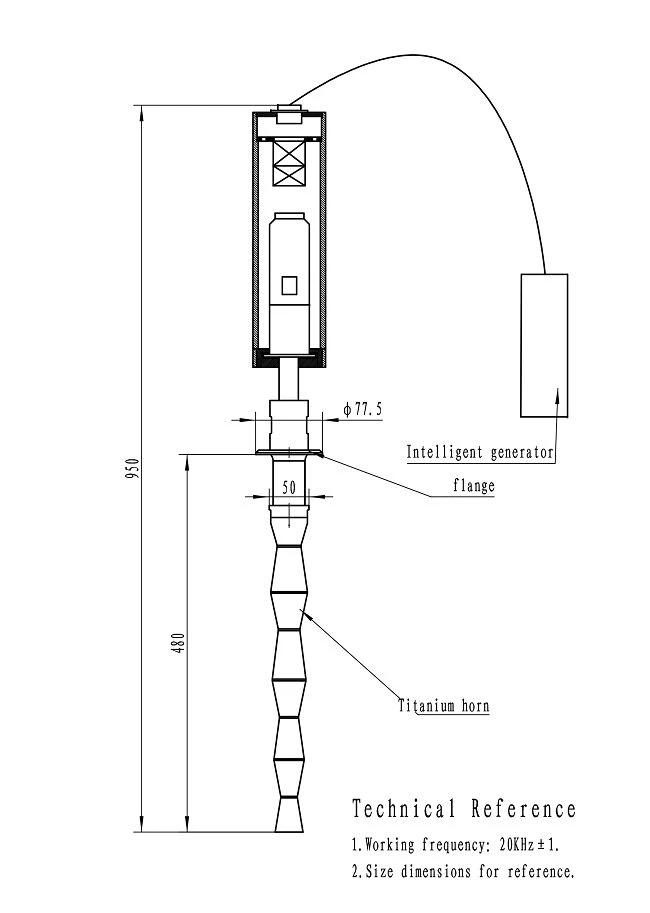

3 horn: coupling and fixed transducer and tool head, the transducer amplifies the amplitude sent to the tool head.

4. Tool head (into the rod): the mechanical energy and pressure transmitted to the work, but also amplify the function.

Type

ZYS-100

ZYS-150

ZYS-200

ZYS-300

Power

1000W

1500W

2000W

3000W

Frequency

20Khz

Amplitude/power adjustment range

50-100%

20-100%

Temperature

<100℃

Volume of reactor

5-100L

Standard Spec

Ultrasonic device + Digital Generator

Optional configuration

Stainless steel reactor, Remote communication interface, flow meter

20K 3000W Ultrasonic Equipment01(001).jpg
