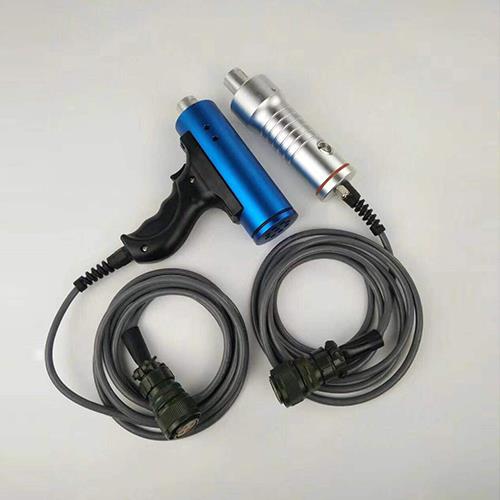

28Khz Ultrasonic Riveting Gun Welding Machine

Ultrasonic cutting machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting, ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning, wrinkling etc

Send Inquiry

Key Specifications/Special Features:

Description:
Ultrasonic spot welder welding principle is to convert 50/60 Hz current into 20, 28, 35 kHz electric energy through ultrasonic generator. The converted high frequency electrical energy is again converted by the transducer into a mechanical motion of the same frequency, and then the mechanical motion is transmitted to the welding head through a set of amplitude modulator devices that can change the amplitude.

The horn transfers the received vibrational energy to the joint of the workpiece to be welded, in which the vibrational energy is converted into thermal energy by friction to melt the plastic.
The short pressure maintained on the workpiece after the vibration stops causes the two weldments to solidify in a molecularly linked manner. Generally, the welding time is less than 1 second, and the obtained welding strength is comparable to that of the body.
Ultrasound can be used not only to weld hard thermoplastics, but also to fabrics and films. The main components of a set of ultrasonic welding systems include ultrasonic generators, transducer/amplifier/welding head triples, molds and frames.

Specifications:
Item No: ZY-W28K
Power: 800W
Generator: Digital generator
Frequency: 28KHZ
Voltage: 220V or 110V
welding head: Aluminum or Titanium

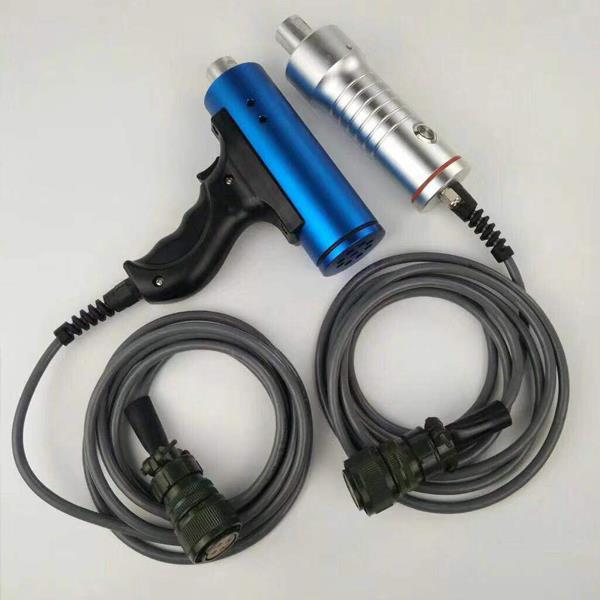

28Khz Ultrasonic Riveting Gun Welding Machine

Type		Handheld
Frequency		28Khz
Power		800W
Overall dimension	Generator	120×190×380 mm
	Cutter	φ46*227 mm
Weight	Generator	3.6 kg
	Cutter	0.6 kg
Power Supply		220V 50Hz

	Gun Type				Pen Type
Frequency	35k	30k	28k	20k	35k	30k	28k
Power	800	1000w	1200w	1500w	800w	1000w	1200w
Diameter of horn Tip	10mm	10mm	12mm	13mm	10mm	10mm	12mm
Diameter of cover	51mm		64mm		40mm	45mm	60mm
Dimension of Gun	100mm×45mm×32mm				--	--	--
Weight of Gun	0.5kg	0.5kg	1.2kg	1.2kg	0.4kg	0.5kg	1.0kg
Digital Generator	●	●	●	●	●	●	●
Analog Generator	●	●	●	●	●	●	●
