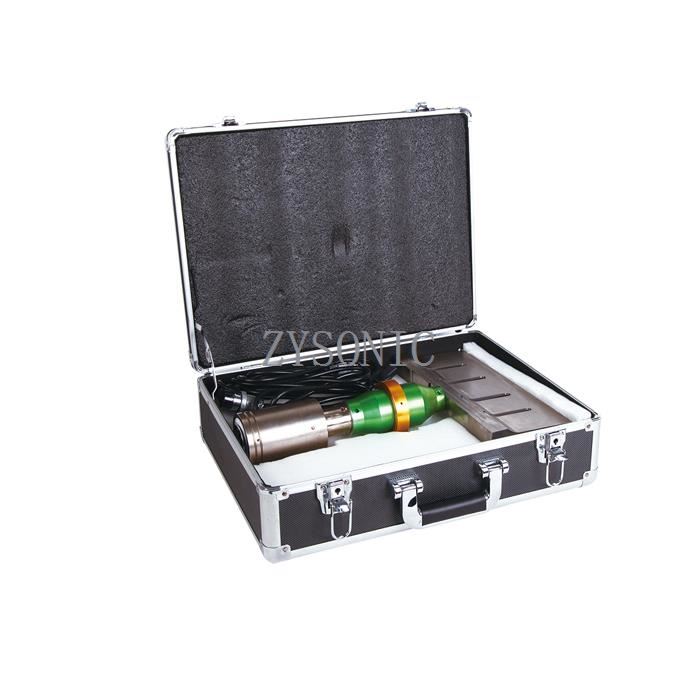

255mm Ultrasonic Food Cutter With Different Blade is composed of ultrasonic transducer (converter) with cover, booster, titanium blade and digital generator.
255mm Ultrasonic Food Cutter With Different Blade can smoothly cut difficult-to-cut materials.
They are small in size and do not require large installation areas. Special equipment is not required for the installation. They are small enough to be hand-held for many operations. They can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.
The ultrasonic cutter is composed of a "transducer" that generates vibration and an "oscillator" that drives the transducer. A piezoelectric element is used for the transducer. When voltage is applied, the piezoelectric element displaces the transducer by a few micrometers. Periodically applying voltage generates vibration. Each object has its special frequency, by which the object is stable and easy to vibrate. By adding an external force that corresponds to that special frequency, a small force can obtain a large vibration. This phenomenon is called resonance.
In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to wring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.
Features:
- New self-developed high-efficiency ultrasonic generator drive technology for stable and reliable operation.
- It can effectively improve the operator's work efficiency and reduce the work intensity.
- Cut food, neat surface, no debris, beautiful appearance. .
- Titanium cutting knives, food grade materials, users can use safely and safely
- Small footprint
- EDG generation system with stable power output
Advantages:
High energy conversion efficiency, more than 90%;
The vibration of the ultrasonic food processing system using high frequency wave to quickly cut food;
Provides a new way to cut piece, cutting, steering, and transfer alignment or different kinds of food;
Makes the cost of production flow minimization;
Especially for cutting high viscosity food;
Cutting is very hygienic;
The cut food looks neat and beautiful;
Suitable for automated assembly line, do not have to make a lot of changes to the original line, saving production costs.
Power 1000W
Generator Digital generator
Frequency 20KHZ
Voltage 220V or 110V
Cutter Dimension 425*255*80mm
Generator Dimension 380*250*150mm
Gross weight 14Kg
