Automatic Cake Bread Ultrasonic Cheese Cutting Machine

Automatic Cake Bread Ultrasonic Cheese Cutting Machine

The ultrasonic cutter cutter directly loads the ultrasonic energy into the cutter, and the cutter becomes a cutter with ultrasonic wave. When cutting materials, the material is mainly softened and melted by ultrasonic energy. The cutting edge of the cutter is only used to locate the cutting seam, output ultrasonic energy and separate materials. This kind of cutting method is suitable for the cutting of thick, thick and long materials which are not convenient to set the chopping board. Such as rubber mixing machine output of raw rubber cutting, pipe cutting, frozen meat, candy, chocolate cutting, cake cutting, printed circuit board, etc
Send Inquiry

The basic structure of the ultrasonic chopping board cutting machine is similar to that of the ultrasonic knife cutting machine, except that the ultrasonic output part is not a cutter, but a traditional ultrasonic plane mold. Here, the mold is equivalent to a cutting board. But this is a chopping board for ultrasonic vibration. The cutter is still traditional, but the requirement of sharp edge is reduced, and the service life of the cutter is greatly prolonged. This cutting method is suitable for the cutting of sheet materials, such as various trademarks, clothing lace, cloth cutting, decorative bead cutting, natural fiber, synthetic fiber, non-woven fabric, artificial resin, paper, film, etc

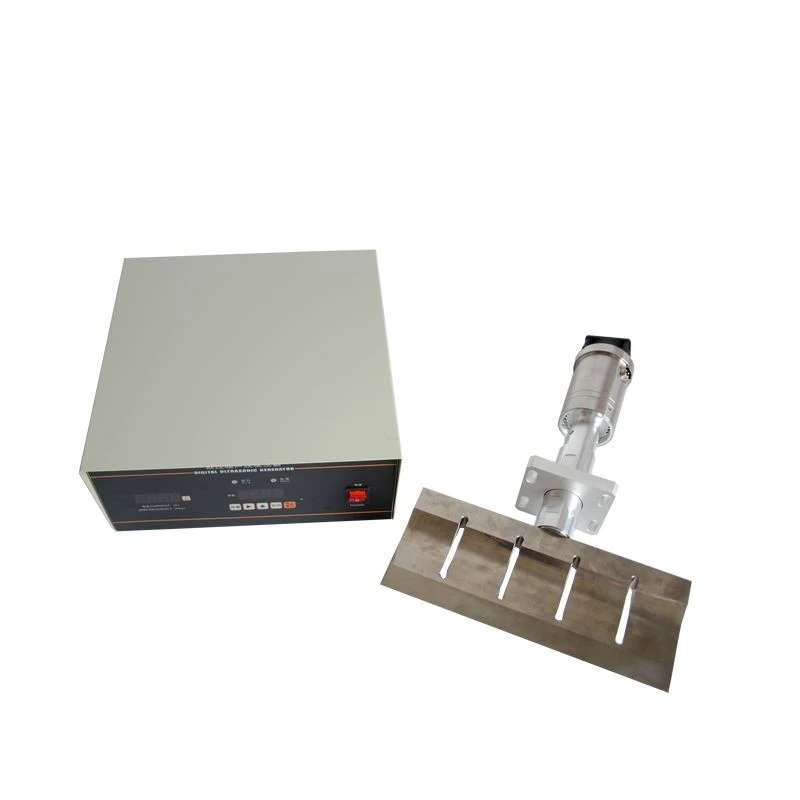

ultrasonic cheese cutting machine

Main technical indicators:

Working frequency: 20kHz, 40KHz

Power: 500W, 100W

Power regulation: shift or continuous

Ultrasonic trigger mode: remote control switch or foot switch

Cutting width: 82.5mm, 120mm, 250mm, 305mm

Material of ultrasonic cutting mould: titanium alloy

Generator Dimension: 330*330*150mm, 7.5kg

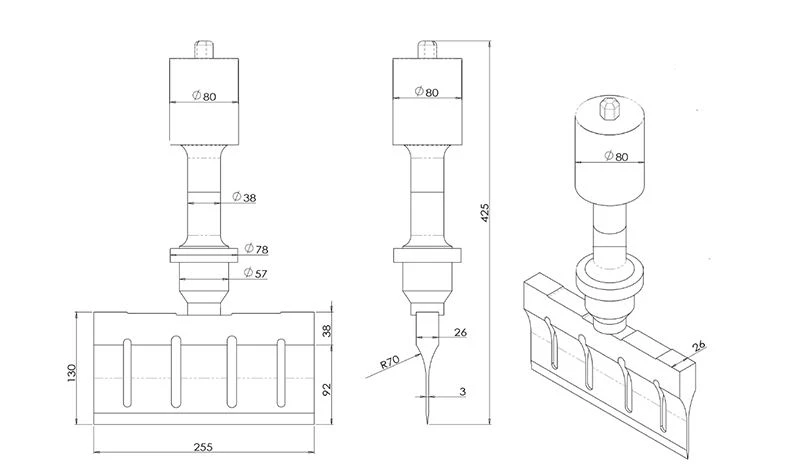

ultrasonic cake cutting machine01

ultrasonic food cutting machine1

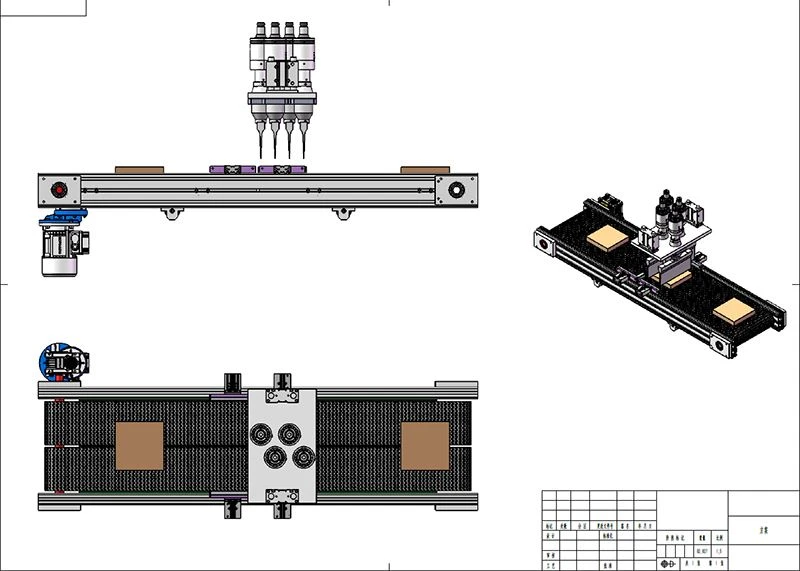

ultrasonic cream cutting machine
