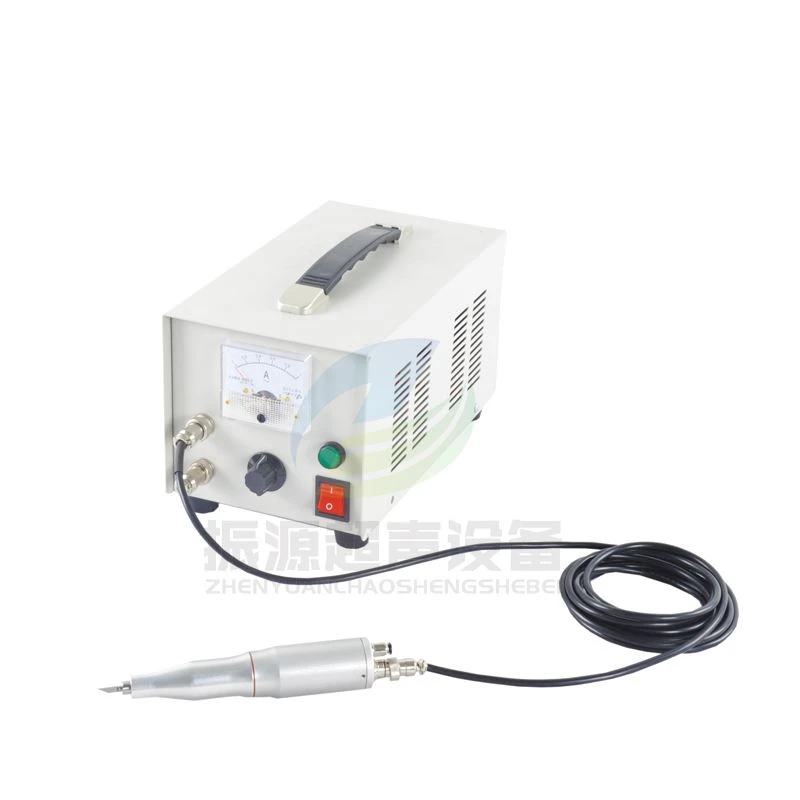

Ultrasonic cutting knife is widely used in circuit board, lamp shell, super hard plastic parts, materials requiring no burr treatment, toner clip, relay analysis, mobile phone battery, LCD panel, vehicle recorder, fire disk identification analysis, commodity inspection and certification analysis, model making industry, wire and cable, rubber slitting, etc
| Cutting Material | Thickness | 40Khz 100W |
| ABS,PE | 2mm/3mm/4mm | 1-4 mm/s |
| Nylon, PP | 2mm/3mm | 2-3 mm/s |
| Non woven fabric | 1-3mm | 2mm/s |
| Raw rubber | 3-5mm | can cut |
| Corrugated paper | 8mm | can cut |
| Linoleum | 2mm | can cut |
Frequency 40KHz
Maximum output power 100W
The weight is about 2.5kg
Dimensions
Case: 155W × 265L × 170h
Handle: Φ 32 × 170
Accessories:
One foot switch;
The blade is 25pcs;
1*1.5mm special hexagon wrench;
2*Set screw m3 × 4L
With 5-25pcs of cutting blade
