High Speed Ultrasonic Strip Cutting Machine is the combination of ultrasonic welding technology and traditional shearing. When the ultrasonic generator is working, the ultrasonic energy is transmitted to the welding head through the ultrasonic transducer, and violent vibration friction is generated with the cutter die, so as to achieve the effect of shearing, which makes the shearing products more beautiful, more firm and more efficient.

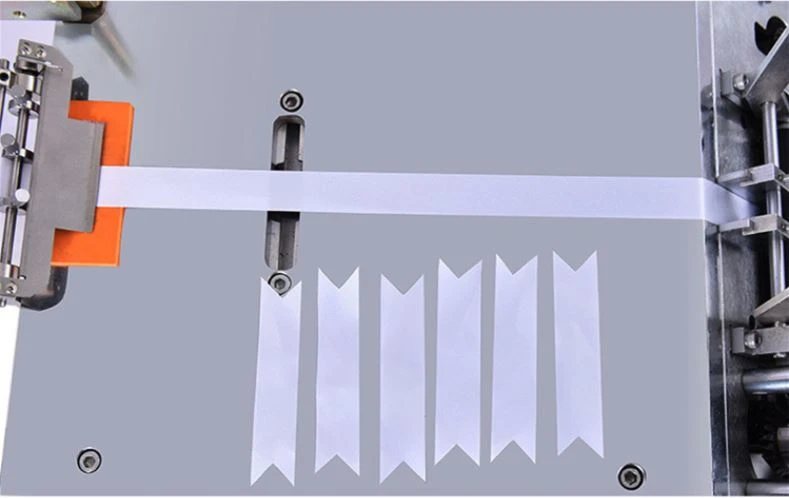

With Ultrasonic Strip Cutting, the non-woven ribbon can be cut into rhombus, trapezoid, triangle and dovetail shape. After changing other suitable grinding tools, it can be cut into other shapes, such as round, oval, square and punching. The angle of oblique cutting can be adjusted according to the needs, so as to reduce the waste of materials in single knife cutting.
The equipment adopts computer intelligent control, LCD display, easy to operate, users can adjust the length, quantity and cutting speed according to their own needs. With automatic stop, automatic feeding, computer counting and other functions, cutting automatic edge sealing, no burr, no blackening, smooth and beautiful.
Technical parameters of Ultrasonic Strip Cutting
Model: rt-80
Power supply: ac220v-240v / 50-60Hz
Power: 2200W
Frequency: 18khz
Pressure: 0.6-0.8mps
Type: ultrasonic shear
Weight: 158kg
Size: 980 mm × 800mm × 1250mm l × w × h
