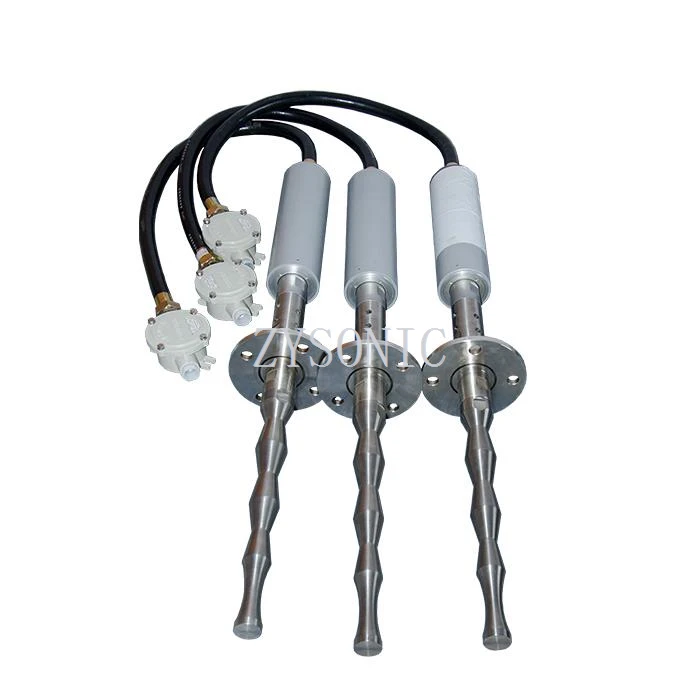

Ultrasonic crushing and dispersing machine
Ultrasonic Dispersing machines are widely used in various industries, and the types of dispersing machines are also diverse. New technologies are constantly added to the process to improve the quality of products.
As a well-known technology, ultrasonic has been widely used in factories and research institutions, not only because of the characteristics of ultrasonic waves, but also because ultrasonic waves can achieve the effects that the original equipment cannot achieve. Ultrasonic waves can increase the rate of chemical reactions, shorten the reaction time, increase the selectivity of the reaction, and also stimulate chemical reactions that cannot occur in the absence of ultrasonic waves.
Ultrasonic disperser parameters:
Disperser type: ultrasonic disperser
Material Type: Liquid-Liquid
Ultrasonic Crushing And Dispersing Machine technical parameter:
1. Power / Generator: Power Output; 1000-3000W Frequency; 20KHZ
Continuously adjustable mode
2. Ultrasonic transducer: Piezoelectric ceramic Diameter: 50mm
Output power: 1500W
3. Standard emitter: titanium alloy Material grade: TI-6AL-4V
Diameter: 50mm Shape: Nine-section
4. Power: 220V, 50/60HZ
Features
Intelligent power supply: convert 50-60Hz mains into high-power high-frequency power supply to the transducer.
Piezoelectric Ceramic Transducers: Convert high frequency electrical energy into mechanical vibrational energy.
The horn: connects and fixes the transducer and the tool head, and amplifies the amplitude of the transducer and transmits it to the tool head.
Titanium tool head: It transfers mechanical energy and pressure to the work, and also has the function of amplitude amplification.
Connecting bolt: Connect the above components tightly.
