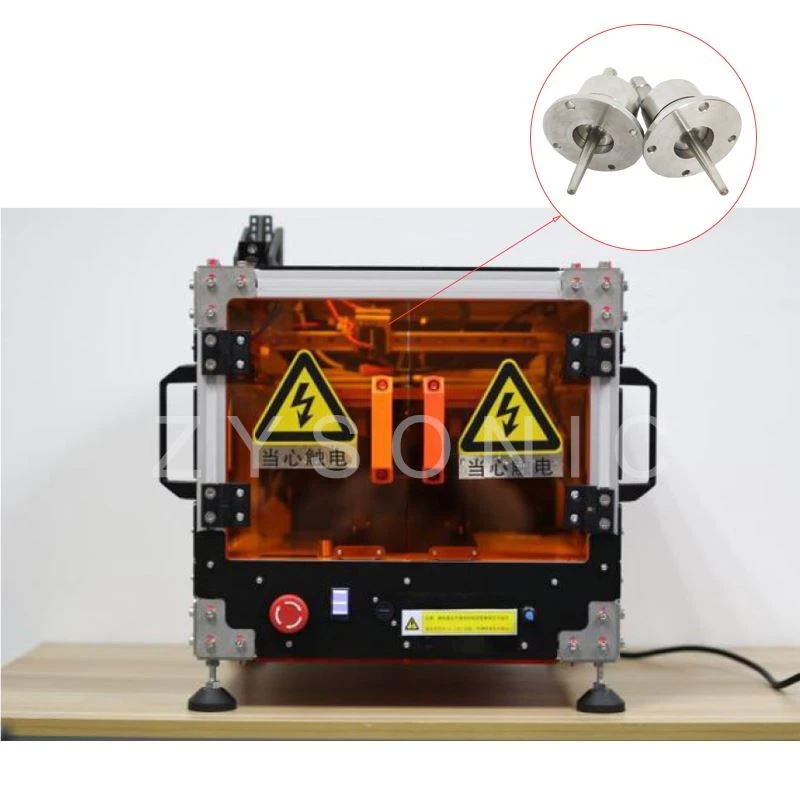

The spraying instrument is mainly composed of precision motion control module, electrostatic spraying module, precision injection pump, vacuum heating platform and other components; Desktop design, compact and reasonable structure, the size of the whole machine is only equivalent to an ordinary printer; It is easy to be placed in fume hood, experimental platform and other places, and is very suitable for universities and scientific research institutions.

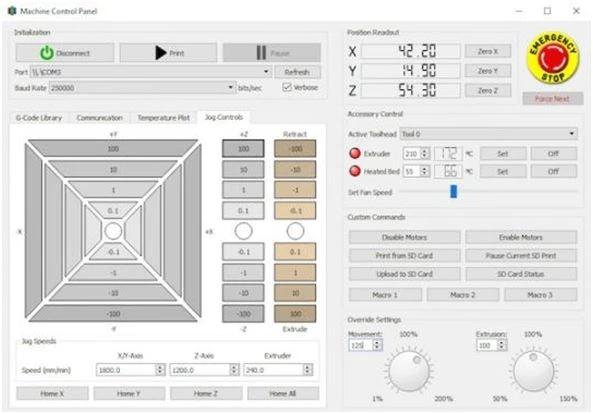

Different parameters can be defined with software, such as spraying speed, and spraying path can be designed with high degree of freedom. After design on the computer, output to the device, avoid installing and operating various control panels on the device.
Effective spraying area: 200 mm × 200mm
Moving speed: 0-15000 mm / min
Maximum spraying quantity: continuous operation
Repeat positioning accuracy ± 0.02mm
Flow setting range 0.01-19.9 ± 1.5%ml/min
Medium viscosity: 50mm2 / s or less
Heating temperature: room temperature to 108 ± 1%℃
Equipment size: 430 mm × 430 mm × 460mm
