Ultrasonic atomization is the use of ultrasonic energy to disperse water, forming 3 μm to more than 28 μM size of water particles, used to humidify the air or other purposes.

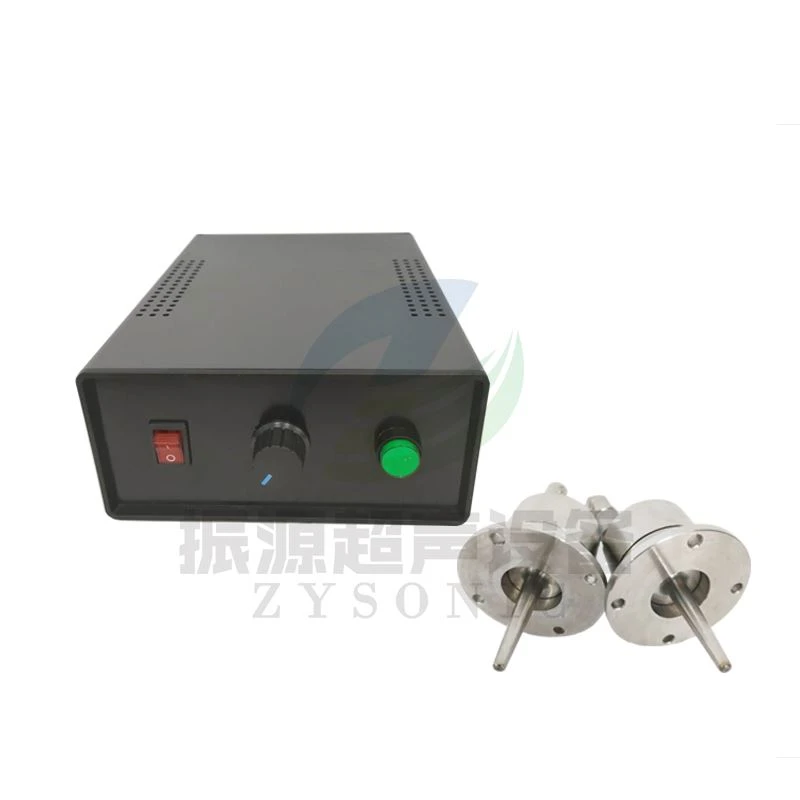

The power source of high-power ultrasonic atomization humidification technology is high-power ultrasonic longitudinal transducer. The whole machine is composed of ultrasonic transducer, horn, transmitter and special driving power supply. The transducer drives the transmitter to vibrate at a high frequency of 50 kHz. The ultrasonic force is applied to the water to disperse the flowing water into fine particles and spray it into the air, so as to achieve the purpose of atomization and humidification. It is characterized by low working frequency, high power, high atomization efficiency, large atomization amount of single transducer, and the atomization amount of one unit can exceed 0.5l/h; there is no requirement for water quality, even sewage containing certain amount of impurities can be atomized; there is no pressure, no noise, no nozzle wear and plug problems. It has the advantages of low energy consumption, small volume of single machine, and adjustable atomization quantity, which is most suitable for industrial application. Through the combination, the atomization amount can meet any requirements of users.

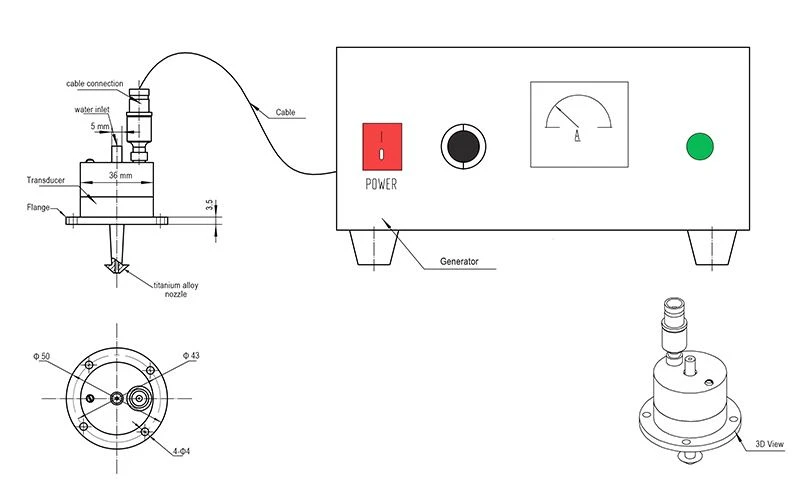

Type | HSW-50 | Material of Horn | Titanium alloy |
Frequency | 50KHz | Cable | 5-10m |
Power | 30W | Generator | 200*150*100mm |
Voltage | 220V/50Hz | Weight | 9KG |
Type | with flange | Power range | 0-I-II |
We also can do the OEM servide, but we need your detailed requirement:
As:
1. Liquid materials;
2. Viscosity of liquid;
3. Spraying requirements;
4. 3D drawing, if you have;
5. You'd better send us pictures/videos or samples of workpieces to us;
This nozzle, we can equipped with pipes(by Silicone hose， PU, PVC or PTFE), pumps(Syringe pump， Peristaltic pump or others)
we have strong design capabilities, customers can tell us the requirements of ultrasonic equipment, if the customer is not familiar with this field, please tell us the application and materials you want, we can design for you.
A: do you have quality certification for your products?
Q: Yes. We are a professional manufacturer of ultrasonic products. Our products have passed CE, ISO9000 and other quality certification.
Do you have sample inspection service?
Q: Yes. As long as you send the sample to us, our engineers will recommend the right machine for you, do experiments and take videos for you. Of course
It's all free.
A: how long is the warranty period for your products?
Q: Our product is guaranteed for one year.
How many countries have you exported?
Q: Our products are exported to all countries in the world, such as Europe, the United States, South America, etc.
5. A: can you make customized products for special purposes?
Q: We are a professional ultrasonic equipment manufacturer with more than 5 years of experience. We can provide you not only standard products, but also customized products.
Do you have any equipment in stock?
Q: Yes, we have stock for each model, regular products can be delivered within 3 days; customized products are shipped according to the actual situation.
7. A: how long is the production cycle of customized products?
Q: Customized products need to be determined according to the difficulty of the products required by customers, and generally will not exceed 10 days.
8. A: do you have any operating instructions?
Q: Yes, we will send the instructions together with the products to our customers
