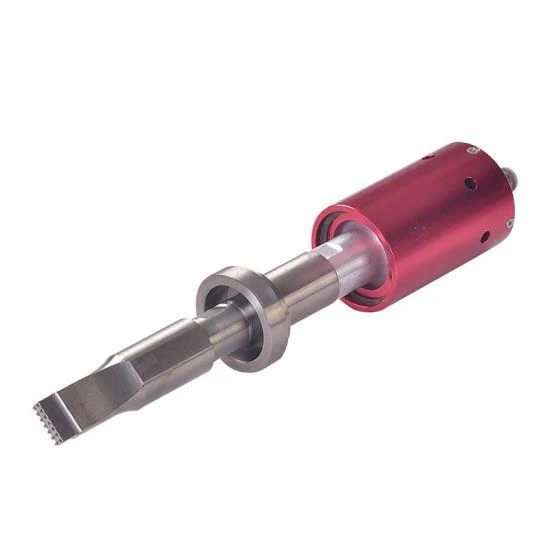

30K Ultrasonic Spot Welder With Customized Head
Description:
This spot welder has design convenient for hand-held operation.
It has completely replaced the process of organic melting agent, and has the characteristics of low energy consumption, high efficiency, no deformation, no pollution, firm welding and convenient operation.
Confirm this machine has good performance on PP, PC, ABS, PA, PS, AMMA plastic welding.
Applications:
Applicable industry: plastic, toys, clothing, electronics, electrical appliances, auto parts, packaging, environmental protection, medical equipment.
Features:
| * Real time frequency automatic tracking function. |
| * Welding time is adjustable |
| * Cooling time is adjustable |
| * Welding amplitude adjustable 10%-100% (1% accuracy) |
| * Overload protection |
| * Voltage protection |
| * Transducer voltage protection |
| * Suitable for staking forming and spot welding |
| * Light weight, convenient for taking. |
| * Welding timer is available for setting the weld time. |
| * Over-load circuit is equipped for protection (voltage, current, phase, temperature and force) |
| * FET power output method |
| * Auto-tuning function |
| * Auto-conpensating amplitude. |
| * Soft-start function available. |
| * Maximum power can be reached within 105mesec. |
Technical Specifications
| Maximum power | 1000W |
| Imput power | AC220V±10V, 50/60Hz |
| Basic frequency | 35Khz (30Khz) |
| Auto-tuning scope | ±1000Hz |
| Ambient temperature | +5~+50ºC |
| Storage temperature | -5~+70ºC |
| Generator weight | 7KG |
| Handgun weight | 1KG |
| Max.work current | 15A |
Advantages:
1. Digital Generator, equipped with a professional cooling system to improve the stability of the equipment.

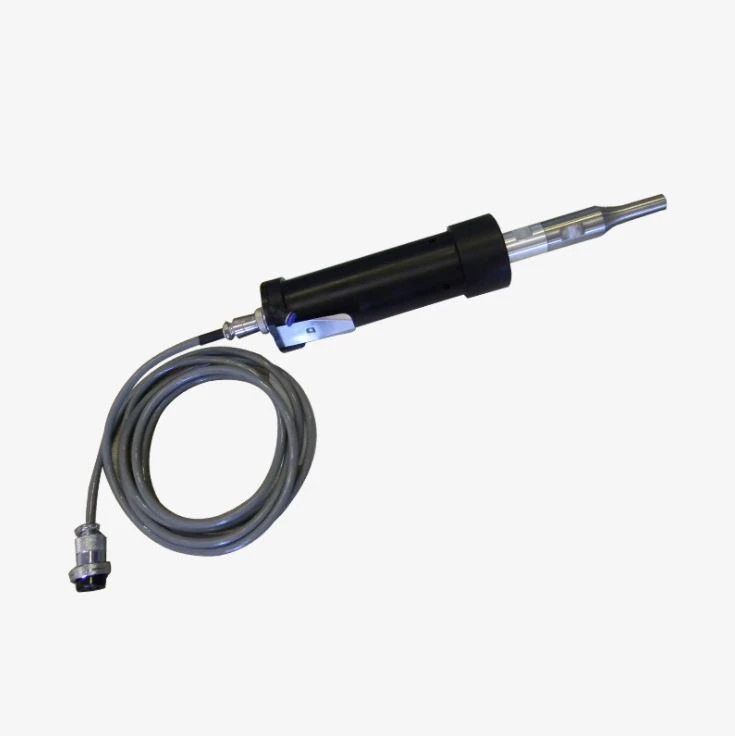

2. The hand-held ultrasonic welding gun can replace different ultrasonic welding heads according to different welding
requirements.
3. High-tech surface technology treatment, corrosion resistance, impact resistance, no rust. With successful high-quality
transducers, the power is nearly double of similar products on the market.
4. The professional anti-shock technology is more lightweight and more precise.
5. Low noise, environmentally friendly working environment.
