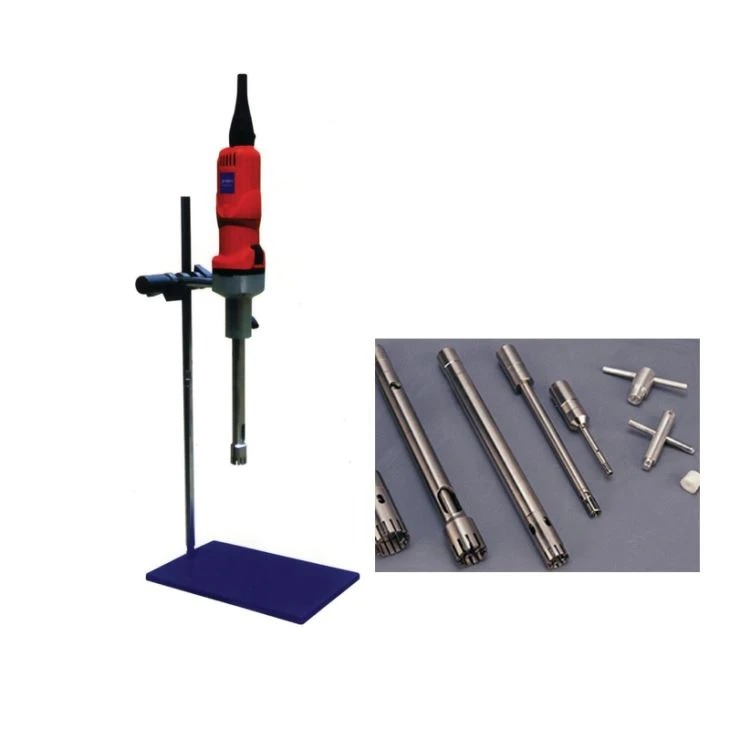

Laboratory High Shear Homogenizing Emulsifier

The S50 laboratory high shear disperser uses the German original motor with high power and high torque. S50 is suitable for high viscosity and large throughput conditions, with a rotational speed of up to 30,000 rpm. S50 can choose more than 20 kinds of working heads with strong compatibility, stable operation and handheld operation.

S50 laboratory high shear dispersing emulsifier, which is composed of high-speed rotating rotor and precise stator working chamber, relies on high linear speed to produce strong hydraulic shear, centrifugal extrusion, high-speed cutting and collision, so that the material is fully dispersed, emulsified, homogenized, crushed and mixed, and finally stable high-quality products are obtained.

S50 is commonly used in pharmaceutical, biochemical, food, nano-materials, coatings, adhesives, daily chemicals, printing and dyeing, petrochemical, paper-making chemistry, polyurethane, inorganic salts, asphalt, silicone, pesticides, water treatment, heavy oil emulsification and other industries. High speed shear dispersion of materials in laboratory. It is used for mixing and dispersing of solid and liquid, and can operate normally under conditions of high solid content and high viscosity.

technical parameter

1. Motor

Input power: 800W

Output power: 450W

Frequency: 50/60HZ

Rated voltage: AC/220V

Speed range: 10000-30000rpm

Noise: 79dB

Weight: 10KG

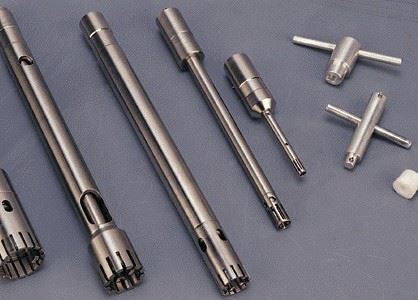

2. Head of Work

Distributed cutter head 50F (multiple dispersed cutter heads can be selected)

Stator diameter: 30mm

Full length: 240mm

Immersible material depth: 200 mm

Suitable volume: 100-5000ml (H2O)

Applicable Viscosity: <4000cp

Maximum Line Speed: 40m/s

Working temperature: <120 C

Material: 304 stainless steel

3. Speed regulation

The motor tail is equipped with electronic speed regulating device. The speed can be divided into seven grades: A, B, C, D, E, F and G. The reference speed of each gear is as follows:

A:.................. 10000 rpm

B:.................. 14000 rpm

C:.................. 17000 rpm

D:.................. 20000rpm

E:.................. 24000 rpm

F:.................. 27000 rpm

G:.................. 30000 rpm

Note: In the case of increasing load, the electronic speed regulating device will automatically adjust and reduce the speed; the external extreme electronic magnetic interference will occasionally cause transient speed instability.
