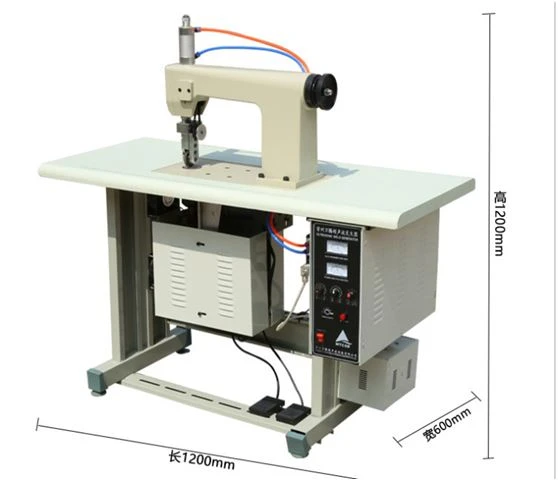

Basic configuration of ultrasonic textile welding machine, non-woven fabric sewing and sealing machine
1. Ultrasonic generator;
2. 20kHz ultrasonic transducer ;
3. Fixed suspension structure of bottom formwork;
4. Single motor speed regulation system;
5. Pattern manual (or optional pneumatic) lifting system;
6. Double pipe rack heavy machine bedplate.
ultrasonic textile welding machine (non-woven fabric welding machine, non-woven fabric sewing and sealing machine) is widely used in lace clothing, lace underwear, packaging ribbon, bedspread, quilt cover, tent, car cover, non-woven fabric bag, filter bag, glasses cloth, dishwashing cloth, activated carbon bag, raincoat, umbrella, table cloth, mouth cloth, chopstick cover, shoe flower, curtain, handkerchief, powder puff, luggage, non-woven fabric products, magnetic soft sand window Door curtain, disposable protective clothing, hat, mask, headdress, headdress and other handicrafts.
The main applicable materials of ultrasonic textile welding machine are chemical fiber cloth, nylon cloth, knitted cloth, non-woven cloth, artificial leather, glue sprayed cotton, PE, PE + cloth composite materials.

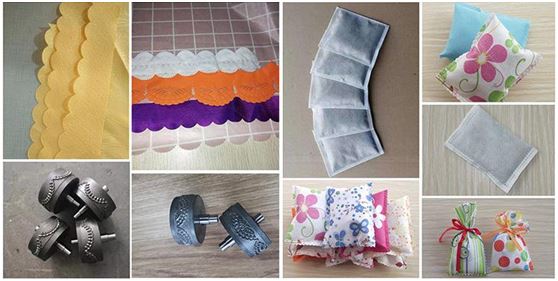

ultrasonic textile welding machine (non-woven fabric welding machine, non-woven fabric sewing and sealing machine) can be embossed, heat sealing, trimming, slitting, sewing, hollowing out and bronzing at one time. There are many kinds of patterns, good three-dimensional effect, no damage to the edge of the fabric and no burr; Preheating is not required during operation, and continuous production can be carried out; The flower wheel is easy to replace, and the flower wheel of various graphics can be replaced according to the needs of customers; The machine also has the functions of slitting and hole cutting, which can achieve the effect of one machine with multiple functions
Function:
1. Edge cutting: single side straight line or curve cutting, and edge melting treatment shall be carried out to make the edge smooth without roughness and burr;
2. Sewing: two or more layers of fabrics are sewn together, wireless needle free instead of sewing, and the welding strength is good;
3. Hole engraving: cut holes of various patterns and conduct edge melting treatment;
4. Strip cutting: single or multiple strips of materials shall be cut at the same time, and edge melting treatment shall be carried out without burrs;
5. Forming: cutting, sewing and embossing at the same time to form the product at one time.
