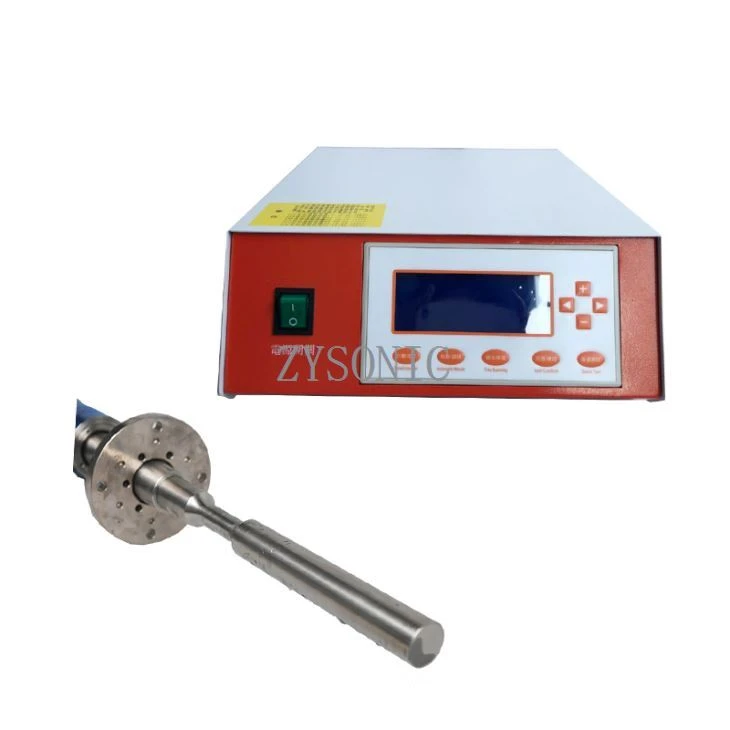

Industrial Ultrasonic Cell Disruption

Industrial Ultrasonic Cell Disruption

Generally, the cell disruption of samples in the lab will take between 15 seconds and 2 minutes....

Send Inquiry

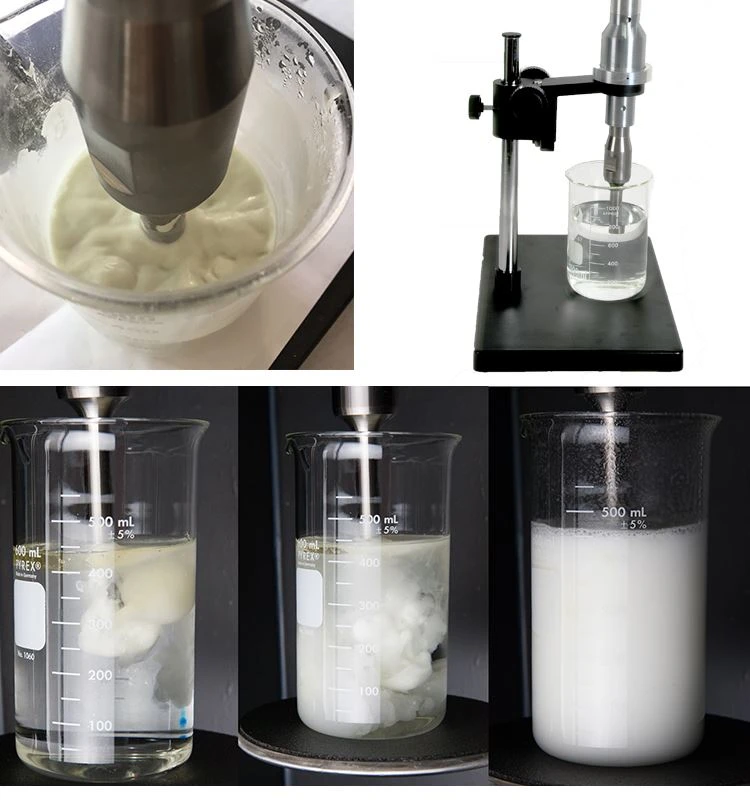

Generally, the cell disruption of samples in the lab will take between 15 seconds and 2 minutes. As the intensity of sonication is very easy to adjust by amplitude setting a sonication time as well as by choosing the right equipment, it is possible to disrupt cell membranes very gently or very abruptly, depending on the cell structure and on the purpose of cell disruption.

The temperature during the process can be monitored by an integrated temperature sensor and can be easily controlled by cooling (ice bath or flow cells with cooling jackets) or by sonication in pulsed mode.

 During pulse-mode sonication, short sonication burst cycles of 1-15 seconds duration allow for heat dissipation and cooling during the longer intermittent periods. All ultrasound processes are completely reproducible and linearly scalable.

industrial ultrasonic cell disruption_副本.jpg

Function

1. Ultrasonic vibration source (drive power): The 50-60Hz mains into high-power high-frequency (15kHz-100kHz) power supply to the transducer.

2. Transducer (controller, transducer): The high-frequency electrical energy into mechanical vibration energy.

3 horn: coupling and fixed transducer and tool head, the transducer amplifies the amplitude sent to the tool head.

4. Tool head (into the rod): the mechanical energy and pressure transmitted to the work, but also amplify the function.

Type

ZYS-100

ZYS-150

ZYS-200

ZYS-300

Power

1000W

1500W

2000W

3000W

Frequency

20Khz

Amplitude/power adjustment range

50-100%

20-100%

Temperature

<100℃

Volume of reactor

5-100L

Standard Spec

Ultrasonic device + Digital Generator

Optional configuration

Stainless steel reactor, Remote communication interface, flow meter
