Ultrasonic Graphene Dispersion Machine and application of graphene (battery paste, paint, etc.) have been applied to more and more manufacturers of ultrasonic graphene dispersing machine, including ultrasonic cleaning machine and energy gathering ultrasonic mode.
Type | ZYS-GS10 | ZYS-GS25 | ZYS-GS50 | ZYS-GS100 | ||
Annual Yield | 10 ton | 25 ton | 50 ton | 100 ton | ||
Frequency | 20Khz | |||||
Power | 3000W /unit | |||||
Total Power | 3000W*6sets | 3000W*12 sets | 3000W *24sets | 3000W*48sets | ||
Amplitude/power adjustment range | 20-100% | |||||
Input Voltage | 220V /380 V 50/60Hz | |||||
Installation Area | 10 m2 | 15 m2 | 20 m2 | 40 m2 | ||
Features | Adopt the Mod-Bus technology based on the network, all operating mode parameters can be remotely controlled by the computer | |||||

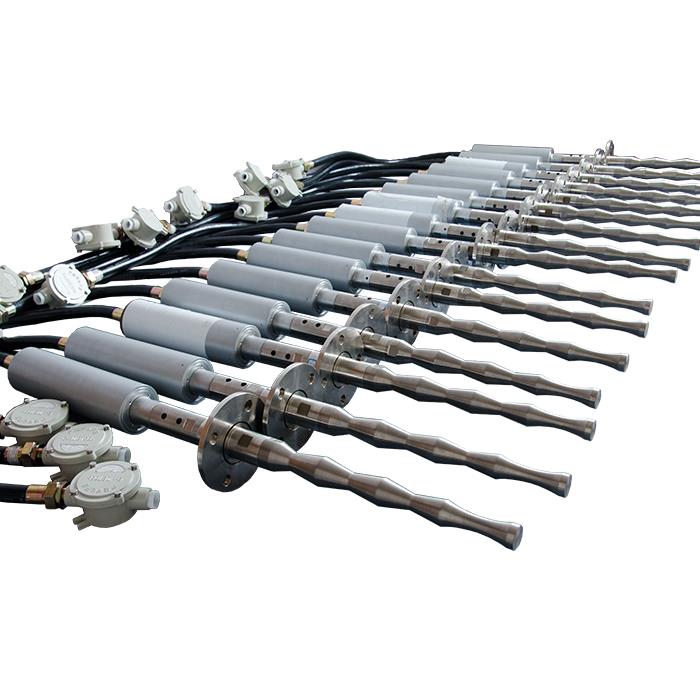

Ultrasonic graphene dispersion machine by high power ultrasonic transducer, ultrasonic generator and reasonable design of ultrasonic probe composition. Power can be measured by a single set of 3000W to ensure stable work
The material of the probe is 100% titanium alloy, and the stable amplitude is about 60 μm.
