Hand Held Ultrasonic Welding Machine

●Amplitude adjustment in 1% increments from 100% to 50%.
●Latch on fault with visual and audible alarm that is menu selectable.
●Power bar graph with last cycle memory.
●High-resolution graphic LCD with a multilingual menu for quick, easy programming.
...

Send Inquiry

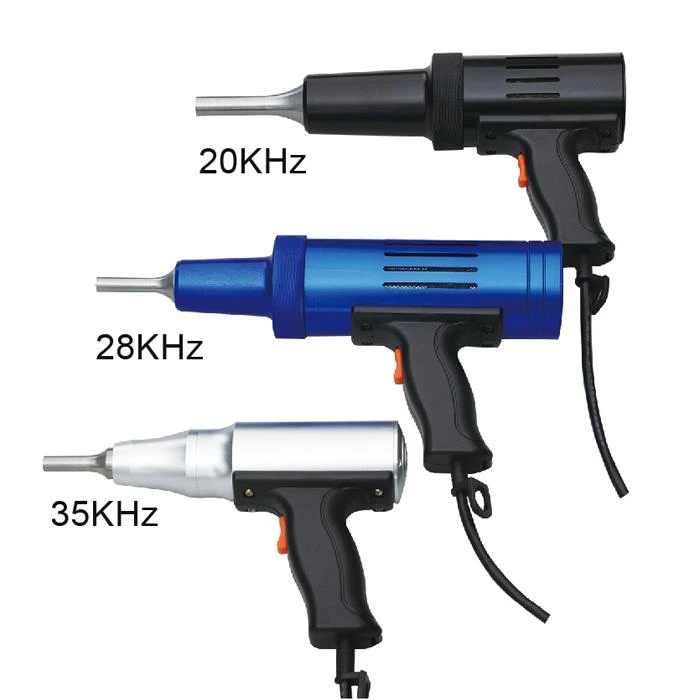

Hand held Ultrasonic Welding Machine for Spot, Rivet and Embossing Weld

Features

Amplitude adjustment in 1% increments from 100% to 50%.

Latch on fault with visual and audible alarm that is menu selectable.

Power bar graph with last cycle memory.

High-resolution graphic LCD with a multilingual menu for quick, easy programming.

Real time in cycle menu displays frequency, power and time.

100% digital controls of all power supply functions and parameters.

Ultrasonic overload protection, with fault indication for ease of troubleshooting. The overload power limit is based on true RMS power output level.

Patented  pulse-width modulation design delivers power more efficiently with substantially less stress on electrical components for superior performance, reliability and extended life.

Line voltage regulation compensates for line fluctuations assuring consistent amplitude.

Load regulation provides constant ultrasound amplitude automatically regardless of power draw. The ultrasonic output amplitude level is held to within 1% to provide weld process consistency.

Highest power density per unit volume. Most power in the smallest package at highest duty cycle.

Item

Handheld ultrasonic plastic welding machine

frequency(KHz)

35

28

28

28

20

Power(W)

500

300

700

800

900

Welding Head

<10mm

<10mm

<10mm

<12mm

<12mm

Dia.Of Shell

51mm

64mm

The handle    Size

100mmx45mmx32mm

Weight

0.5kg

0.5kg

0.5kg

1.2kg

1.2kg

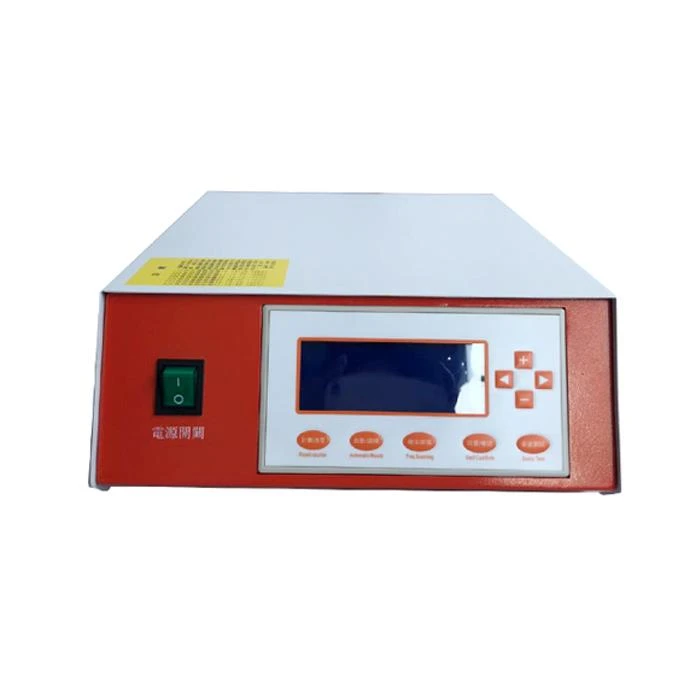

Digital    generator

-

Analog    generator

Application

ABS,HIPS,PMMA,MPPO

PVC,PP,PE

Aldehyde-resin,pc

PC,PSU,PA

Nylon,PE, PBT
