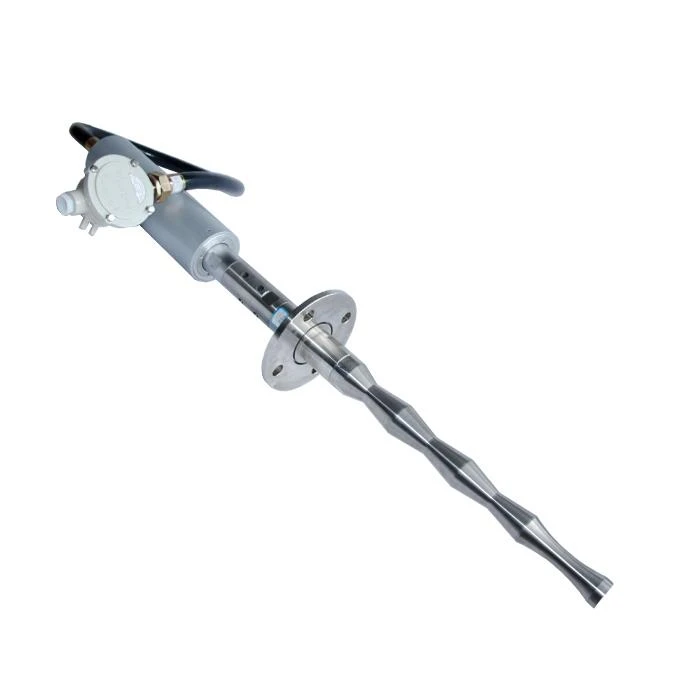

Ultrasonic Nanoparticles Dispersion Equipment
The core content of nanotechnology is how to solve the agglomeration problem of nanoparticles. Since the nanoparticles themselves are very easy to agglomerate, it is very difficult to obtain a single dispersed nanoparticle. How to uniformly disperse the nanoparticles into the matrix is the key technology of nanotechnology.
Our ultrasonic products use ultrasonic ultrasonic cavitation to disperse agglomerated particles. It is to place the desired particle suspension (liquid) into a super-strong sound field and treat it with appropriate ultrasonic amplitude and duration of action.
Type | ZYS-100 | ZYS-150 | ZYS-200 | ZYS-300 |
Power | 1000W | 1500W | 2000W | 3000W |
Frequency | 20Khz | |||
Amplitude/power adjustment range | 50-100% | 20-100% | ||
Temperature | ＜100℃ | |||
Volume of reactor | 5-10L | |||
Standard Spec | Ultrasonic device + Digital Generator | |||
Optional configuration | Stainless steel reactor, Remote communication interface, flow meter | |||
1) Intelligent control technology, stable ultrasonic energy output
2) Automatic frequency tracking mode, ultrasonic transducer working frequency real-time tracking
3) Multiple protection mechanisms to extend service life
4) Energy focus design, high output density, improve efficiency
5) Support static or cyclic working mode
Machine Parts
Name: ultrasonic part
Brand: ZY
Original: CHINA
Complete set of equipment core components
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing in our factory.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas or video guide.
