Ultrasonic Nanomaterials Dispersion Equipment for nanodispersion of new materials, chemical extraction, biodiesel production, organic synthesis, treatment of microorganisms, degradation of pollutants, chemical reaction rate and yield, catalyst effects, biodegradation treatment, etc., promotes intense interaction between particles Increase chemical reaction rate, shorten reaction time, and reduce reaction conditions
Due to the cavitation in the liquid, the micro-jet, vibration and other phenomena are formed. On the microscopic level, the suspended particles in the liquid act as a high-speed stirring, dispersing, breaking and separating.
Type | ZYS-100 | ZYS-150 | ZYS-200 | ZYS-300 |
Power | 1000W | 1500W | 2000W | 3000W |
Frequency | 20Khz | |||
Amplitude/power adjustment range | 50-100% | 20-100% | ||
Temperature | ＜100℃ | |||
Volume of reactor | 5-10L | |||
Standard Spec | Ultrasonic device + Digital Generator | |||
Optional configuration | Stainless steel reactor, Remote communication interface, flow meter | |||
1) Intelligent control technology, stable ultrasonic energy output
2) Automatic frequency tracking mode, ultrasonic transducer working frequency real-time tracking
3) Multiple protection mechanisms to extend service life
4) Energy focus design, high output density, improve efficiency
5) Support static or cyclic working mode

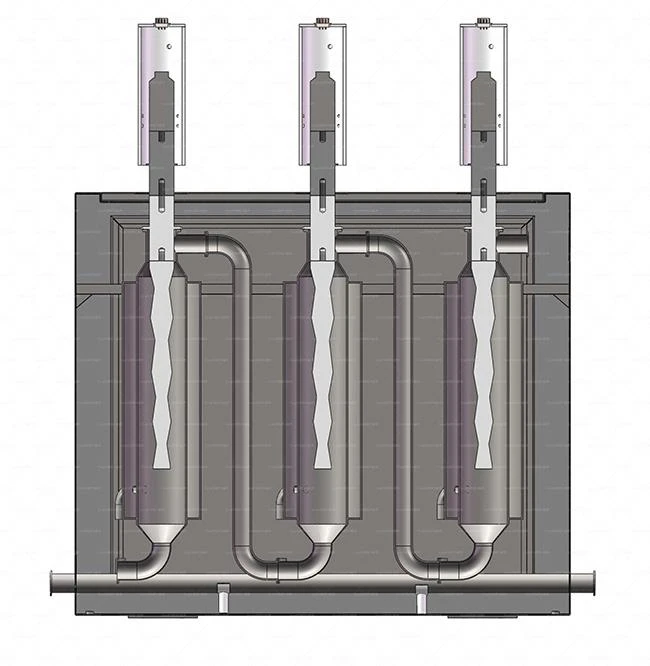

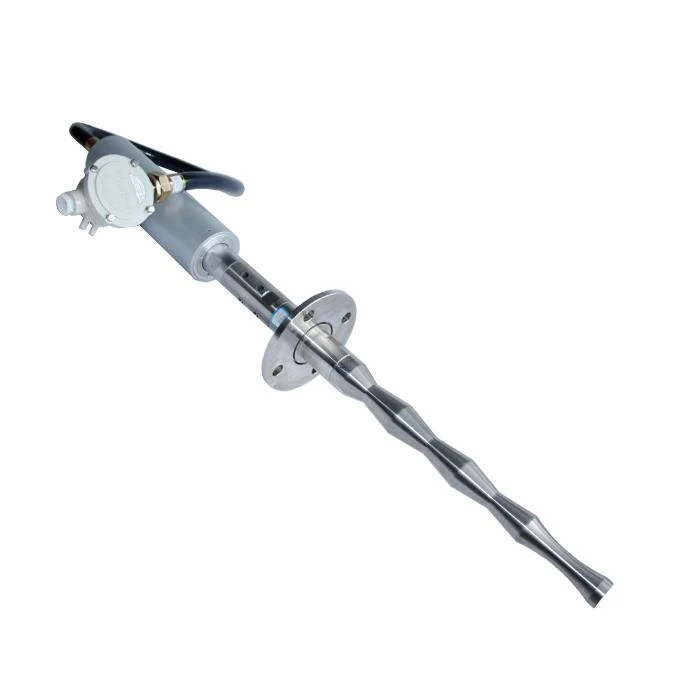

Machine Parts of Ultrasonic Nanomaterials Dispersion Equipment
Name: ultrasonic part
Brand: ZY
Original: CHINA
Complete set of equipment core components
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing in our factory.

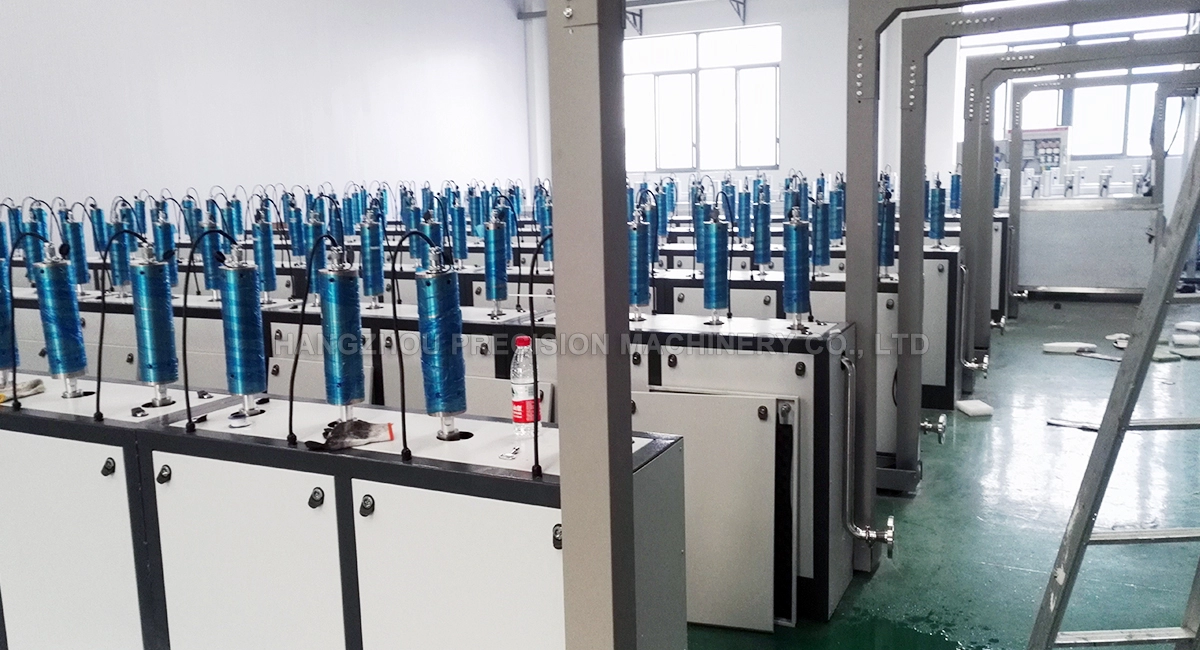

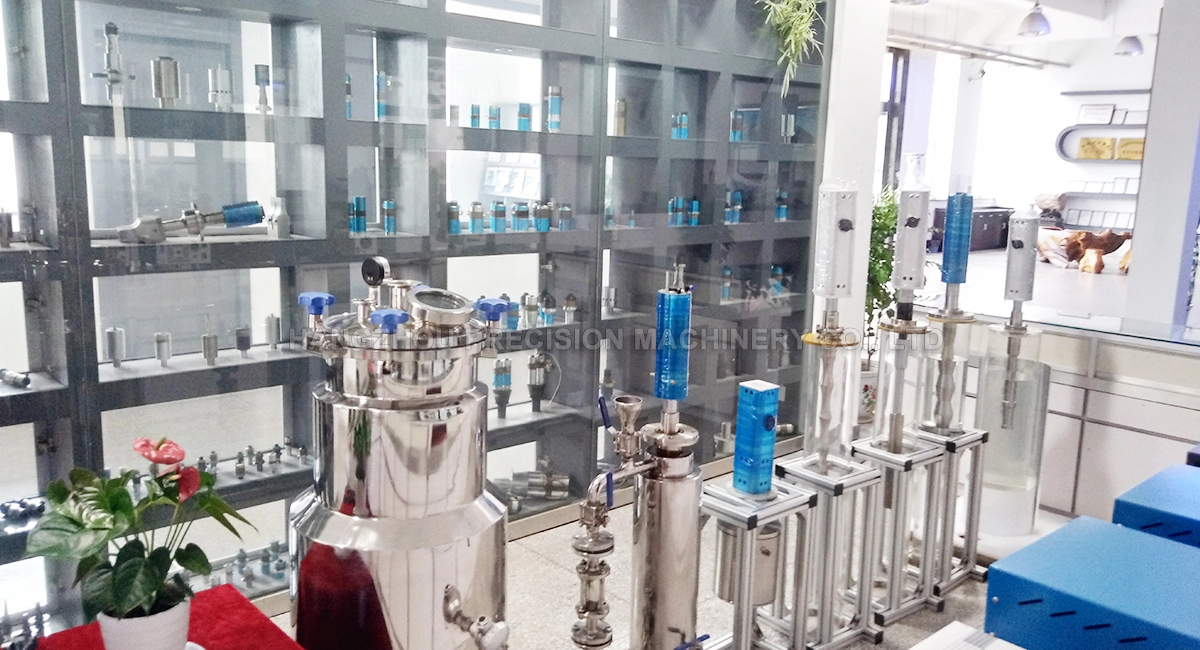

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas or video guide.
