20Khz 1000W-3000W for liquid powder Ultrasonic Nano Material Disperser
Ultrasonic Nano Material Disperser has many applications in liquid processing, such as homogenization, cell division, sonochemistry, degassing or extraction.
Using power ultrasonic to apply high shear and strong stress to liquids, powders, liquid mixtures, and slurries is an efficient and energy-efficient method. This makes it a powerful alternative to high-shear mixer machines, high-pressure homogenizers, and stirred-bead mills.
Ultrasonic Nano Material Disperser equipment is used as laboratory mixer, high-shear mixing equipment, full-size in-line homogenizer or particle mill in China.
These applications include: mixing, nano dispersing, reducing particle size, extraction and chemical reactions. Our equipment is supplied to industries such as nanomaterials, paints and pigments, food and beverages, cosmetics, chemicals and fuels. Please read more about our equipment and applications, or contact us to add the correct ultrasonic processing system to your production process.

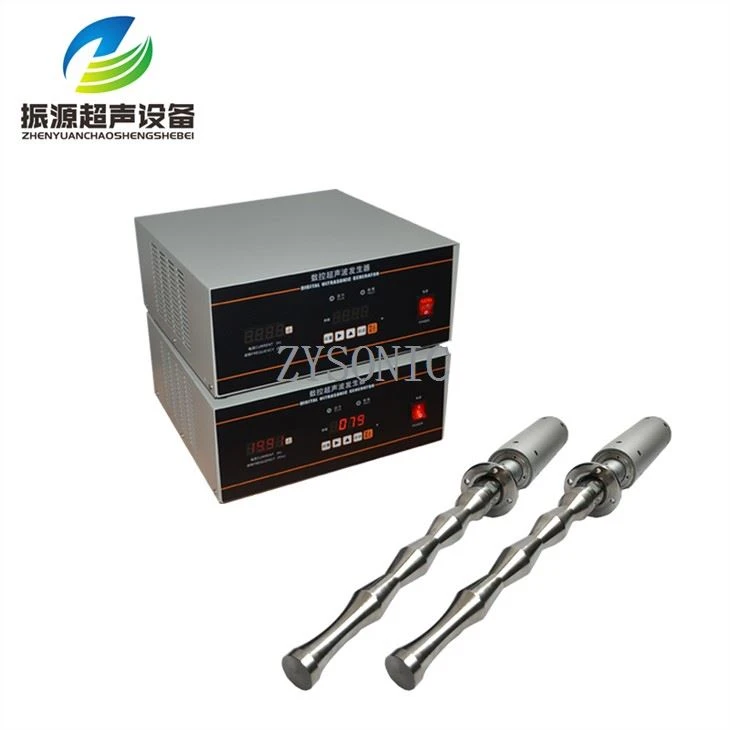

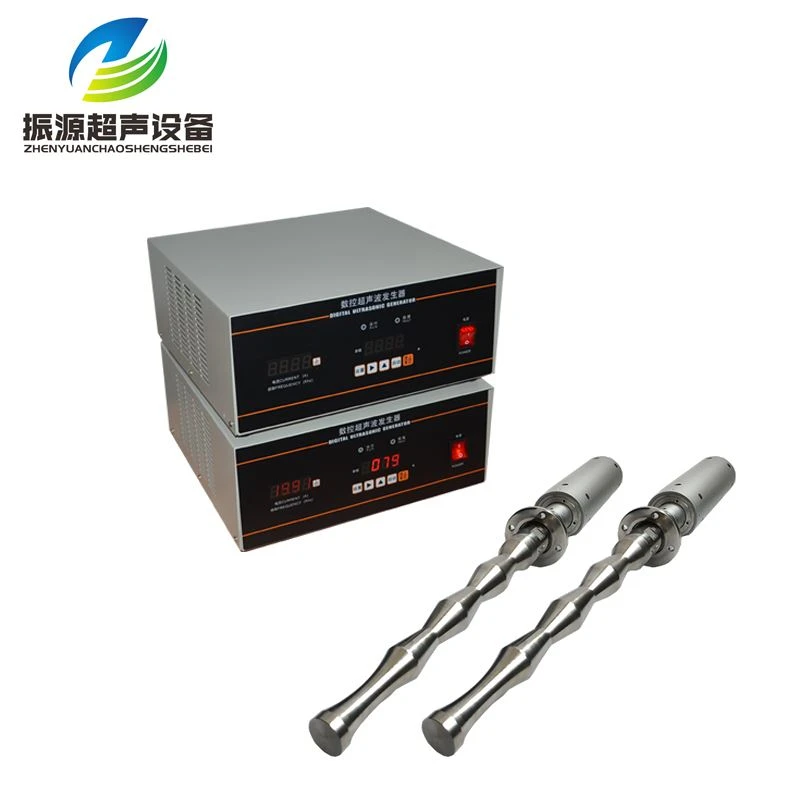

Ultrasonic Nano Material Disperser
The following sonochemical effects can be observed in chemical reactions and processes:
1. Increase reaction speed
2. Increase response output
3. More efficient energy use
4. Performance improvement of phase transfer catalyst
5. Avoid phase transfer catalysts
6. Activated metals and solids
7. Increase the reactivity of reagents or catalysts
8. Improve particle synthesis
9. Nanoparticle coating
10. Sonochemical conversion reaction pathway
Type | ZYS-100 | ZYS-150 | ZYS-200 | ZYS-300 |
Power | 1000W | 1500W | 2000W | 3000W |
Frequency | 20Khz | |||
Amplitude/power adjustment range | 50-100% | 20-100% | ||
Temperature | <100℃ | |||
Volume of reactor | 5-100L | |||
Standard Spec | Ultrasonic nano dispersion + Digital Generator | |||
Optional configuration | Stainless steel reactor, Remote communication interface, flow meter | |||

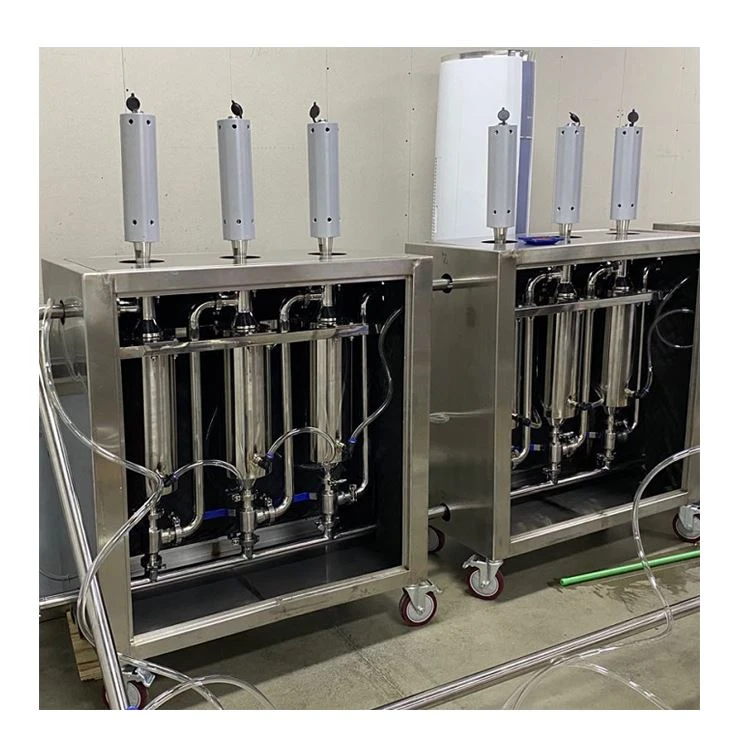

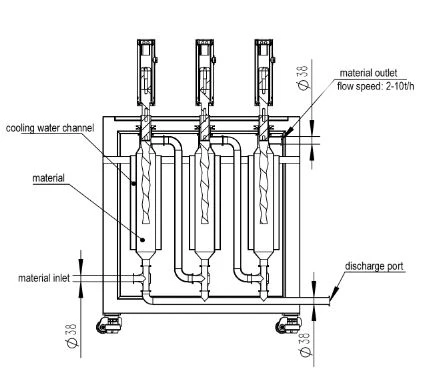

Ultrasonic Nano Material Disperser
