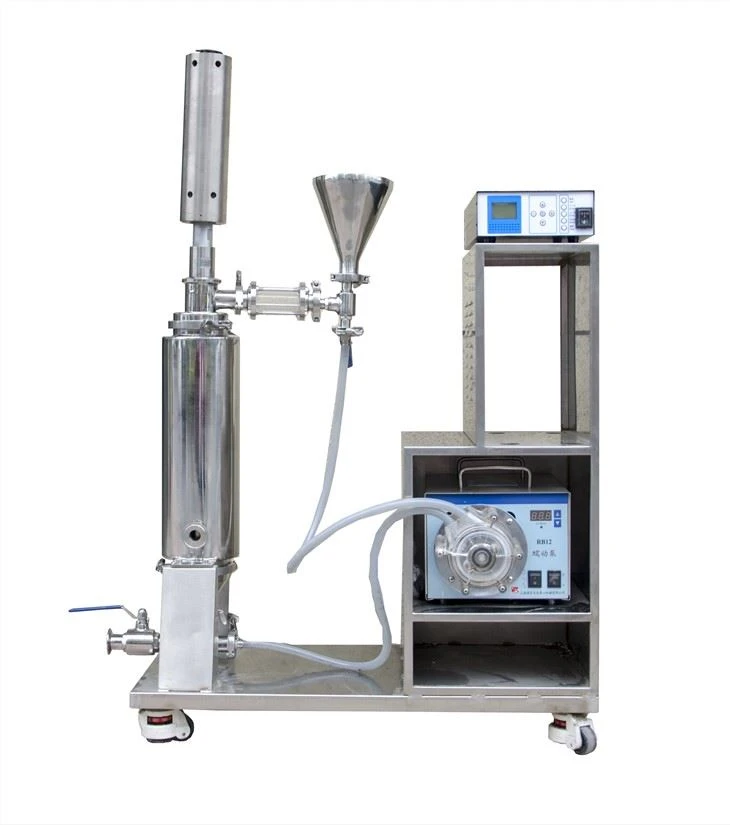

Ultrasonic molecular material circulation dispersion system
It is composed of ultrasonic equipment (ultrasonic rod and ultrasonic generator) combined with reactor, circulating pump and connecting pipe. The continuous flow of dispersed materials in a circulation system can be compared with a pilot experiment. The data of dispersion time and effect can be obtained before large-scale production, which provides valuable verification data for industrial production.
Specification:
The dispersive circulator can directly add the materials to be processed by customers in the laboratory for cyclic ultrasound, and carry out sampling detection in different time periods, and compare the impact of different times on materials under the same ultrasonic energy treatment. Can also be used in the same time under the action of different ultrasonic energy to get the material difference. In this set of ultrasonic pilot cycle machine, the final action time and ultrasonic energy can be obtained, which can provide precious data for later industrial production.
The working principle of ultrasonic molecular material circulation dispersion system is as follows
It uses the cavitation effect of ultrasound. Ultrasonic cavitation effect means that under the strong ultrasonic effect, a large number of bubbles will be produced in the liquid. The small bubbles will grow and increase gradually with the ultrasonic vibration, and then burst and split suddenly, and the separated bubbles will grow and burst continuously. When these small bubbles collapse rapidly, high temperature and high pressure are generated in the bubbles, and strong local shock waves are generated in the liquid near the bubbles because the liquid around the bubbles rushes into the bubbles at a high speed, and the local high temperature and high pressure are also formed, resulting in ultrasonic crushing and emulsification.
Technical parameter:
Frequency: 20KHz
Input: 220V
Amplitude / power adjustable range: 20-100%
Equipment handling capacity: 5-10L
Material of reactor: Stainless steel (304 or 316L)
Design temperature:＜100℃
Circulation speed:0-1t/h
Appearance size:1x1.5x0.5 m3
Standard configuration: 20k1000-3000w sonochemistry + circulating reactor (with cooling jacket) + pump
Optional configuration :Temperature detection + pressure detection
The performance is a little bit:
1. Working mode: continuous or intermittent
2. Equipment installation: the flange is fixed to the customer's existing container, which is simple and convenient
3. Amplitude range: 10-70 μ M
4. Temperature range: 0-80 ℃, including cooling water jacket for cooling materials
5. Matching with CNC case, real-time tracking frequency to ensure matching working state.
6. The containers of different sizes can be customized according to the production requirements of customers to meet the production requirements.
