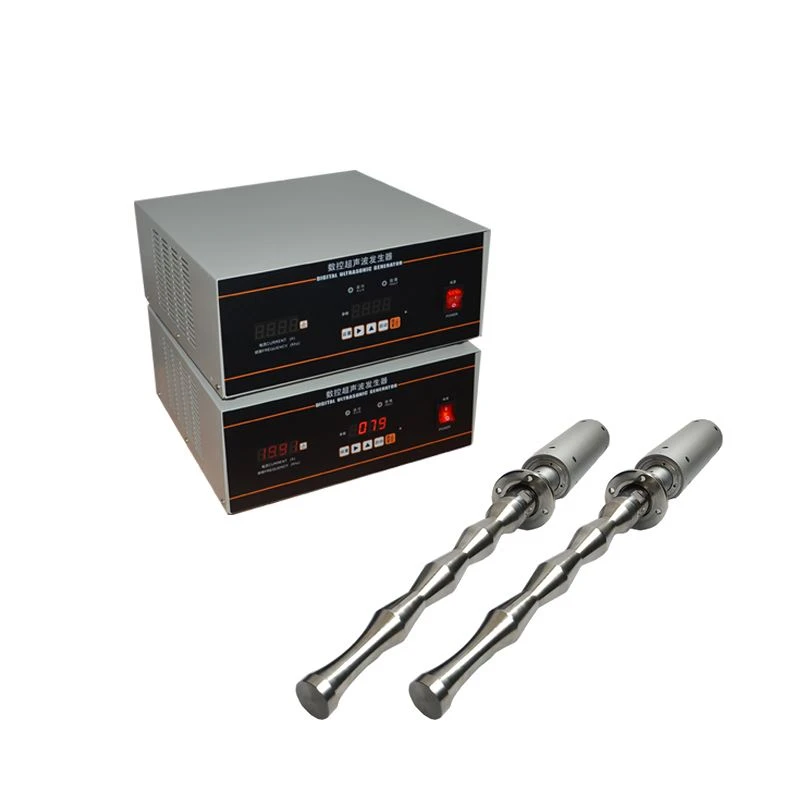

High Power Ultrasonic Stirring And Dispersing Machine For Nano Materials
It uses the cavitation effect of ultrasound. Ultrasonic cavitation effect means that under the strong ultrasonic effect, a large number of bubbles will be produced in the liquid. The small bubbles will grow and increase gradually with the ultrasonic vibration, and then burst and split suddenly, and the separated bubbles will grow and burst continuously. When these small bubbles collapse rapidly, high temperature and high pressure are generated in the bubbles, and strong local shock waves are generated in the liquid near the bubbles because the liquid around the bubbles rushes into the bubbles at a high speed, and the local high temperature and high pressure are also formed, resulting in ultrasonic crushing and emulsification.
Technical parameter of High Power Ultrasonic Stirring And Dispersing Machine For Nano Materials
Equipment model HSS20-1000 HSS20-1500 HSS20-2000 HSS20-3000
Power (W) 1000W 1500W 2000W 3000W
Frequency (kHz) 20KHz
input 220V
Amplitude / power adjustable range 20%-100%
Design temperature ＜100℃
Recommended reactor volume 5-10L
Standard configuration Ultrasonic host +Digital Generator
Optional configuration Reactor + remote communication interface + computer graphic display and control + flow display and control
