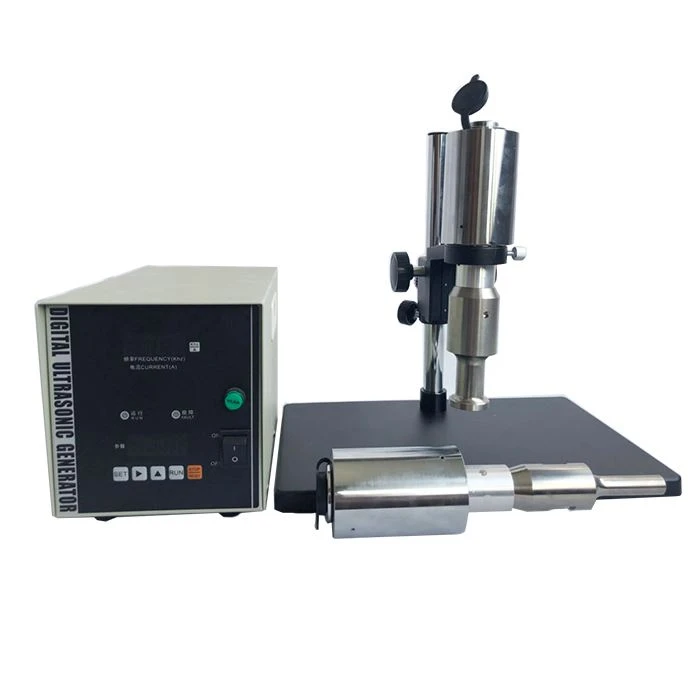

Customized continuous production ultrasonic disperser
It is to convert electric energy into sound energy through transducer. This kind of energy will be transformed into dense small bubbles through liquid medium. These small bubbles will crack rapidly and produce energy like small shells, which will play the role of breaking cells and other substances.
Customized continuous production ultrasonic disperser
| Frequency | 40Khz | 28Khz | 20Khz |
| Power | 500W | 500W | 1000W |
| Amplitude | 20-30microns | 30-40microns | 100-110microns |
| Power Adjust | 50-100% | ||
| Horn Diameter | 8mm | 14mm | 16mm |
| others can be customized | |||
| Generator | Digital Type | Digital Type | Digital Type |
| Replaceable TIPS | NO | YES, 3PCS | YES, 3PCS |
| Optional Accessories | Tank, Experimental grade mixier, pump, or others | ||

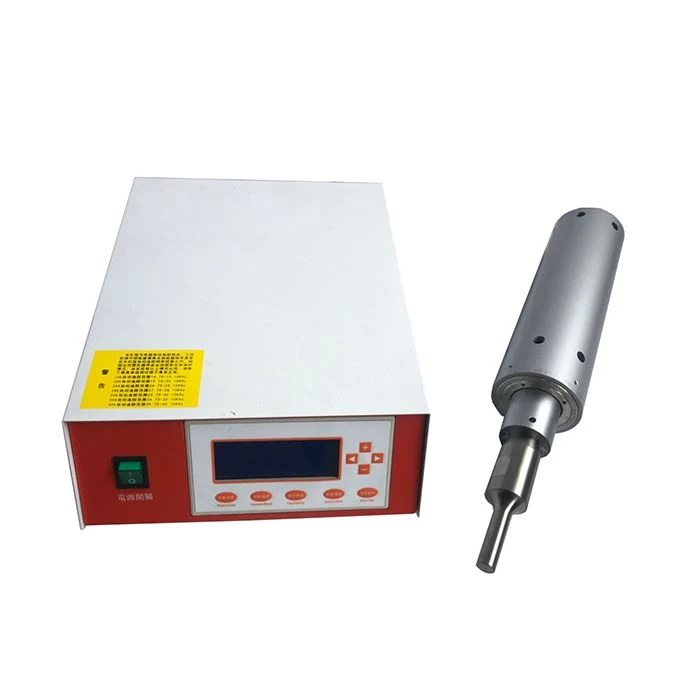

Also known as ultrasonic cell crusher, ultrasonic cell lyser, ultrasonic crusher. Ultrasonic cell crusher is composed of ultrasonic generator and ultrasonic vibrator (ultrasonic vibration system).
The principle is to convert electric energy into sound energy through transducer. This kind of energy will be transformed into dense small bubbles through liquid medium. These small bubbles will crack rapidly and produce energy like small shells, which will play the role of breaking cells and other substances. Ultrasound is a kind of elastic mechanical wave in the material medium. It is a wave form. Therefore, it can be used to detect the physiological and pathological information of human body. It is also a form of energy. When a certain dose of ultrasound propagates in the organism, through the interaction between them, the function and structure of organism can be changed, that is, ultrasonic biological effect. The effects of ultrasound on cells mainly include thermal effect, cavitation effect and mechanical effect.
