Brief Introduction

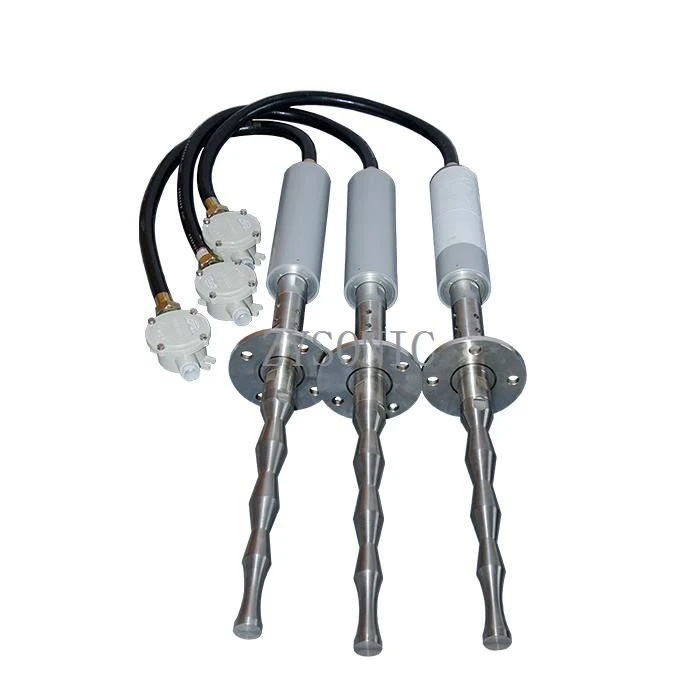

Ultrasonic Extraction Equipment For Chinese Herb Extraction is a multipurpose instrument which is using strong ultrasonic to produce cavitations, effect in liquid. It is able to crush animal cells, plant cells, virus cells, and also used for emulsification, separation, homogenization, extraction, deforming, cleaning and accelerating chemical reaction etc.
Product Details:
Place of Origin: | CHINA |
Brand Name: | Zhenyuan Sonic |
Certification: | CE |
Detailed Product Description:
Name: | Ultrasonic Extraction | Frequency: | 20Khz |
Power: | 2000W | Weight: | 35Kg |
Tip: | Different Size Optional | Materials: | Titanium |
Power Supply: | Digital Mode | Power Adjust: | Can Be Changed From 10% To 99% |
Amplitude: | Can Be Changed From 10% To 99% | Tuning: | Auto Tuning |
Capacity: | 2000ml - 5000ml |
Specifications:
Frequency | 28±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz |
Power | 500 W | 1000 W | 1500 W | 2000 W | 3000 W |
Voltage | 220±10% V | 220±10% V | 220±10% V | 220±10% V | 220±10% V |
Temperature | 100 ℃ | 150 ℃ | 300 ℃ | 300 ℃ | 300 ℃ |
Pressure | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
Intensity of sound | ＞10 W/cm² | ＞10 W/cm² | ＞30 W/cm² | ＞40 W/cm² | ＞60 W/cm² |
Max Capacity | ＞ 100ML/Min | ＞ 5 L/Min | ＞ 15 L/Min | ＞ 20 L/Min | ＞ 30 L/Min |
Material Of Tip Head | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Key Feature:
1.No aerosols produced, enhance biological safety; used in sterile operation (eg: mycobacterium, hepatitis B virus, hepatitis A virus, flu virus, SARS).
2.Eliminating samples cross contamination; across the centrifugal tube to interrupt chromosome, crush cells.
3.Eliminating many trifles like holding, fixing probe; with sound eliminating pressure equipment.
4.Effectively prevent sample foam produced.
5.English version liquid crystal monitor; with power fine adjustable, gradually fine adjusting 5W per time.
6.TOPTION adopting periodically pulse to crush cells; time of pulse starting and ending is adjustable.
7.Handling wide range of samples.
8.Can use standard disposable containers.
9.Can process trace samples, minimum: 0.5ul.
10.Toption Non-touch Ultrasonic Disruption can process 4~32 samples at one time, choose the corresponding model.
11.Automatic continuous rotating centrifugal tube makes the ultrasonic energy distributed more equally.
12.With cooling water circulator, preventing reaction temperature over heat during the cell crushing process.
Application:
1.As a cell disruption/crusher
A cell disruption is the electrical energy through the transducer is converted to sound energy, this energy through the liquid medium and become a dense small bubbles, these small bubbles quickly burst, resulting in the same energy as small bombs, which play Broken cells and other substances.
2.Ultrasonic Emulsification
Ultrasonic emulsification refers to the ultrasonic energy, so that two (or more) immiscible liquid to form a uniform dispersion system, in which a liquid evenly distributed in another liquid to form an emulsion of the process.
