High-power ultrasonic effect on the crystallization of molten metal process, can significantly refine metal grain, homogeneous alloy composition, accelerate the bubble motion, significantly improve the metal material properties, such as strength, hardness, plasticity and toughness.

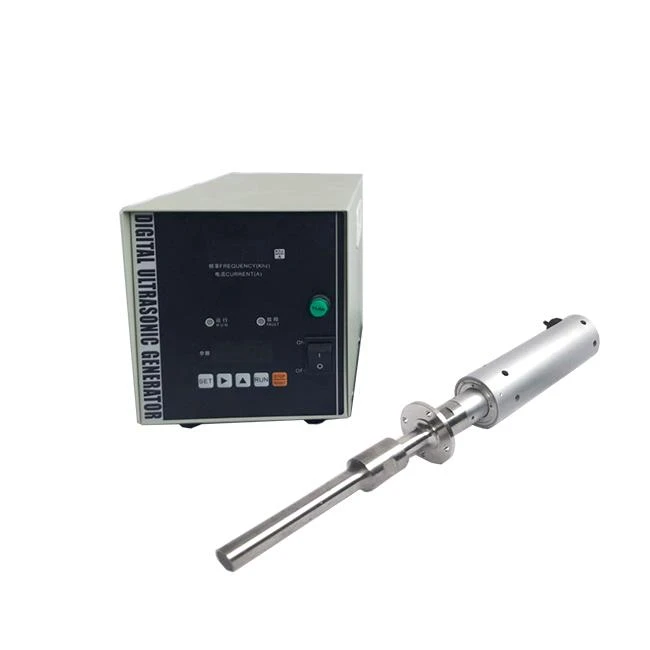

Ultrasonic Industrial Laboratory Molten Metal Treatment System
Frequency:20KHz
Power:2000w
input voltage:220v 50hz
max temperaturer:500-850(℃)
diameter of horn(probe):50mm
Ultrasonic generator: digital generator
Parameters:
Type | ZYL-205 | ZYL-210 | ZYL-215 | ZYL-220 | ZYL-230 | |
Power | 500W | 1000W | 1500W | 2000W | 3000W | |
Frequency | 20Khz | |||||
Amplitude/power adjustment range | 20-100% | |||||
Temperature | ＜800℃ | ＜850℃ | ||||
Electric Power | 220V 50Hz | |||||
Diameter of Horn | 30 mm | 50 mm | ||||
