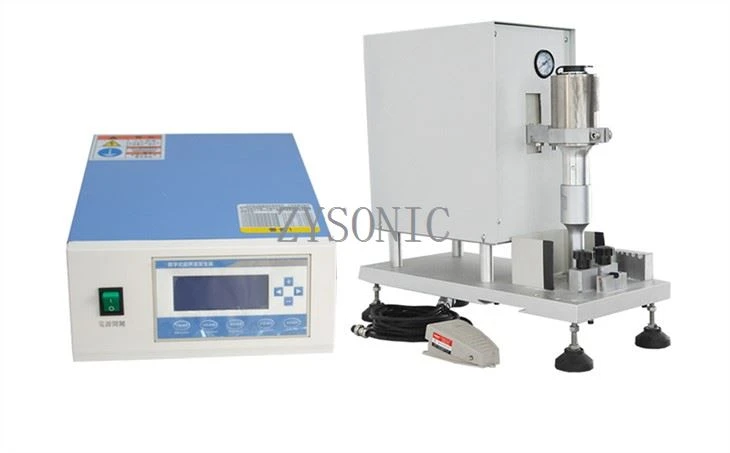

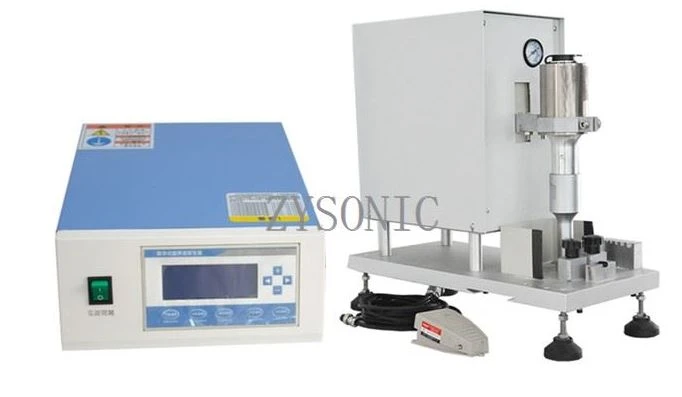

Ultrasonic Cable Stripping Machine
The ultrasonic energy transfers to the insulation on contact and de-compacts and liquefies the powder, which escapes from the end of the cable.Ultrasonic cable stripping machine is used for mineral insulated cable stripping equipment. Its clever use of ultrasonic energy to the role of the characteristics of both fire cable insulation slag shattered discharge, but also to protect the cable core does not suffer any harm. Design of the stripping machine is compact, reliable, high efficiency, high speed, low power consumption, can be adapted to a variety of mineral insulated cable stripping
The result is that all the powder in the stripped section is cleanly removed leaving the conductors completely untouched.
The whole action is completed in seconds (in the case of small cables in a fraction of a second).
All cable sizes can be accommodated from 2.0mm (0.04") to 12.0mm (or 0.45")
The machine is supplied with a ringing tool and a pair of electronic side cutting pliers for the smaller sizes.
1. Type:HSM-20
2. Frequency:20KHz
3. Digital Generator: 220V, 50Hz (others need transformer
4. Power: 1000W
5.Net Weight: 33 Kg
6. Working Speed: 0.5-2s
7. Cable Diameter:2-12 mm
7. Overall Size:
1) Main Device：220×470×470 mm
2) Power Supply: 360*330*150mm
Ultrasonic MI cables jacket end stripper can work on all cables and optical cables
with mineral isolated shells.
1. Fire retardant cable or mineral insulated cable manufacturers
2.Fireproof cable or mineral insulated cable construction unit or the use of units
3. Optical cable production units
4. Optical cable construction unit or the use of units
5. Thermocouple manufacturers
