Ultrasonic Converter Impendance Analyzer

It is characteristic of analyzer measurement and evaluation of piezoelectric ceramics, piezoelectric transducer, ultrasonic cleaning machine, ultrasonic welding machine, ultrasonic grinder, ultrasonic machining equipment and other devices, the device parameters and performance. Transducer impedance tester is characterized by easy to use, the combination of indicators and graphics, accurate parameters, low prices, strong guidance for production, etc.

Send Inquiry

Key Specifications/Special Features:

Description:

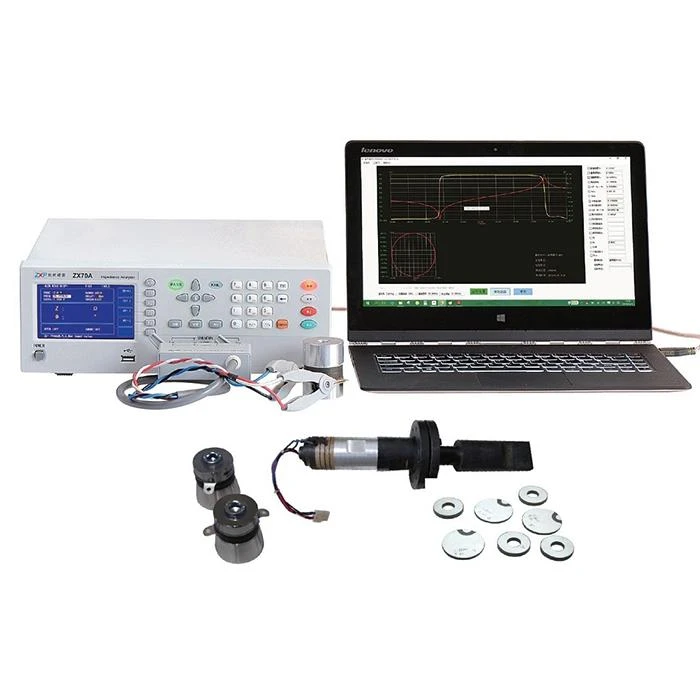

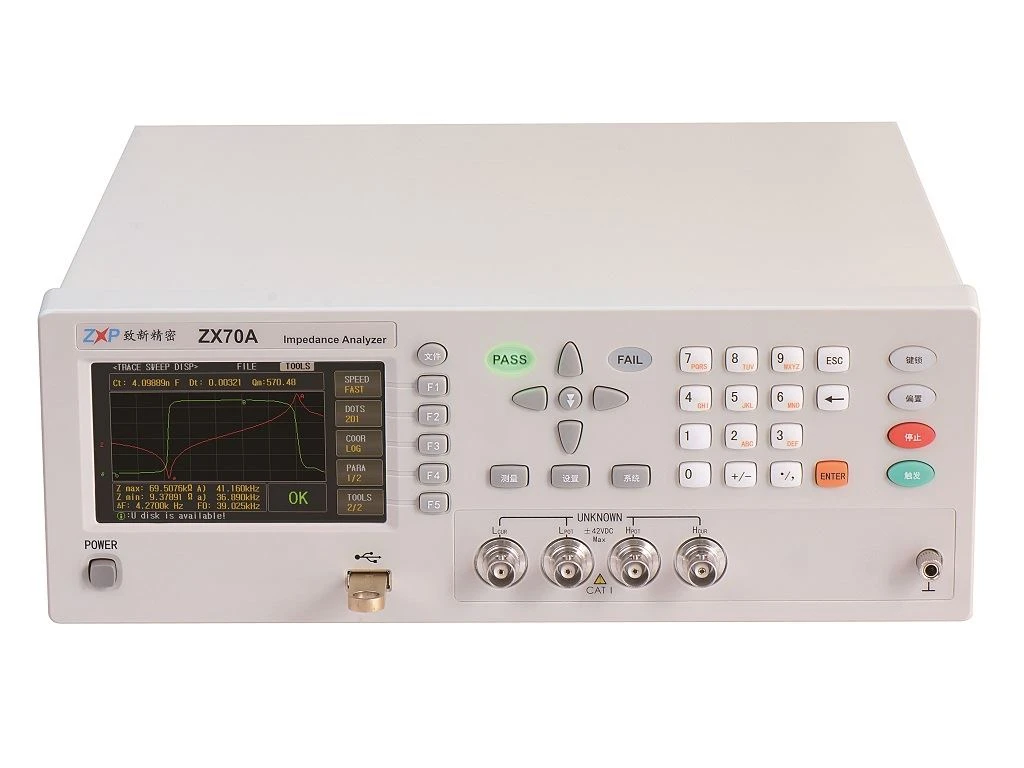

The new generation of ZX70A/ZX80A series impedance analyzers are mainly used for impedance analysis and testing of ferroelectric crystals, piezoelectric ceramics, piezoelectric crystals, ultrasonic transducers, etc., for frequency scanning and impedance measurement analysis of piezoelectric devices and devices. The value-for-money solution makes it quick and easy to test the parameters of a piezoelectric device.

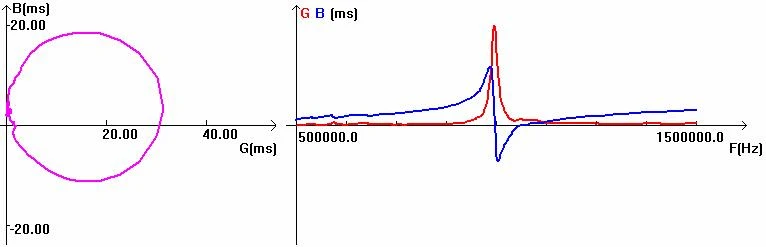

In addition to the computer scan analysis function, the ultrasonic impedance analyzer also provides the piezoelectric device impedance-frequency sweep curve analysis function directly on the instrument. This eliminates the need for customers to configure one computer per instrument. This method not only ensures the test efficiency, but also reduces the test cost and also facilitates the customer to use on the production line. At the same time, ZX70A/ZX80A series products use the principle of vector test. Its good measurement accuracy, wide frequency range and excellent stability can meet most of the measurement requirements of ultrasonic devices and materials.

The ZX70A/ZX80A series ultrasonic impedance analyzer realizes scanning graphics on the instrument, and can also directly copy the on-screen display graphics and test data of the instrument to the USB flash drive. At the same time, the instrument comes with a computer software interface, the standard version does not need to be purchased separately.

ZX70A/ZX80A series ultrasonic impedance analyzer is equipped with RS232C, USB DEVICE, USBHOST, HANDLER interface, and optional RS485 interface, GPIB interface, which can easily carry out data communication and remote control with PC to form an automatic test system.

Specifications:
High-speed impedance analyzer for high-speed test systems

● 0.1% test accuracy, fast measurement speed (100 times / sec)

●Comparable with international brand manufacturers test data

●Keyboard lock function, power-down data protection function

●Simplified Chinese and English operation interface

● Impedance frequency response characteristics scanning function, analysis function

●Support U disk upgrade instrument software

●Instrument 50 groups, U disk 500 group test files, can be called at any time

● Rich interface, RS232C, USB DEVICE, HANDLER, GPIB (optional)

Ultrasonic Converter Impendance Analyzer
