The ultrasonic nano material dispersion utilizes the dispersion effect of ultrasonic waves in the liquid to cause cavitation of the liquid, thereby breaking solid particles or cell tissues in the liquid.
ultrasonic nano material dispersion is a versatile and versatile instrument for ultrasonic treatment of substances by using strong ultrasonic waves in liquids. It can be used for the crushing of animal and plant tissues, cells, bacteria and spores. To emulsify, separate, disperse, homogenize, extract, degas, clean and accelerate chemical reactions. The machine is widely used in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, medicine, pharmaceuticals and other fields of teaching, research and production.
principle
The ultrasonic cell pulverizing apparatus is composed of an ultrasonic vibration component and an ultrasonic dedicated driving power source (ultrasonic generator).

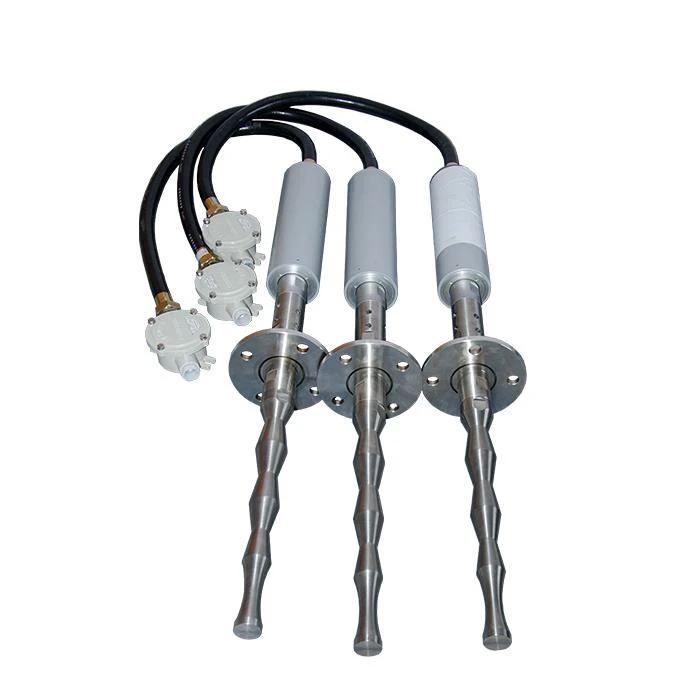

The ultrasonic vibration component mainly includes an ultrasonic transducer, an ultrasonic horn, and an ultrasonic tool head for generating ultrasonic vibration, and the vibration energy is emitted into the liquid. The transducer converts the input electrical energy into mechanical energy, ie ultrasonic. Its manifestation is that the transducer moves back and forth in the longitudinal direction, and the amplitude is generally several micrometers.
Due to the insufficient amplitude, the ultrasonic transducer is connected to the horn, and the amplitude is amplified according to the design, the reaction solution and the ultrasonic transducer are isolated, and the entire ultrasonic vibration device is also fixed. The tool head is connected to the horn, and the horn transmits ultrasonic energy vibration to the tool head, and the ultrasonic energy is emitted from the tool head into the chemical reaction liquid.
Characteristics
Model | ZYS-500 | ZYS-1000 | ZYS-1500 | ZYS-2000 | ZYS-3000 |
Frequency | 20±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz |
Power | 500 W | 1000 W | 1500 W | 2000 W | 3000 W |
Voltage | 220±10% V | 220±10% V | 220±10% V | 220±10% V | 220±10% V |
Temperature | 150 ℃ | 150 ℃ | 300 ℃ | 300 ℃ | 300 ℃ |
Pressure | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
Intensity of sound | ＞10 W/cm² | ＞10 W/cm² | ＞30 W/cm² | ＞40 W/cm² | ＞60 W/cm² |
Max Capacity | ＞ 2 L/Min | ＞ 5 L/Min | ＞ 15 L/Min | ＞ 20 L/Min | ＞ 30 L/Min |
Material Of Horn | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
It has two major types of products, laboratory and industrial, and various models (power 50W-3000W) to meet the needs of different customers.
Energy conversion efficiency is high, reaching more than 80%.
Ultrasonic equipment has stable amplitude, long working time and a 2.5 times larger radiation area than conventional tool heads.
Ultrasonic digital control power supply, full digital circuit control, strong anti-interference ability.
The frequency and power can be monitored in real time, the power bin is adjustable, and the automatic alarm protection function is provided, which is easy to operate.
The experimental ultrasonic sonic chemical equipment is mainly used for laboratory test or small-scale production, with high frequency, small volume, light weight, convenient carrying, and real-time monitoring of power frequency and power adjustment.
